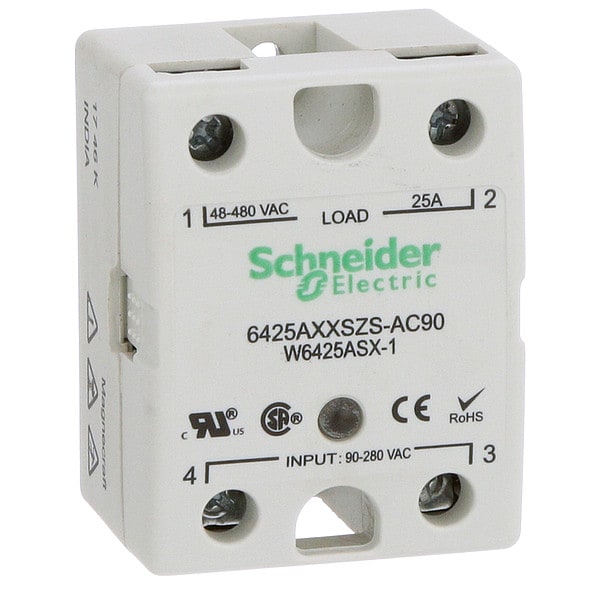

Schneider Electric Solid State Relay, 90 to 280VAC, 25A 6425AXXSZS-AC90

Solid State Relay, 90 to 280VAC, 25A (Discontinued)

  • Mfr # 6425AXXSZS-AC90
  • Zoro # G1663207
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6425AXXSZS-AC90
Zoro #
G1663207
UPC #
-
Country of Origin
Multiple

Dimensions

Body Width - Relay
1.74 in
Overall Height - Relay
1.4 in
Body Height - Relay
1.4 in
Body Depth - Relay
2.3 in
Depth
2.30 in (58.4 mm)
Height
1.39 in (35.3 mm)
Width
1.85 in (47.1 mm)
Body Height
1.38 in
Body Depth
2.29 in
Overall Depth
2.29 in
Body Width
1.85 in

Details

Item
Solid State Relay
Finger Safe
Yes
Heat Sink
Not Included
Input or Control Voltage Range
90 to 280VAC
Max. Output Amps Without Heat Sink
12.0 A
Contact Form - Relay
SPST-NO
Max. Output w/Heat Sink
25A
Input Voltage
90 to 280V AC
Input Power Consumption (Burden)
0.2 to 1.0VA
Switch Type
SCR
Case Color
Gray
Output or Controlled Voltage Range
48 to 480V AC
Relay Turns On At
Zero Crossing
Standards
CE Certified, CSA Certified, UL Listed
Phase
1
Mounting - Relay
Surface
Max. Output Amps w/Heat Sink
25 A
Voltage Output
48 to 480VAC
Input or Control Voltage
90 to 280V AC
Turns On At
Zero Cross
Mounting
Surface
Item - Relay
Solid State Relay
Mounting Style
Panel
Electrical Connection
Screw Clamp
Electrical Phase
Single
Minimum Operating Temperature
-40 Degrees F
Output Voltage Range
48 to 530V AC
Maximum Output Current with Heat Sink
25 A
Series
6000 Series
Status Indicator
Green LED Indicator
Drop Out Voltage
1.6V DC
Maximum Operating Temperature
176 Degrees F
Switch Component Type
SCR
Output Switching Mode
Zero Crossing
Current Type
AC
Dielectric Strength
4,000V
Power Factor
1
Weight
3.05 oz
Insulation Resistance
1,000 megaohm
Voltage Type
AC Output
Input Current
11 mA; 20 mA
IP Rating
IP20
Maximum Output Current without Heat Sink
12 A
Switch Configuration
Form A
Response Time
0.1 msec
Contacts Type and Composition
NO
Control Circuit Voltage
90...280 V AC
Connections Terminals
Input screw clamp terminal, 1; Output screw clamp terminals, 1
maximum output current
25 A AC
Holding Current
120 mA
Network Number of Phases
1 phase
Input Current Limits
11 mA at 120 V AC typical; 20 mA at 240 V AC
Maximum Peak Voltage
800 V
Ambient Air Temperature for Storage
-40 to 257°F (-40 to 125°C)
Switching Device
SCR output; Zero voltage switching
DV/dt
300 V/ms off-state at maximum rated voltage
Local Signalling
for input status 1 LED (green)
Protection Technology
Current limiter
Leakage Current
10 mA at off-state
Range
Legacy
Voltage Drop
<1.6 V on-state AC
Ambient Air Temperature for Operation
-40 to 176°F (-40 to 80°C)
Product Certifications
UL; CSA; CE
Insulating Resistance
1 GΩ
Surge Current
250 A 16.6 ms
Must Release Voltage
10 V
Maximum I²t for fusing
312 A².s 8.3 ms
Thermal Resistance
1.02°C/W
Input Impedance
13000 Ohm
Screw Type
M3.5; M6
Switch Function
SPST
Output Voltage
48...530 V AC
Tightening Torque
10 lb.in for input; 20 lb.in for output
Maximum I²t for fusing
312 A².s 8.3 ms

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 11 mA; 20 mA, Input Voltage 90 to 280V AC, Maximum Output Current with Heat Sink 25 A, Maximum Output Current without Heat Sink 12 A, Output Switching Mode Zero Crossing, Output Voltage Range 48 to 530V AC, Standards CE Certified, CSA Certified, UL Listed, Switch Component Type SCR, Current Type AC, Electrical Phase Single, Finger Safe Yes, Mounting Style Panel, Switch Configuration Form A
