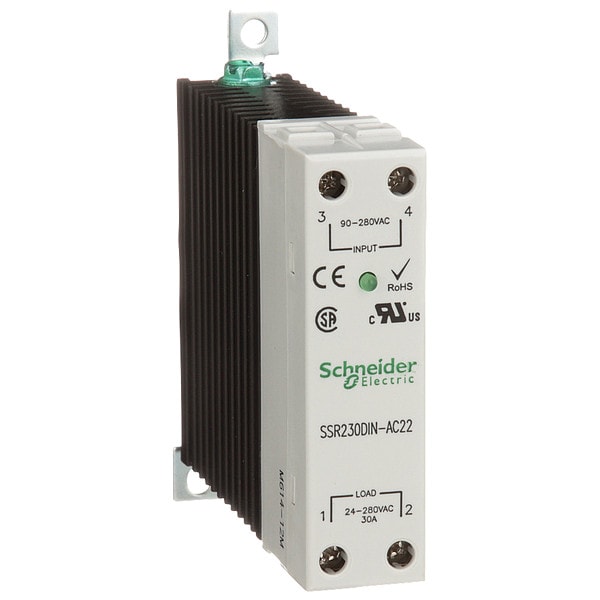

Schneider Electric Solid State Relay, 90 to 280VAC, 30A SSR230DIN-AC22

Solid State Relay, 90 to 280VAC, 30A (Discontinued)

  • Mfr # SSR230DIN-AC22
  • Zoro # G2380314
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SSR230DIN-AC22
Zoro #
G2380314
UPC #
-
Country of Origin
Mexico

Dimensions

Body Height - Relay
3.8 in
Body Width - Relay
3.15 in
Body Depth - Relay
0.88 in
Overall Height - Relay
3.8 in
Depth
3.15 in (80 mm)
Width
0.88 in (22.4 mm)
Height
3.85 in (97.7 mm)
Overall Depth
3.85 in
Body Depth
3.8 in
Body Height
3.15 in
Body Width
0.88 in

Details

Item
Solid State Relay
Contact Form - Relay
SPST-NO
Voltage Output
24 to 280VAC
Output or Controlled Voltage Range
24 to 280V AC
Includes
Integral Heat Sink
Mounting
DIN or Flange
Mounting - Relay
DIN Rail, Surface
Phase
1
Standards
CE Certified, CSA Certified
Max. Output w/Heat Sink
30A
Max. Output Amps w/Heat Sink
30 A
Turns On At
Zero Cross
Relay Turns On At
Zero Crossing
Switch Type
SCR
Heat Sink
Integral
Input Voltage
90 to 280V AC
Input or Control Voltage
90 to 280V AC
Case Color
Gray/Black
Input Power Consumption (Burden)
0.6 to 1.1VA
Input or Control Voltage Range
90 to 280VAC
Max. Output Amps Without Heat Sink
30.0 A Integral Heat Sink
Item - Relay
Solid State Relay
Finger Safe
Yes
Mounting Style
DIN Rail & Panel
Electrical Connection
Screw Clamp
Response Time
10 msec
Maximum Output Current without Heat Sink
30 A
Status Indicator
Green LED Indicator
Output Voltage Range
24 to 280V AC
Voltage Type
AC Output
Current Type
AC
Switch Configuration
Form A
Switch Component Type
SCR
Maximum Operating Temperature
176 Degrees F
Maximum Output Current with Heat Sink
30 A
Minimum Switching Voltage
110V AC
Output Switching Mode
Zero Crossing
Maximum Switching Voltage
18V AC
Series
SSRDIN Series
Minimum Operating Temperature
-40 Degrees F
Input Current
5 mA
Electrical Phase
Single
Drop Out Voltage
1.6V DC
Weight
9.88 oz
Switching Voltage
110 V AC turn-on; 18 V AC turn-off
Mounting Support
Panel; DIN rail
Ambient Air Temperature for Storage
-40 to 257°F (-40 to 125°C)
Switching Device
SCR output; Zero voltage switching
Maximum I²t for fusing
6000 A².s 8.3 ms
Network Number of Phases
1 phase
Input Current Limits
5 mA at 240 V AC typical
Leakage Current
10 mA at off-state
Range
Legacy
Product Certifications
CSA; CE
Output Voltage
24...280 V AC
Voltage Drop
<1.6 V on-state
Contacts Type and Composition
NO
Ambient Air Temperature for Operation
-40 to 176°F (-40 to 80°C)
Tightening Torque
0.6...0.7 N.m for input; 0.6...0.7 N.m for output
Connections Terminals
Input screw AWG 10); Output screw AWG 10)
Surge Current
1200 A 16.6 ms
Local Signalling
for input status 1 LED (green)
Maximum Peak Voltage
600 V
DV/dt
500 V/µs off-state maximum
Switch Function
SPST
Maximum I²t for fusing
6000 A².s 8.3 ms

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 5 mA, Input Voltage 90 to 280V AC, Maximum Output Current with Heat Sink 30 A, Maximum Output Current without Heat Sink 30 A, Output Switching Mode Zero Crossing, Output Voltage Range 24 to 280V AC, Standards CE Certified, CSA Certified, Switch Component Type SCR, Current Type AC, Electrical Phase Single, Finger Safe Yes, Mounting Style DIN Rail & Panel, Switch Configuration Form A, Voltage Type AC Output
