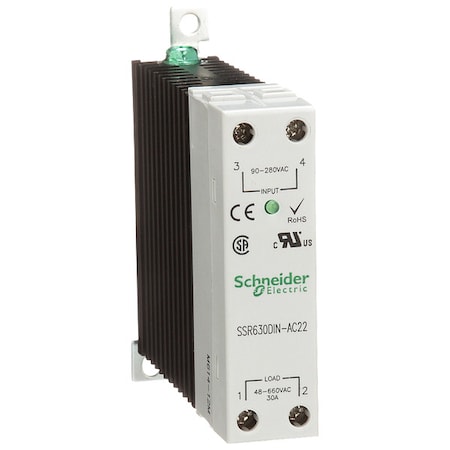

Schneider Electric Solid State Relay, 90 to 280VAC, 30A SSR630DIN-AC22

Solid State Relay, 90 to 280VAC, 30A (Discontinued)

  • Mfr # SSR630DIN-AC22
  • Zoro # G3019545
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SSR630DIN-AC22
Zoro #
G3019545
UPC #
-
Country of Origin
Mexico

Dimensions

Body Height - Relay
3.8 in
Body Depth - Relay
0.88 in
Body Width - Relay
3.15 in
Overall Height - Relay
3.8 in
Depth
3.15 in (80 mm)
Width
0.88 in (22.4 mm)
Height
3.85 in (97.7 mm)
Overall Depth
3.85 in
Body Width
0.88 in
Body Height
3.15 in
Body Depth
3.8 in

Details

Item
Solid State Relay
Max. Output w/Heat Sink
30A
Input or Control Voltage
90 to 280V AC
Turns On At
Zero Cross
Input Power Consumption (Burden)
0.6 to 1.1VA
Max. Output Amps Without Heat Sink
30.0 A Integral Heat Sink
Mounting
DIN or Flange
Contact Form - Relay
SPST-NO
Mounting - Relay
DIN Rail, Surface
Input or Control Voltage Range
90 to 280VAC
Output or Controlled Voltage Range
48 to 600V AC
Includes
Integral Heat Sink
Item - Relay
Solid State Relay
Heat Sink
Integral
Case Color
Gray/Black
Relay Turns On At
Zero Crossing
Voltage Output
48 to 600VAC
Input Voltage
90 to 280V AC
Finger Safe
Yes
Max. Output Amps w/Heat Sink
30 A
Standards
CE Certified, CSA Certified
Switch Type
SCR
Phase
1
Mounting Style
DIN Rail & Panel
Electrical Connection
Screw Clamp
Switch Configuration
Form A
Output Voltage Range
48 to 660V AC
Electrical Phase
Single
Maximum Output Current without Heat Sink
30 A
Switch Component Type
SCR
Status Indicator
Green LED Indicator
Response Time
10 msec
Maximum Operating Temperature
176 Degrees F
Voltage Type
AC Output
Minimum Operating Temperature
-40 Degrees F
Output Switching Mode
Zero Crossing
Current Type
AC
Maximum Switching Voltage
18V AC
Maximum Output Current with Heat Sink
30 A
Minimum Switching Voltage
110V AC
Weight
9.88 oz
Drop Out Voltage
1.6V DC
Input Current
5 mA
Series
SSRDIN Series
Leakage Current
1 mA at off-state
Local Signalling
for input status 1 LED (green)
Switch Function
SPST
Ambient Air Temperature for Operation
-40 to 176°F (-40 to 80°C)
Surge Current
1200 A 16.6 ms
Range
Legacy
DV/dt
500 V/µs off-state maximum
Ambient Air Temperature for Storage
-40 to 257°F (-40 to 125°C)
Output Voltage
48...660 V AC
Connections Terminals
Input screw AWG 10); Output screw AWG 10)
Switching Voltage
110 V AC turn-on; 18 V AC turn-off
Tightening Torque
0.6...0.7 N.m for input; 0.6...0.7 N.m for output
Mounting Support
Panel; DIN rail
Switching Device
SCR output; Zero voltage switching
Network Number of Phases
1 phase
Maximum I²t for fusing
6000 A².s 8.3 ms
Voltage Drop
<1.6 V on-state
Contacts Type and Composition
NO
Input Current Limits
5 mA at 240 V AC typical
Maximum Peak Voltage
1200 V
Product Certifications
CSA; CE
Maximum I²t for fusing
6000 A².s 8.3 ms

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 5 mA, Input Voltage 90 to 280V AC, Maximum Output Current with Heat Sink 30 A, Maximum Output Current without Heat Sink 30 A, Output Switching Mode Zero Crossing, Output Voltage Range 48 to 660V AC, Standards CE Certified, CSA Certified, Switch Component Type SCR, Current Type AC, Electrical Phase Single, Finger Safe Yes, Mounting Style DIN Rail & Panel, Switch Configuration Form A, Voltage Type AC Output
