  7. Solid State Relay, 90 to 280VAC, 40A

This item is Discontinued.

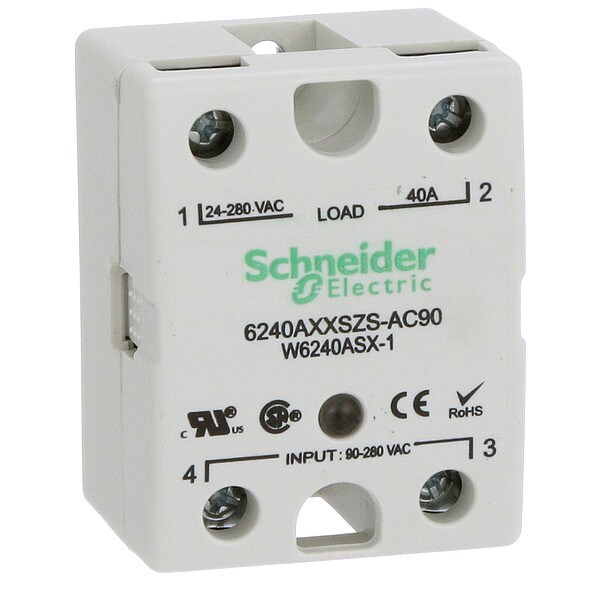

Schneider Electric Solid State Relay, 90 to 280VAC, 40A 6240AXXSZS-AC90

Solid State Relay, 90 to 280VAC, 40A (Discontinued)

  • Mfr # 6240AXXSZS-AC90
  • Zoro # G1561174
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
6240AXXSZS-AC90
Zoro #
G1561174
UPC #
-
Country of Origin
Mexico

Dimensions

Body Depth - Relay
2.3 in
Body Height - Relay
1.4 in
Body Width - Relay
1.74 in
Overall Height - Relay
1.4 in
Depth
2.30 in (58.4 mm)
Height
1.39 in (35.3 mm)
Width
1.85 in (47.1 mm)
Body Depth
2.29 in
Body Height
1.38 in
Body Width
1.85 in
Overall Depth
2.29 in

Details

Item
Solid State Relay
Max. Output Amps Without Heat Sink
Not Recommended
Voltage Output
24 to 280VAC
Heat Sink
Not Included
Max. Output w/Heat Sink
40A
Item - Relay
Solid State Relay
Output or Controlled Voltage Range
24 to 280V AC
Switch Type
SCR
Case Color
Gray
Input Power Consumption (Burden)
0.2 to 1.0VA
Input Voltage
90 to 280V AC
Contact Form - Relay
SPST-NO
Standards
CE Certified, CSA Certified, UL Listed
Max. Output Amps w/Heat Sink
40 A
Finger Safe
Yes
Relay Turns On At
Zero Crossing
Mounting - Relay
Surface
Turns On At
Zero Cross
Phase
1
Input or Control Voltage Range
90 to 280VAC
Input or Control Voltage
90 to 280V AC
Mounting
Surface
Mounting Style
Panel
Electrical Connection
Screw Clamp
Dielectric Strength
4,000V
Output Voltage Range
24 to 280V AC
Maximum Output Current with Heat Sink
40 A
Status Indicator
Green LED Indicator
Input Current
11 mA; 20 mA
Response Time
0.1 msec
Maximum Output Current without Heat Sink
Not Recommended
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
176 Degrees F
Electrical Phase
Single
IP Rating
IP20
Series
6000 Series
Output Switching Mode
Zero Crossing
Voltage Type
AC Output
Switch Component Type
SCR
Insulation Resistance
1,000 megaohm
Drop Out Voltage
1.6V DC
Current Type
AC
Weight
3.05 oz
Power Factor
1
Switch Configuration
Form A
Connections Terminals
Input screw clamp terminal, 1; Output screw clamp terminals, 1
Switch Function
SPST
Surge Current
625 A 16.6 ms
Must Release Voltage
10 V
Insulating Resistance
1 GΩ
Protection Technology
Current limiter
Control Circuit Voltage
90...280 V AC
Screw Type
M3.5; M6
Tightening Torque
10 lb.in for input; 20 lb.in for output
Output Voltage
24...280 V AC
Voltage Drop
<1.6 V on-state AC
Maximum Peak Voltage
600 V
Product Certifications
UL; CSA; CE
Network Number of Phases
1 phase
Holding Current
250 mA
Ambient Air Temperature for Operation
-40 to 176°F (-40 to 80°C)
Thermal Resistance
0.9°C/W
Contacts Type and Composition
NO
Leakage Current
10 mA at off-state
Switching Device
SCR output; Zero voltage switching
Maximum I²t for fusing
1250 A².s 8.3 ms
Range
Legacy
DV/dt
500 V/µs off-state at maximum rated voltage
Ambient Air Temperature for Storage
-40 to 257°F (-40 to 125°C)
Local Signalling
for input status 1 LED (green)
maximum output current
40 A AC
Input Impedance
13000 Ohm
Input Current Limits
11 mA at 120 V AC typical; 20 mA at 240 V AC
Maximum I²t for fusing
1250 A².s 8.3 ms

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 11 mA; 20 mA, Input Voltage 90 to 280V AC, Maximum Output Current with Heat Sink 40 A, Maximum Output Current without Heat Sink Not Recommended, Output Switching Mode Zero Crossing, Output Voltage Range 24 to 280V AC, Standards CE Certified, CSA Certified, UL Listed, Switch Component Type SCR, Current Type AC, Electrical Phase Single, Finger Safe Yes, Mounting Style Panel, Switch Configuration Form A
