  7. Solid State Relay, 90 to 280VAC, 40A

This item is Discontinued.

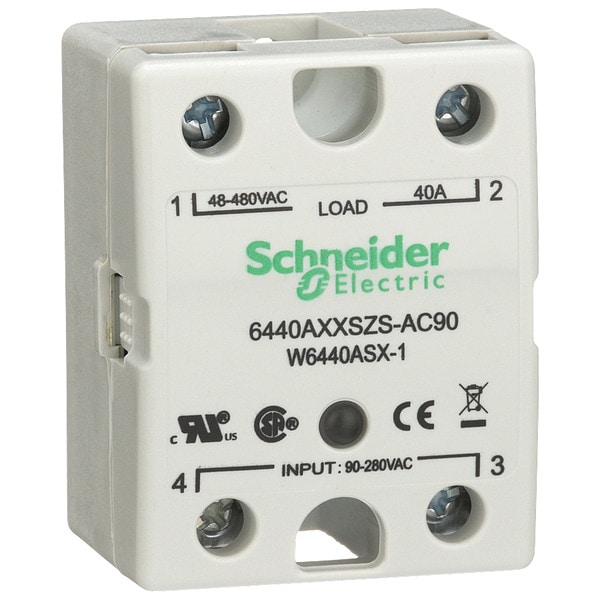

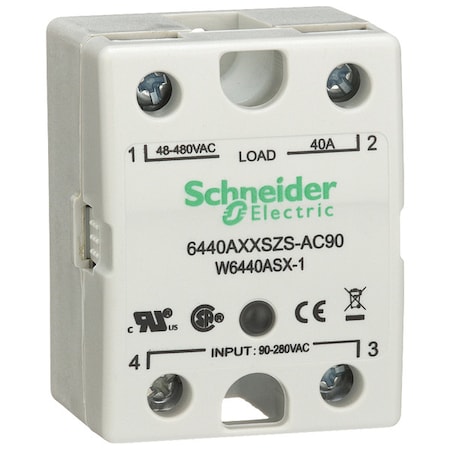

Schneider Electric Solid State Relay, 90 to 280VAC, 40A 6440AXXSZS-AC90

Solid State Relay, 90 to 280VAC, 40A (Discontinued)

  • Mfr # 6440AXXSZS-AC90
  • Zoro # G2682136
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
6440AXXSZS-AC90
Zoro #
G2682136
UPC #
-
Country of Origin
Mexico

Dimensions

Body Width - Relay
1.74 in
Overall Height - Relay
1.4 in
Body Depth - Relay
2.3 in
Body Height - Relay
1.4 in
Depth
2.30 in (58.4 mm)
Height
1.39 in (35.3 mm)
Width
1.85 in (47.1 mm)
Body Width
1.85 in
Body Depth
2.29 in
Body Height
1.38 in
Overall Depth
2.29 in

Details

Item
Solid State Relay
Voltage Output
48 to 480VAC
Heat Sink
Not Included
Case Color
Gray
Input or Control Voltage
90 to 280V AC
Switch Type
SCR
Item - Relay
Solid State Relay
Mounting - Relay
Surface
Input Power Consumption (Burden)
0.2 to 1.0VA
Input or Control Voltage Range
90 to 280VAC
Turns On At
Zero Cross
Output or Controlled Voltage Range
48 to 480V AC
Phase
1
Finger Safe
Yes
Relay Turns On At
Zero Crossing
Standards
CE Certified, CSA Certified, UL Listed
Input Voltage
90 to 280V AC
Max. Output Amps w/Heat Sink
40 A
Contact Form - Relay
SPST-NO
Mounting
Surface
Max. Output w/Heat Sink
40A
Max. Output Amps Without Heat Sink
Not Recommended
Mounting Style
Panel
Electrical Connection
Screw Clamp
Minimum Operating Temperature
-40 Degrees F
Switch Configuration
Form A
Drop Out Voltage
1.6V DC
Response Time
0.1 msec
Current Type
AC
Input Current
11 mA; 20 mA
Maximum Output Current with Heat Sink
40 A
Maximum Operating Temperature
176 Degrees F
Dielectric Strength
4,000V
Output Voltage Range
48 to 530V AC
Electrical Phase
Single
Power Factor
1
Status Indicator
Green LED Indicator
Switch Component Type
SCR
Output Switching Mode
Zero Crossing
Weight
3.05 oz
IP Rating
IP20
Series
6000 Series
Maximum Output Current without Heat Sink
Not Recommended
Voltage Type
AC Output
Insulation Resistance
1,000 megaohm
Range
Legacy
Input Current Limits
11 mA at 120 V AC typical; 20 mA at 240 V AC
Insulating Resistance
1 GΩ
DV/dt
500 V/µs off-state at maximum rated voltage
Protection Technology
Current limiter
Thermal Resistance
0.9°C/W
Contacts Type and Composition
NO
Output Voltage
48...530 V AC
Switch Function
SPST
Input Impedance
13000 Ohm
Maximum I²t for fusing
1250 A².s 8.3 ms
Ambient Air Temperature for Operation
-40 to 176°F (-40 to 80°C)
Network Number of Phases
1 phase
Switching Device
SCR output; Zero voltage switching
Connections Terminals
Input screw clamp terminal, 1; Output screw clamp terminals, 1
Tightening Torque
10 lb.in for input; 20 lb.in for output
Ambient Air Temperature for Storage
-40 to 257°F (-40 to 125°C)
Product Certifications
UL; CSA; CE
Control Circuit Voltage
90...280 V AC
Surge Current
625 A 16.6 ms
Screw Type
M3.5; M6
Holding Current
250 mA
maximum output current
40 A AC
Voltage Drop
<1.6 V on-state AC
Must Release Voltage
10 V
Local Signalling
for input status 1 LED (green)
Leakage Current
10 mA at off-state
Maximum Peak Voltage
800 V
Maximum I²t for fusing
1250 A².s 8.3 ms

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 11 mA; 20 mA, Input Voltage 90 to 280V AC, Maximum Output Current with Heat Sink 40 A, Maximum Output Current without Heat Sink Not Recommended, Output Switching Mode Zero Crossing, Output Voltage Range 48 to 530V AC, Standards CE Certified, CSA Certified, UL Listed, Switch Component Type SCR, Current Type AC, Electrical Phase Single, Finger Safe Yes, Mounting Style Panel, Switch Configuration Form A
