  7. Solid State Relay, 90 to 280VAC, 50A

This item is Discontinued.

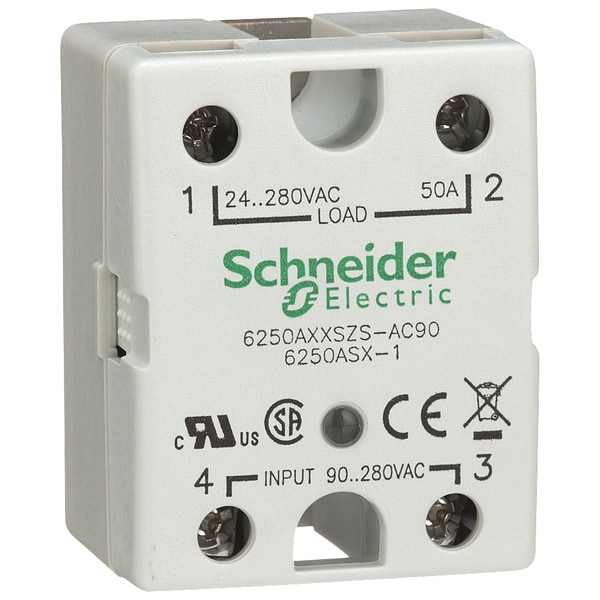

Schneider Electric Solid State Relay, 90 to 280VAC, 50A 6250AXXSZS-AC90

Solid State Relay, 90 to 280VAC, 50A (Discontinued)

  • Mfr # 6250AXXSZS-AC90
  • Zoro # G2279304
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6250AXXSZS-AC90
Zoro #
G2279304
UPC #
00689170775453
Country of Origin
Mexico

Dimensions

Overall Height - Relay
1.4 in
Body Width - Relay
1.74 in
Body Height - Relay
1.4 in
Body Depth - Relay
2.3 in
Depth
2.30 in (58.4 mm)
Height
1.39 in (35.3 mm)
Width
1.85 in (47.1 mm)
Overall Depth
2.29 in
Body Depth
2.29 in
Body Height
1.38 in
Body Width
1.85 in

Details

Item
Solid State Relay
Turns On At
Zero Cross
Max. Output Amps w/Heat Sink
50 A
Contact Form - Relay
SPST-NO
Switch Type
SCR
Finger Safe
Yes
Output or Controlled Voltage Range
24 to 280V AC
Standards
CE Certified, CSA Certified, UL Listed
Mounting
Surface
Phase
1
Heat Sink
Not Included
Input Voltage
90 to 280V AC
Max. Output Amps Without Heat Sink
12.0 A
Input or Control Voltage Range
90 to 280VAC
Max. Output w/Heat Sink
50A
Voltage Output
24 to 280VAC
Relay Turns On At
Zero Crossing
Case Color
Gray
Item - Relay
Solid State Relay
Input Power Consumption (Burden)
0.2 to 1.0VA
Input or Control Voltage
90 to 280V AC
Mounting - Relay
Surface
Mounting Style
Panel
Electrical Connection
Screw Clamp
Drop Out Voltage
1.6V DC
Voltage Type
AC Output
IP Rating
IP20
Weight
3.7 oz
Maximum Output Current with Heat Sink
50 A
Insulation Resistance
1,000 megaohm
Input Current
2 to 4 mA
Output Switching Mode
Zero Crossing
Response Time
10 msec
Current Type
AC
Output Voltage Range
24 to 280V AC
Minimum Operating Temperature
-40 Degrees F
Maximum Output Current without Heat Sink
12 A
Series
6000 Series
Status Indicator
Green LED Indicator
Switch Component Type
SCR
Switch Configuration
Form A
Maximum Operating Temperature
176 Degrees F
Dielectric Strength
4,000V
Power Factor
1
Electrical Phase
Single
Ambient Air Temperature for Storage
-40 to 257°F (-40 to 125°C)
Local Signalling
for input status 1 LED (green)
Surge Current
500 A 16.6 ms
Control Circuit Voltage
90...280 V AC
Switch Function
SPST
Leakage Current
10 mA at off-state
Ambient Air Temperature for Operation
-40 to 176°F (-40 to 80°C)
maximum output current
50 A AC
Holding Current
250 mA
Contacts Type and Composition
NO
Tightening Torque
10 lb.in for input; 20 lb.in for output
Connections Terminals
Input screw clamp terminal, 1; Output screw clamp terminals, 1
Protection Technology
Current limiter
Range
Legacy
Maximum I²t for fusing
1250 A².s 8.3 ms
Input Current Limits
2 to 4 mA at 240 V AC typical
Thermal Resistance
0.63°C/W
Output Voltage
24...280 V AC
DV/dt
500 V/µs off-state at maximum rated voltage
Voltage Drop
<1.6 V on-state AC
Input Impedance
60 kOhm
Maximum Peak Voltage
600 V
Product Certifications
UL; CSA; CE
Switching Device
SCR output; Zero voltage switching
Insulating Resistance
1 GΩ
Network Number of Phases
1 phase
Must Release Voltage
10 V
Maximum I²t for fusing
1250 A².s 8.3 ms

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 2 to 4 mA, Input Voltage 90 to 280V AC, Maximum Output Current with Heat Sink 50 A, Maximum Output Current without Heat Sink 12 A, Output Switching Mode Zero Crossing, Output Voltage Range 24 to 280V AC, Standards CE Certified, CSA Certified, UL Listed, Switch Component Type SCR, Current Type AC, Electrical Phase Single, Finger Safe Yes, Mounting Style Panel, Switch Configuration Form A
