  7. Solid State Relay, 90 to 280VAC, 75A

This item is Discontinued.

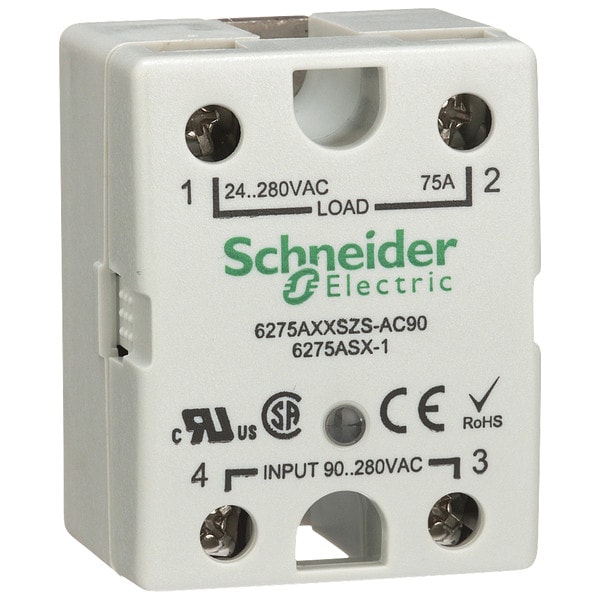

Schneider Electric Solid State Relay, 90 to 280VAC, 75A 6275AXXSZS-AC90

Solid State Relay, 90 to 280VAC, 75A (Discontinued)

  • Mfr # 6275AXXSZS-AC90
  • Zoro # G1411724
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
6275AXXSZS-AC90
Zoro #
G1411724
UPC #
-
Country of Origin
Mexico

Dimensions

Body Width - Relay
1.74 in
Overall Height - Relay
1.4 in
Body Height - Relay
1.4 in
Body Depth - Relay
2.3 in
Depth
2.30 in (58.4 mm)
Height
1.39 in (35.3 mm)
Width
1.85 in (47.1 mm)
Body Depth
2.29 in
Overall Depth
2.29 in
Body Width
1.85 in
Body Height
1.38 in

Details

Item
Solid State Relay
Standards
CE Certified, CSA Certified, UL Listed
Switch Type
SCR
Input Voltage
90 to 280V AC
Relay Turns On At
Zero Crossing
Mounting - Relay
Surface
Finger Safe
Yes
Phase
1
Mounting
Surface
Input Power Consumption (Burden)
0.2 to 1.0VA
Item - Relay
Solid State Relay
Heat Sink
Not Included
Voltage Output
24 to 280VAC
Max. Output Amps w/Heat Sink
75 A
Contact Form - Relay
SPST-NO
Output or Controlled Voltage Range
24 to 280V AC
Turns On At
Zero Cross
Case Color
Gray
Input or Control Voltage Range
90 to 280VAC
Max. Output Amps Without Heat Sink
Not Recommended
Max. Output w/Heat Sink
75A
Input or Control Voltage
90 to 280V AC
Mounting Style
Panel
Electrical Connection
Screw Clamp
Series
6000 Series
Response Time
10 msec
Switch Configuration
Form A
Maximum Operating Temperature
176 Degrees F
Input Current
2 to 4 mA
Power Factor
1
Status Indicator
Green LED Indicator
IP Rating
IP20
Voltage Type
AC Output
Output Voltage Range
24 to 280V AC
Drop Out Voltage
1.6V DC
Minimum Operating Temperature
-40 Degrees F
Switch Component Type
SCR
Output Switching Mode
Zero Crossing
Electrical Phase
Single
Insulation Resistance
1,000 megaohm
Dielectric Strength
4,000V
Weight
3.7 oz
Maximum Output Current without Heat Sink
Not Recommended
Current Type
AC
Maximum Output Current with Heat Sink
75 A
Leakage Current
10 mA at off-state
Protection Technology
Current limiter
Switching Device
SCR output; Zero voltage switching
DV/dt
500 V/µs off-state at maximum rated voltage
Local Signalling
for input status 1 LED (green)
Control Circuit Voltage
90...280 V AC
Output Voltage
24...280 V AC
Network Number of Phases
1 phase
Input Current Limits
2 to 4 mA at 240 V AC typical
Ambient Air Temperature for Storage
-40 to 257°F (-40 to 125°C)
Range
Legacy
Connections Terminals
Input screw clamp terminal, 1; Output screw clamp terminals, 1
Product Certifications
UL; CSA; CE
Insulating Resistance
1 GΩ
Holding Current
40 mA
Switch Function
SPST
Maximum I²t for fusing
4150 A².s 8.3 ms
Screw Type
M3.5; M6
Contacts Type and Composition
NO
Voltage Drop
<1.6 V on-state AC
maximum output current
75 A AC
Must Release Voltage
10 V
Input Impedance
13000 Ohm
Maximum Peak Voltage
600 V
Surge Current
1000 A 16.6 ms
Thermal Resistance
0.31°C/W
Ambient Air Temperature for Operation
-40 to 176°F (-40 to 80°C)
Tightening Torque
10 lb.in for input; 20 lb.in for output
Maximum I²t for fusing
4150 A².s 8.3 ms

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 2 to 4 mA, Input Voltage 90 to 280V AC, Maximum Output Current with Heat Sink 75 A, Maximum Output Current without Heat Sink Not Recommended, Output Switching Mode Zero Crossing, Output Voltage Range 24 to 280V AC, Standards CE Certified, CSA Certified, UL Listed, Switch Component Type SCR, Current Type AC, Electrical Phase Single, Finger Safe Yes, Mounting Style Panel, Switch Configuration Form A
