  13. Surface, Open Power Relay, 40 A, 4 Pins, Screw

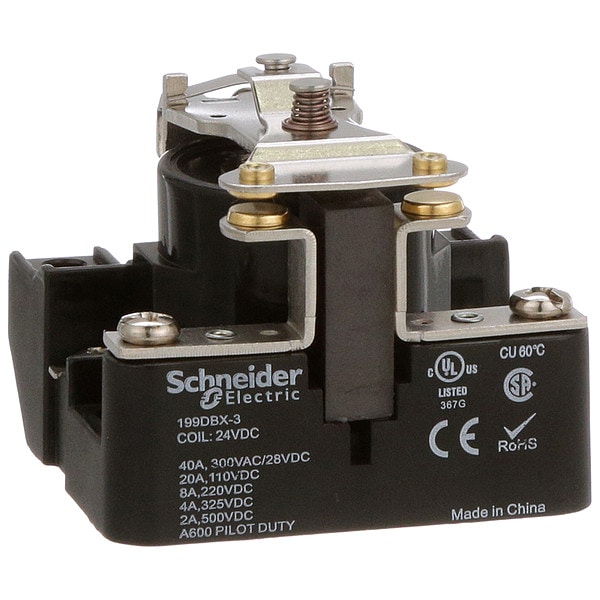

Schneider Electric Surface, Open Power Relay, 40 A, 4 Pins, Screw 199DBX-3 - main

Surface, Open Power Relay, 40 A, 4 Pins, Screw

  • Mfr # 199DBX-3

  • Zoro # G0842371

product price: $56.55
/ea

Key Features

Mounting Style
Surface
Electrical Connection
Screw
Number of Pins
4
Coil Voltage
24V DC
Current Rating
40 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
199DBX-3
Zoro #
G0842371
UPC #
-
Country of Origin
China

Dimensions

Dimensions
2.18"H, 2.50"W, 2.43"D
Overall Height - Relay
2.18 in
Overall Depth
1.95 in
Body Height
2.49 in
Body Depth
1.64 in
Body Width
2.5 in

Details

Item
Open Power Relay
Mounting Style
Surface
Electrical Connection
Screw
Number of Pins
4
Coil Voltage
24V DC
Current Rating
40 A
Contact Form
SPST-NO
Contact Rating (AC)
40 A @ 300V
Contact Rating (DC)
40A @ 28V
Contact Amp Rating (Resistive)
40A @ 300VAC/28VDC
Power Consumption - Relay
10.0 W
Hz
50/60
Coil Rating
10.0VA, 4.0W
Number of Poles
1
HP @ 240V
2
Hz - Electrical
50/60 Hz
HP @ 120V
2
Standards
CE Certified, CSA Certified, UL Listed
Features
Magnetic Blowout, Riveted Construction
Contact Material
Silver Alloy
Compatible with Manufacturer Model Number
50-1289-P
Response Time
30 msec
Minimum Operating Temperature
-67 Degrees F
Dielectric Strength
1,500V AC Between Open Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles
Maximum Operating Temperature
131 Degrees F
Input Voltage
24V DC
Frequency
50/60 Hz
Horsepower @ 240V AC
2 hp
Maximum Switching Voltage
600V DC
Weight
0.6
Horsepower @ 120V AC
2 hp
Series
199 Power Series
Motor Rated
Yes
Power Consumption
4 W, 10 VA
Sealing
Open
Operating Current
2 A at 500V DC (Resistive Load), 20 A at 110V DC (Resistive Load), 4 A at 325V DC (Resistive Load), 40 A at 28V DC (Resistive Load), 40 A at 300V AC (Resistive Load), 8 A at 220V DC (Resistive Load)
Coil Resistance
290 ohm
Electrical Operating Durability
100,000
Minimum Switching Current
1,000 mA
Compatible Manufacturer Part Number
50-1289-P
Compatible Manufacturer Model Number
50-1289-P
Status Indicator
No Indicator
Terminal Tightening Torque
10.62 to 15.05 lbf.in (1.2 to 1.7 N.m)
Rated Operational Voltage
6...600 V AC 50-60 Hz; 6...250 V DC
Contact Operation
Double action
Contact Blow-out Type
Magnetic
Ambient Air Temperature for Storage
-67 to 212°F (-55 to 100°C)
Contact Composition
1 NO
Power consumption in W
4 W DC
Cover Type
Open cover
Motor Power HP
2 hp 120...600 V AC 50/60 Hz
Switch Function
SPST-NO-DM
Product Certifications
UL Listed; CSA; CE
Power consumption in VA
10 VA AC
Wire Range
AWG 14
Ambient Air Temperature for Operation
-67 to 131°F (-55 to 55°C)
Drop-out Voltage Threshold
>= 0.1 Uc AC/DC
Voltage Range
0.85...1.1 Un AC/DC
Type
Power, Open Style

Description

Open Power Relay, Coil Voltage 24V DC, Contact Form SPST-NO, Current Rating 40 A, Electrical Connection Screw Terminal, Number of Pins 4, Sealing Open, Status Indicator No Indicator, Contact Rating (AC) 40 A @ 300V, Contact Rating (DC) 2 A @ 500V, 20 A @ 120V, 4 A @ 325V, 40 A @ 8V, 8 A @ 240V, Horsepower @ 120V AC 2 hp, Horsepower @ 240V AC 2 hp, Mounting Style Surface, Body Depth 1.64 in, Body Height 2.49 in, Body Width 2.5 in, Coil Resistance 290 ohm, Compatible Grainger Part Number 6CVA2
