  13. Surface, Open Power Relay, Square, 40 A, 5 Pins, Screw

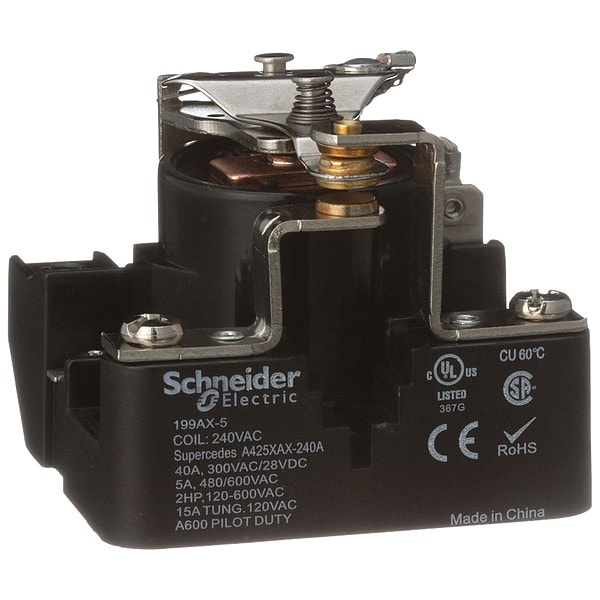

Schneider Electric Surface, Open Power Relay, Square, 40 A, 5 Pins, Screw 199AX-5 - main

Surface, Open Power Relay, Square, 40 A, 5 Pins, Screw

  • Mfr # 199AX-5

  • Zoro # G3323196

product price: $36.99
/ea

Key Features

Mounting Style
Surface
Electrical Connection
Screw
Base Shape
Square
Number of Pins
5
Coil Voltage
240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
199AX-5
Zoro #
G3323196
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
2.18 in
Dimensions
2.18"H, 2.50"W, 2.43"D
Body Height
2.49 in
Overall Depth
2.06 in
Body Width
2.5 in
Body Depth
1.4 in

Details

Item
Open Power Relay
Mounting Style
Surface
Electrical Connection
Screw
Base Shape
Square
Number of Pins
5
Coil Voltage
240V AC
Current Rating
40 A
Contact Form
SPDT
Contact Rating (AC)
15 A @ 120V, 40 A @ 300V, 5 A @ 480/600V
Contact Rating (DC)
40 A @ 28V
Hz
50/60
Power Consumption - Relay
10.0 VA
Contact Amp Rating (Resistive)
40A @ 300VAC/28VDC
HP @ 240V
1 1/2
Standards
CE Certified, CSA Certified, UL Listed
Number of Poles
1
HP @ 120V
1 1/2
Contact Material
Silver Alloy
Coil Rating
10.0VA, 4.0W
Features
Riveted Construction
Hz - Electrical
50/60 Hz
Frequency
50/60 Hz
Maximum Operating Temperature
131 Degrees F
Input Voltage
240V AC
Horsepower @ 120V AC
2 hp
Dielectric Strength
1,500V AC Between Open Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles
Minimum Switching Current
1,000 mA
Response Time
30 msec
Electrical Operating Durability
50,000
Compatible with Manufacturer Model Number
50-1289-P
Horsepower @ 240V AC
2 hp
Minimum Operating Temperature
-67 Degrees F
Sealing
Open
Motor Rated
Yes
Series
199 Power Series
Coil Resistance
1,200 ohm
Maximum Switching Voltage
600V AC
Power Consumption
4 W, 10 VA
Weight
0.6
Operating Current
15 A at 120V AC (Tungsten Filament), 40 A at 28V DC (Resistive Load), 40 A at 300V AC (Resistive Load), 5 A at 480V AC (Resistive Load), 5 A at 600V AC (Resistive Load)
Compatible Manufacturer Part Number
50-1289-P
Compatible Manufacturer Model Number
50-1289-P
Status Indicator
No Indicator
Power consumption in VA
10 VA AC
Wire Range
AWG 14
Product Certifications
UL Listed; CSA; CE
Ambient Air Temperature for Storage
-67 to 212°F (-55 to 100°C)
Voltage Range
0.85...1.1 Un AC/DC
Contact Composition
1 NC + 1 NO
Rated Operational Voltage
6...600 V AC 50-60 Hz; 6...250 V DC
Drop-out Voltage Threshold
>= 0.1 Uc AC/DC
Motor Power HP
2 hp 120...600 V AC 50/60 Hz
Cover Type
Open cover
Ambient Air Temperature for Operation
-67 to 131°F (-55 to 55°C)
Power consumption in W
4 W DC
Terminal Tightening Torque
10.62 to 15.05 lbf.in (1.2 to 1.7 N.m)
Type
Power, Open Style
Push-To-Test Method
No Test Button

Description

Open Power Relay, Base Shape Square, Coil Voltage 240V AC, Contact Form SPDT, Current Rating 40 A, Electrical Connection Screw Terminal, Number of Pins 5, Sealing Open, Status Indicator No Indicator, Contact Rating (AC) 15 A @ 120V, 40 A @ 300V, 5 A @ 480/600V, Contact Rating (DC) 40 A @ 28V, Horsepower @ 120V AC 2 hp, Horsepower @ 240V AC 2 hp, Mounting Style Surface, Body Depth 1.4 in, Body Height 2.49 in, Body Width 2.5 in, Coil Resistance 1,200 ohm, Compatible with Grainger Part Number 6CVA2
