  11. Switching Power Supply, 100/120V AC; 200/240V AC, 24V DC, 150 W, 6.25 A, Panel

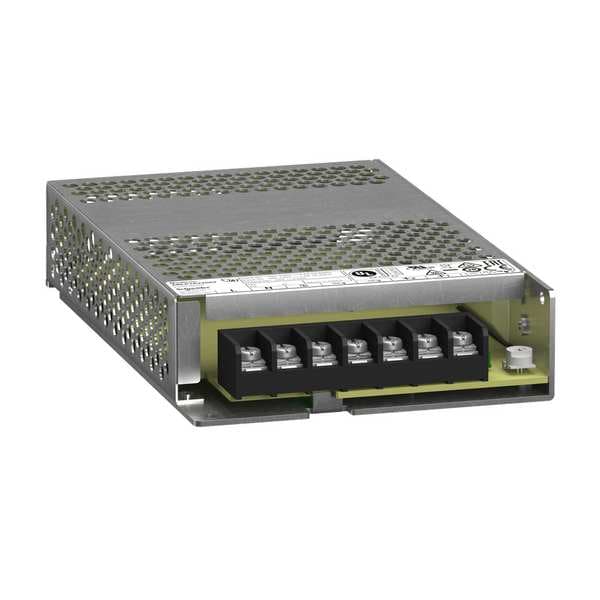

Schneider Electric Switching Power Supply, 100/120V AC; 200/240V AC, 24V DC, 150 W, 6.25 A, Panel ABLP1A24062 - main

Switching Power Supply, 100/120V AC; 200/240V AC, 24V DC, 150 W, 6.25 A, Panel

  • Mfr # ABLP1A24062

  • Zoro # G803457404

product price: $141.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
100/120V AC; 200/240V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
150 W
Current - Output
6.25 A
Mounting
Panel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ABLP1A24062
Zoro #
G803457404
UPC #
-
Country of Origin
China

Dimensions

Overall Height
97 mm
Overall Width
30 mm
Overall Depth
159 mm
Depth
159 mm
Width
97 mm
Height
30 mm
Wire Size - Maximum
14 AWG
Wire Size - Minimum
18 AWG

Details

Item
Switching Power Supply
Input Voltage
100/120V AC; 200/240V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
150 W
Current - Output
6.25 A
Mounting
Panel
Housing Material
Aluminum
Phase
Single
Power Supply Style
Switching
Style
Switching
Features
Efficiency 88% at 230 V AC, Green Premium Product, Integrated Fuse, Mercury Free, Parallel and Serial Output Coupling, Relative Humidity 95% Without Condensation
Output Voltage
24V DC
Hz
50/60 Hz
Operating Temp. Range
-30 to 70°C
Status Indicator
Green LED
Series
ABL
Output Noise
Less Than 170 mV
Protection
Overload and Short-Circuits Automatic Reset, Over Temperature Manual Reset , Overvoltage Manual Reset
Phase - Electrical
Single
IP Rating
IP10
Standards
CB Scheme, CE, CSA C22.2 No. 61010-1, CSA C22.2 No. 61010-2-201, CSA C22.2 No. 62368-1, cULus, EAC, EN 61000-3-3, EN 61010-2-201, EN/IEC 61010-1, EN/IEC 61204-3, EN/IEC 62368-1, IEC 61000-3-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 62368-1, KC, RCM, UL 61010-1, UL 61010-2-201, UL 62368-1
Power Rating
150W
Output Amps
6.25A
Line Regulation
Less Than 1%
Peak Amps
35 A at 115 V AC, 70 A at 230 V AC
Case Material
Aluminum Case
Ripple Volts Regulation
Less Than 170mV
Load Regulation
Less Than 0.5%
Connection
Screw
Hold Up Time
Greater Than 20 msec at 115 V AC, Greater Than 40 msec at 230 V AC
Maximum Efficiency @ 230V AC
88.9 %
Wire Connection Type
Screw Terminals
Manufacturer Warranty
18 mo
Mean Time Between Failures (MTBF)
700,000 hr
Input Frequency - Nominal
50/60 Hz
Operating Temperature - Minimum
-22 Degrees F
Operating Temperature - Maximum
158 Degrees F

Description

DC Power Supply, Input Voltage 100 to 120V AC, 200 to 240V AC, Output Voltage 24V DC, Power Rating 150W, Output Amps 6.25, Mounting DIN Rail, Switching, Case Material Aluminum Case, Height 30 mm, Width 97 mm, Depth 159 mm, Series ABL, Hz 50 to 60 Hz, Phase - Electrical Single, Peak Amps 35 A at 115 V AC, 70 A at 230 V AC, IP Rating IP10, Output Noise Less Than 170 mV, Hold Up Time Greater Than 20 msec at 115 V AC, Greater Than 40 msec at 230 V AC, Status Indicator Green LED
