Shop SCHNEIDER ELECTRIC

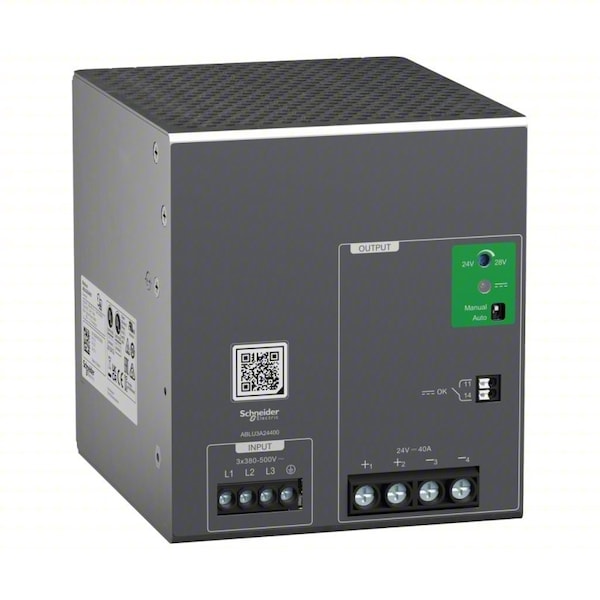

DC Power Supply, 380 V AC, 960 W

  • Mfr # ABLU3A24400
  • Zoro # G622254550
product price:
$
579.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
380...500 V AC three phase
Output Voltage - Nominal
24V DC
Output Power - Rated
960 W
Current - Output
40 A
Mounting
Double-Profile DIN Rail
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ABLU3A24400
Zoro #
G622254550
UPC #
-
Country of Origin
Thailand
Item
DC Power Supply
Input Voltage
380...500 V AC three phase
Output Voltage - Nominal
24V DC
Output Power - Rated
960 W
Current - Output
40 A
Mounting
Double-Profile DIN Rail
Housing Material
Metal
Phase
Three
Connection
Screw Connectio/Cage Clamp
Hold Up Time
> 20 ms
Operating Temp. Range
-25 Degrees to 55 Degrees C
Protection
Integrated Fuse
Standards
CE, CSA C22.2 No 62368-1, CSA C22.2 No. 107.1, cUL Recognized, cURus, EAC, EN 61000-3-3, EN/IEC 61204-3, IEC 61000-3-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 62368-1, KC, RCM, UKCA, UL 62368-1
Input Frequency (Hz)
50 to 60 Hz
IP Rating
IP20
Line Regulation Current
Less Than 1.7 A @ 500V AC, Less Than 1.9 A @ 380V AC
Voltage Output - Maximum
28 V DC
CAT Safety Rating
CAT II, CAT III
Voltage Output - Minimum
24 V DC
Input Voltage - Minimum
380 V AC
Power Output - Minimum
120 W
Power Output - Maximum
960 W
Load Regulation Voltage
24 to 28 V
Line Regulation Voltage
320 to 575V AC @ Three-Phase
Load Regulation Current
Less Than 0.17 % Network 100 % Load In Line @ 77 Degrees F/25 Degrees C, Less Than 0.6 % +/- 0.5 % Network 150 % Load @ 77 Degrees F/25 Degrees C
Calibration Certificate Type
Not Certified
Ripple Voltage Regulation
Less Than 200 mV
Input Voltage - Maximum
500 V AC
Current Output - Maximum
40 A

Dimensions

Overall Height
4.9 in
Overall Width
4.3 in
Overall Depth
5.07 in
Manufacturers Warranty Length
18 mo

Description

DC Power Supply, Includes Not Applicable, Manufacturers Warranty Length 18 mo
