Shop SCHNEIDER ELECTRIC

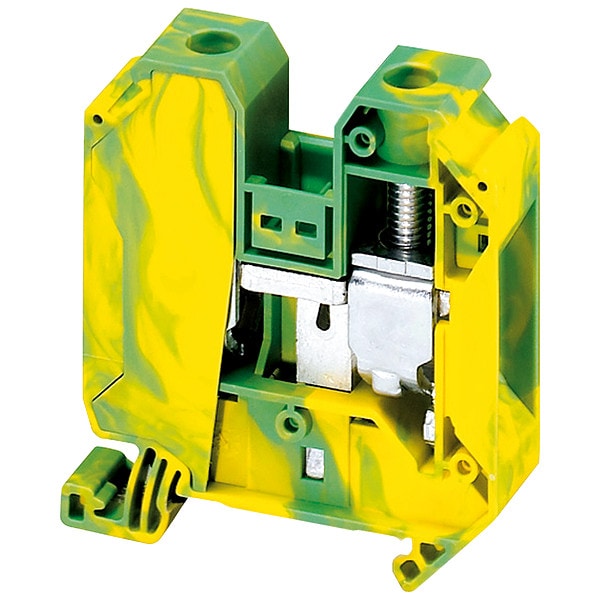

Terminal Block, Grounding, 1 Pole, 150 A, 600 V, 1/0 AWG, Green, Yellow

  • Mfr # NSYTRV352PE

  • Zoro # G305907254

product price:
$
13.65
/ea
Sold in multiples of 50 for $682.50

Key Features

Terminal Block Type
Grounding
Mounting Type
Clip-On
Connection Type
Screw Clamp
Number of Poles
1
Number of Tiers
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NSYTRV352PE
Zoro #
G305907254
UPC #
-
Country of Origin
Türkiye

Dimensions

For Minimum Wire Size
14 AWG
For Maximum Wire Size
1/0 AWG
Strip Length
18 mm
Overall Length
2.59 in
Overall Depth
2.37 in
Overall Width
0.63 in
Wire Stripping Length
18 mm
Wire Rope Length
2.59 in
Length
2.59 in

Details

Item
Terminal Block
Terminal Block Type
Grounding
Mounting Type
Clip-On
Connection Type
Screw Clamp
Number of Poles
1
Number of Tiers
1
Current
150 A
Maximum Voltage
600 V
Circuit Protection Type
None
Housing Color
Green, Yellow
Standards
ATEX, CSA, cULus, EAC, GL, IECEx, VDE
Number of Connections
2
Material
polyamide 6/6 insulating case
RoHS Compliant
Yes
UL 94 Flammability Rating
V-0
Minimum Operating Temperature
-40 Degrees F
Special Features
It is Compliant with Green Premium (RoHS/REACH), Linergy TR is Terminal Block for Linergy, Multi Standards Certified (VDE/LR/CURUS/IEC-EX/ATEX/EAC/GL/CSA)
Torque
4 N-m
Housing Material
Polyamide 6/6
Compatible with Product Type
Special Enclosures
Maximum Operating Temperature
266 Degrees F
Range Compatibility
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
Product Compatibility
Spacial enclosures
Number Of Terminals
2
Connection Position
sideways
Product Name
Linergy TR
Cable Cross Section
1.5-50 mm², solid || 2.5-35 mm², flexible with cable end || 1.5-50 mm², flexible without cable end
Ambient Air Temperature For Operation
-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
Device Short Name
TRV
Tool Type
connection screwdriver || disconnection screwdriver
Creep Resistance
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Number Of Measurement Input
2
Tightening Torque
3.2-3.7 N.m
Flame Retardance
V0 0.8 mm UL 94
Dielectric Strength
1000 V IEC 60243-1
Range
Linergy
Dielectric Constant
3.7 at 1 MHz
Nominal Cross Section
35 mm²
Surface Resistance
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
Resistivity
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Dielectric Loss
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Terminal Block Level
1

Description

Screw Terminal, Circuit Protection Type None, Connection Type Screw Clamp, Current 150 A, For Minimum Wire Size 14 AWG, For Maximum Wire Size 1/0 AWG, Housing Color Green/Yellow, Maximum Voltage 600 V, Mounting Type Clip-On, Number of Poles 1, Number of Tiers 1, For Conductor Material Not Applicable, For Conductor Type Not Applicable, For Fuse Diameter Not Applicable, For Fuse Length Not Applicable, Overall Depth 60.2 mm, Overall Length 65.7 mm, Overall Width 16 mm
