  6. Terminal Block, Grounding, 1 Pole, 20 A, 150 V, 12 AWG, Green, Yellow

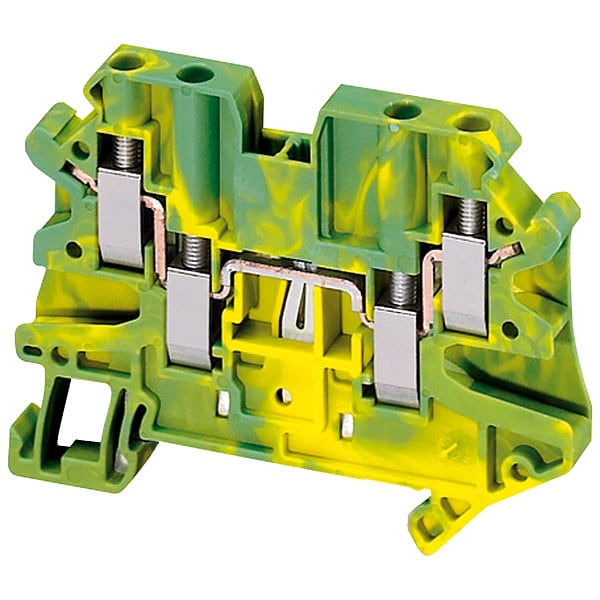

Schneider Electric Terminal Block, Grounding, 1 Pole, 20 A, 150 V, 12 AWG, Green, Yellow NSYTRV44PE - main

Terminal Block, Grounding, 1 Pole, 20 A, 150 V, 12 AWG, Green, Yellow

  • Mfr # NSYTRV44PE

  • Zoro # G905907197

product price:  $15.75
/ea
Sold in multiples of 50 for $787.50

Key Features

Terminal Block Type
Grounding
Mounting Type
Clip-On
Connection Type
Screw Clamp
Number of Poles
1
Number of Tiers
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
NSYTRV44PE
Zoro #
G905907197
UPC #
-
Country of Origin
Germany

Dimensions

For Minimum Wire Size
26 AWG
For Maximum Wire Size
12 AWG
Strip Length
9 mm
Overall Depth
47.5 mm
Overall Length
65.4 mm
Overall Width
6.2 mm
Wire Stripping Length
9 mm

Details

Item
Terminal Block
Terminal Block Type
Grounding
Mounting Type
Clip-On
Connection Type
Screw Clamp
Number of Poles
1
Number of Tiers
1
Current
20 A
Maximum Voltage
150 V
Circuit Protection Type
None
Housing Color
Green, Yellow
Standards
ATEX, CSA, cULus, DNV, EAC, GL, IECEx, LR
Material
polyamide 6/6 insulating case
Number of Connections
4
Minimum Operating Temperature
-40 Degrees F
Torque
1 N-m
UL 94 Flammability Rating
V-0
Housing Material
Polyamide 6/6
Compatible with Product Type
Special Enclosures
Maximum Operating Temperature
266 Degrees F
RoHS Compliant
Yes
Surface Resistance
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
Flame Retardance
V0 0.8 mm UL 94
Device Short Name
TRV
Dielectric Constant
3.7 at 1 MHz
Resistivity
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Dielectric Loss
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Product Name
Linergy TR
Tool Type
connection screwdriver || disconnection screwdriver
Creep Resistance
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Tightening Torque
0.6-0.8 N.m
Nominal Cross Section
4 mm²
Ambient Air Temperature For Operation
-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
Cable Cross Section
0.14-6 mm², solid || 0.2-4 mm², flexible with cable end || 0.14-6 mm², flexible without cable end
Range Compatibility
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
Connection Position
sideways
Range
Linergy
Dielectric Strength
1000 V IEC 60243-1
Number Of Terminals
4
Number Of Measurement Input
2
Terminal Block Level
1
Product Compatibility
Spacial enclosures

Description

Screw Terminal, Circuit Protection Type None, Connection Type Screw Clamp, Current 20 A, For Minimum Wire Size 26 AWG, For Maximum Wire Size 12 AWG, Housing Color Green/Yellow, Maximum Voltage 150 V, Mounting Type Clip-On, Number of Poles 1, Number of Tiers 1, For Conductor Material Not Applicable, For Conductor Type Not Applicable, For Fuse Diameter Not Applicable, For Fuse Length Not Applicable, Overall Depth 47.5 mm, Overall Length 65.4 mm, Overall Width 6.2 mm

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
