Shop SCHNEIDER ELECTRIC

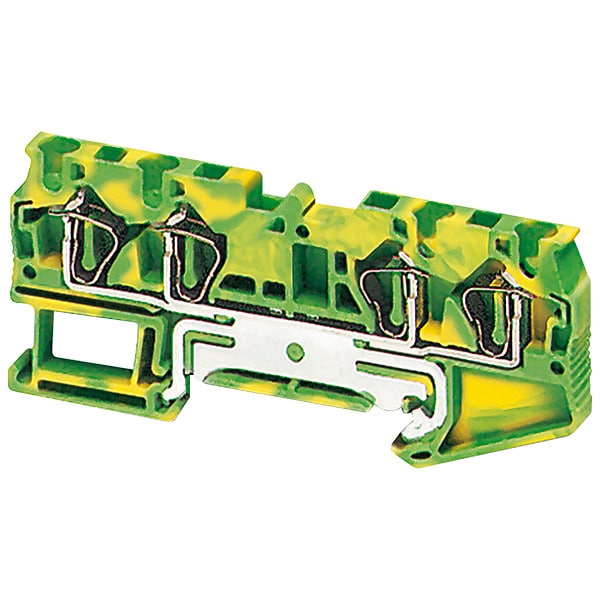

Terminal Block, Grounding, 1 Pole, 30 A, 600 V, 10 AWG, Green, Yellow

  • Mfr # NSYTRR44PE

  • Zoro # G405907130

product price:  $11.49
/ea

Key Features

Terminal Block Type
Grounding
Mounting Type
Clip-On
Connection Type
Spring Clamp
Number of Poles
1
Number of Tiers
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NSYTRR44PE
Zoro #
G405907130
UPC #
-
Country of Origin
Germany

Dimensions

For Minimum Wire Size
28 AWG
For Maximum Wire Size
10 AWG
Overall Width
0.24 in
Strip Length
10 mm
Overall Length
3.43 in
Overall Depth
1.44 in
Wire Stripping Length
10 mm

Details

Item
Terminal Block
Terminal Block Type
Grounding
Mounting Type
Clip-On
Connection Type
Spring Clamp
Number of Poles
1
Number of Tiers
1
Current
30 A
Maximum Voltage
600 V
Circuit Protection Type
None
Housing Color
Green, Yellow
Standards
ATEX, CSA, cULus, DNV, EAC, GL, IECEx, LR, VDE
Material
polyamide 6/6 insulating case
Number of Connections
4
Maximum Operating Temperature
266 Degrees F
UL 94 Flammability Rating
V-0
Compatible with Product Type
Special Enclosures
Minimum Operating Temperature
-40 Degrees F
RoHS Compliant
Yes
Housing Material
Polyamide 6/6
Surface Resistance
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
Range Compatibility
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
Dielectric Strength
1000 V IEC 60243-1
Nominal Cross Section
4 mm²
Dielectric Loss
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Product Name
Linergy TR
Connection Position
top
Resistivity
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Product Compatibility
Spacial enclosures
Ambient Air Temperature For Operation
-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
Dielectric Constant
3.7 at 1 MHz
Range
Linergy
Cable Cross Section
0.08-4 mm², solid || 0.2-4 mm², flexible with cable end || 0.08-4 mm², flexible without cable end
Flame Retardance
V0 0.8 mm UL 94
Device Short Name
TRR
Number Of Measurement Input
2
Creep Resistance
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Tool Type
connection flat screwdriver || disconnection flat screwdriver
Number Of Terminals
4
Terminal Block Level
1

Description

Terminal Block, Circuit Protection Type None, Connection Type Spring, Current Not Applicable, For Minimum Wire Size 28 AWG, For Maximum Wire Size 10 AWG, Housing Color Green, Yellow, Maximum Voltage 600 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Not Applicable, For Conductor Type Not Applicable, For Fuse Diameter Not Applicable, For Fuse Length Not Applicable, Overall Depth 1.44 in, Overall Length 3.43 in, Overall Width 0.24 in
