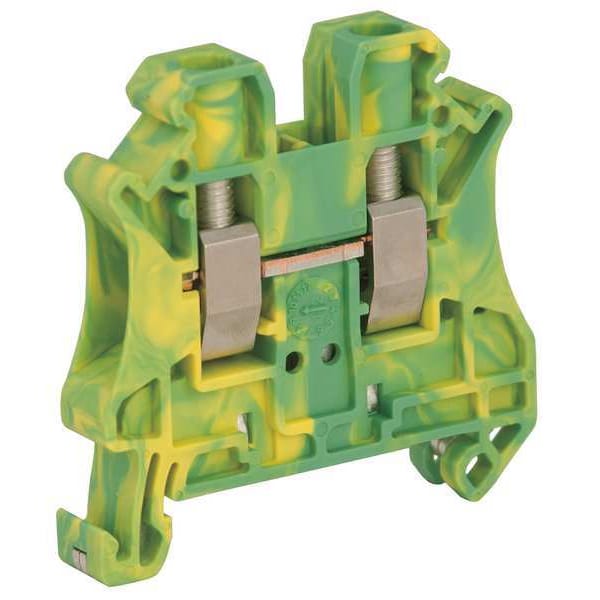

Terminal Block, Grounding, 1 Pole, 8 AWG, Screw Termination, Green, Yellow

  • Mfr # NSYTRV62PE

  • Zoro # G5235361

CAD Available
product price:  $9.25
/ea

Key Features

CAD Drawing
Terminal Block Type
Grounding
Mounting Type
DIN
Connection Type
Screw Clamp
Number of Poles
1
Number of Tiers
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
NSYTRV62PE
Zoro #
G5235361
UPC #
785901951339
Country of Origin
Germany

Dimensions

For Minimum Wire Size
24 AWG
For Maximum Wire Size
8 AWG
Channel Size
35mm
Overall Depth
1.88 in
Strip Length
3/8 in
Overall Width
0.32 in
For Channel Rail Size
35mm
Overall Length
1.88 in
Termination Screw Size
M4
Wire Stripping Length
10 mm

Details

Item
Terminal Block
Terminal Block Type
Grounding
Mounting Type
DIN
Connection Type
Screw Clamp
Number of Poles
1
Number of Tiers
2
Circuit Protection Type
None
Termination Style
Screw
For Conductor Material
Copper
For Conductor Type
Solid, Stranded
Housing Color
Green, Yellow
Standards
ATEX, CSA, CURus, DNV, GL, IECEx, LR, UL, VDE
Temp. Range
-76 Degrees to 266 Degrees F
Number of Connections
2
Pieces per Foot
37
Block Material
Polyamide 6/6
Material
polyamide 6/6 insulating case
RoHS Compliant
Yes
Torque
16 lb-in
Terminal Material
Copper
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
266 Degrees F
Housing Material
Polyamide 6/6
UL 94 Flammability Rating
V-0
2-Pole Jumper Compatibility
23NY21
End Barrier Compatibility
23NY25
Compatible Manufacturer Model Number
NSYSDR200BD, NSYTRAAB35, NSYTRAABV35, NSYTRAATM1, NSYTRAATP1, NSYTRAC22, NSYTRAC22BL, NSYTRACS6, NSYTRAFT, NSYTRAL610, NSYTRAL62, NSYTRAL63, NSYTRAL65, NSYTRAP22, NSYTRAP22BL, NSYTRASB4
Resistivity
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Ambient Air Temperature For Operation
-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
Product Name
Linergy TR
Range Compatibility
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
Number Of Measurement Input
2
Tool Type
connection screwdriver || disconnection screwdriver
Flame Retardance
V0 0.8 mm UL 94
Terminal Block Level
1
Device Short Name
TRV
Number Of Terminals
2
Dielectric Strength
1000 V IEC 60243-1
Tightening Torque
1.5-1.8 N.m
Connection Position
sideways
Nominal Cross Section
6 mm²
Dielectric Constant
3.7 at 1 MHz
Creep Resistance
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Cable Cross Section
0.2-10 mm², solid || 0.2-10 mm², flexible without cable end || 0.2-6 mm², flexible with cable end
Range
Linergy
Dielectric Loss
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Surface Resistance
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
CAD Available
Yes

Description

Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current Not Applicable, For Minimum Wire Size 24 AWG, For Maximum Wire Size 8 AWG, Housing Color Green, Yellow, Maximum Voltage Not Applicable, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 1.88 in, Overall Length 1.88 in, Overall Width 0.32 in, Standards ATEX, CSA, CURus, DNV, GL, IECEx, LR, UL, VDE
