  6. Terminal Block, Pass-Through, 1 Pole, 20 A, 1,000 V AC, 12 AWG, Screw Termination, Blue

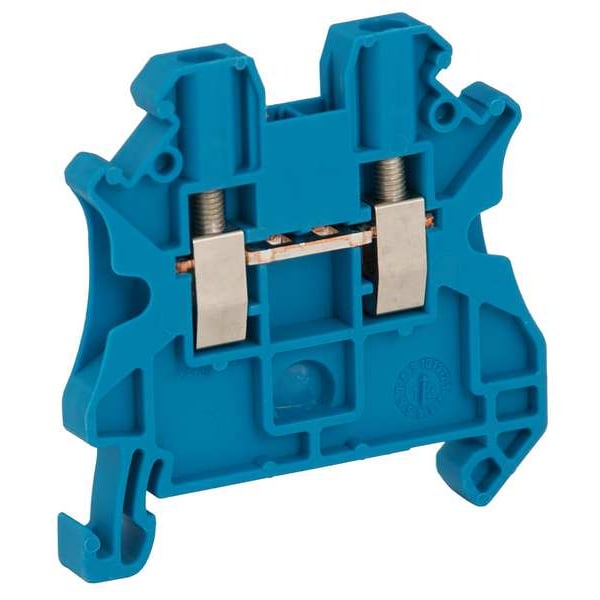

Schneider Electric Terminal Block, Pass-Through, 1 Pole, 20 A, 1,000 V AC, 12 AWG, Screw Termination, Blue NSYTRV22BL - main

CAD Drawings

Download CAD Files

Terminal Block, Pass-Through, 1 Pole, 20 A, 1,000 V AC, 12 AWG, Screw Termination, Blue

  • Mfr # NSYTRV22BL

  • Zoro # G5235386

CAD Available
product price:  $1.89
/ea

Key Features

CAD Drawing
Terminal Block Type
Pass-Through
Mounting Type
DIN
Connection Type
Screw Clamp
Number of Poles
1
Number of Tiers
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NSYTRV22BL
Zoro #
G5235386
UPC #
785901943303
Country of Origin
Germany

Dimensions

For Minimum Wire Size
26 AWG
For Maximum Wire Size
12 AWG
Channel Size
35mm
For Channel Rail Size
35mm
Strip Length
11/32 in
Overall Width
0.2 in
Overall Depth
1.88 in
Overall Length
1.88 in
Termination Screw Size
M3
Wire Stripping Length
9 mm

Details

Item
Terminal Block
Terminal Block Type
Pass-Through
Mounting Type
DIN
Connection Type
Screw Clamp
Number of Poles
1
Number of Tiers
2
Current
20 A
Maximum Voltage
1,000 V AC
Circuit Protection Type
None
Termination Style
Screw
For Conductor Material
Copper
For Conductor Type
Solid, Stranded
Housing Color
Blue
Standards
ATEX, CSA, DNV, GL, IECEx, LR, UL, VDE
Temp. Range
-76 Degrees to 266 Degrees F
End Barrier
Mfr. No. NSYTRAP22BL
Block Material
Polyamide 6/6
Pieces per Foot
57
Number of Connections
2
Material
polyamide 6/6 insulating case || copper alloy connector and screw || copper alloy commoning link || chromium-nickel steel spring
UL 94 Flammability Rating
V-0
2-Pole Jumper Compatibility
23NY19
Compatible Manufacturer Model Number
NSYSDR200BD, NSYTRAAB35, NSYTRAABV35, NSYTRAATM1, NSYTRAATP1, NSYTRAC22, NSYTRAC22BL, NSYTRACS2, NSYTRAFT, NSYTRAL210, NSYTRAL210BL, NSYTRAL210GR, NSYTRAL22, NSYTRAL220, NSYTRAL23, NSYTRAL24, NSYTRAL25, NSYTRAP22, NSYTRAP22BL, NSYTRASB4
Housing Material
Polyamide 6/6
Maximum Operating Temperature
266 Degrees F
Terminal Material
Copper
Torque
5 lb-in
RoHS Compliant
Yes
Minimum Operating Temperature
-40 Degrees F
Range
Linergy
Product Name
Linergy TR
Cable Cross Section
0.14-4 mm², solid with cable end || 0.2-2.5 mm², flexible with cable end || 0.14-4 mm², solid without cable end || 0.14-4 mm², flexible without cable end
Number Of Terminals
2
Connection Position
sideways
Nominal Cross Section
2.5 mm²
Dielectric Constant
3.7 at 1 MHz
Number Of Measurement Input
2
Range Compatibility
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys || Thalassa Thalassa TBP || Thalassa Thalassa TBS
Device Short Name
TRV
Ambient Air Temperature For Operation
-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
Dielectric Loss
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Resistivity
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Flame Retardance
V0 0.8 mm UL 94
Tool Type
connection screwdriver || disconnection screwdriver
Tightening Torque
0.5-0.6 N.m
Creep Resistance
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Terminal Block Level
1
[Ue] Rated Operational Voltage
1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus
Dielectric Strength
1000 V IEC 60243-1
Surface Resistance
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
CAD Available
Yes

Description

Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current 20 A, For Minimum Wire Size 26 AWG, For Maximum Wire Size 12 AWG, Housing Color Blue, Maximum Voltage 1,000 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 1.88 in, Overall Length 1.88 in, Overall Width 0.2 in, Standards ATEX, CSA, DNV, GL, IECEx, LR, UL, VDE, Terminal Block Type Pass-Through
