  6. Terminal Block, Pass-Through, 1 Pole, 20 A, 600 V, 12 AWG, Green, Yellow

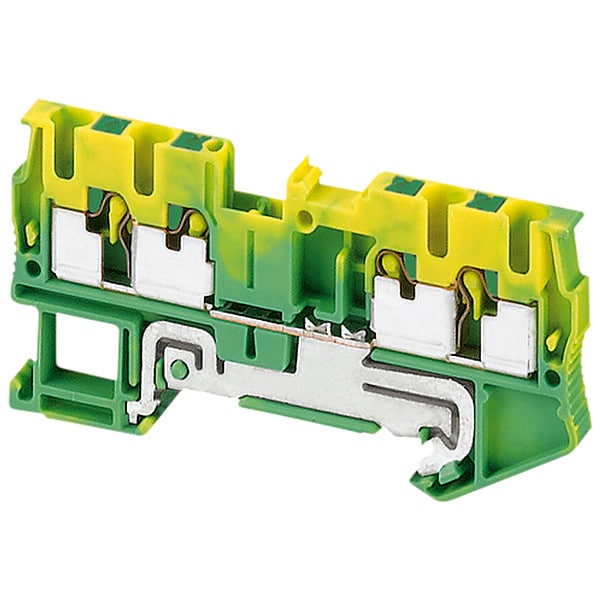

Schneider Electric Terminal Block, Pass-Through, 1 Pole, 20 A, 600 V, 12 AWG, Green, Yellow NSYTRP24PE - main

Terminal Block, Pass-Through, 1 Pole, 20 A, 600 V, 12 AWG, Green, Yellow

  • Mfr # NSYTRP24PE

  • Zoro # G505907207

product price:  $8.49
/ea
Sold in multiples of 50 for $424.50

Key Features

Terminal Block Type
Pass-Through
Mounting Type
Clip-On
Connection Type
Push-In
Number of Poles
1
Number of Tiers
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NSYTRP24PE
Zoro #
G505907207
UPC #
-
Country of Origin
China

Dimensions

For Minimum Wire Size
24 AWG
For Maximum Wire Size
12 AWG
Strip Length
10 mm
Overall Depth
36.5 mm
Overall Length
72 mm
Overall Width
5.2 mm
Wire Stripping Length
10 mm

Details

Item
Terminal Block
Terminal Block Type
Pass-Through
Mounting Type
Clip-On
Connection Type
Push-In
Number of Poles
1
Number of Tiers
1
Current
20 A
Maximum Voltage
600 V
Circuit Protection Type
None
Housing Color
Green, Yellow
Standards
ATEX, CSA, cULus, EAC, GL, IECEx, LR, VDE
Material
polyamide 6/6 insulating case
Number of Connections
4
Compatible with Product Type
Special Enclosures
RoHS Compliant
Yes
UL 94 Flammability Rating
V-0
Housing Material
Polyamide 6/6
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
266 Degrees F
Creep Resistance
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Number Of Terminals
4
Dielectric Loss
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Product Compatibility
Spacial enclosures
Dielectric Strength
1000 V IEC 60243-1
Range Compatibility
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
Dielectric Constant
3.7 at 1 MHz
Tool Type
disconnection flat screwdriver || connection without tool
Connection Position
top
Device Short Name
TRP
Number Of Measurement Input
2
Ambient Air Temperature For Operation
-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
Flame Retardance
V0 0.8 mm UL 94
Product Name
Linergy TR
Resistivity
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Terminal Block Level
1
Surface Resistance
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
Nominal Cross Section
2.5 mm²
Cable Cross Section
0.08-4 mm², solid || 0.08-2.5 mm², flexible without cable end || 0-2.5 mm², flexible with cable end
Range
Linergy

Description

Push-In Terminal, Circuit Protection Type None, Connection Type Push-In, Current 20 A, For Minimum Wire Size 24 AWG, For Maximum Wire Size 12 AWG, Housing Color Green/Yellow, Maximum Voltage 600 V, Mounting Type Clip-On, Number of Poles 1, Number of Tiers 1, For Conductor Material Not Applicable, For Conductor Type Not Applicable, For Fuse Diameter Not Applicable, For Fuse Length Not Applicable, Overall Depth 36.5 mm, Overall Length 72 mm, Overall Width 5.2 mm
