  6. Terminal Block, Pass-Through, 1 Pole, 30 A, 1,000 V AC, 10 AWG, Green

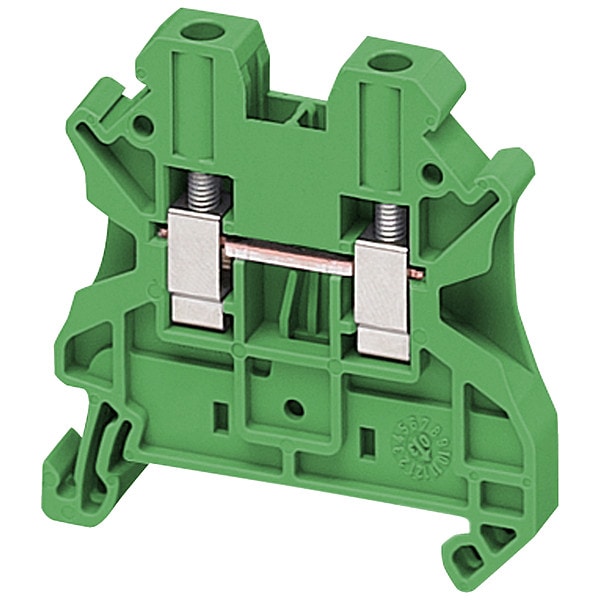

Schneider Electric Terminal Block, Pass-Through, 1 Pole, 30 A, 1,000 V AC, 10 AWG, Green NSYTRV42GN - main

Terminal Block, Pass-Through, 1 Pole, 30 A, 1,000 V AC, 10 AWG, Green

  • Mfr # NSYTRV42GN

  • Zoro # G305907223

product price:  $1.95
/ea
Sold in multiples of 50 for $97.50

Key Features

Terminal Block Type
Pass-Through
Mounting Type
Clip-On
Connection Type
Screw Clamp
Number of Poles
1
Number of Tiers
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NSYTRV42GN
Zoro #
G305907223
UPC #
-
Country of Origin
China

Dimensions

For Minimum Wire Size
26 AWG
For Maximum Wire Size
10 AWG
Overall Width
6.2 mm
Overall Length
47.7 mm
Overall Depth
47.5 mm
Strip Length
9 mm
Wire Stripping Length
9 mm

Details

Item
Terminal Block
Terminal Block Type
Pass-Through
Mounting Type
Clip-On
Connection Type
Screw Clamp
Number of Poles
1
Number of Tiers
1
Current
30 A
Maximum Voltage
1,000 V AC
Circuit Protection Type
None
Housing Color
Green
Standards
ATEX, CSA, cULus, DNV, EAC, GL, IECEx, LR, VDE
Number of Connections
2
Material
polyamide 6/6 insulating case || copper alloy connector and screw || copper alloy commoning link || chromium-nickel steel spring
UL 94 Flammability Rating
V-0
Maximum Operating Temperature
266 Degrees F
Housing Material
Polyamide 6/6
Compatible with Product Type
Special Enclosures
RoHS Compliant
Yes
Minimum Operating Temperature
-40 Degrees F
Torque
1 N-m
Flame Retardance
V0 0.8 mm UL 94
Dielectric Strength
1000 V IEC 60243-1
Dielectric Loss
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Product Compatibility
Spacial enclosures
Range
Linergy
Surface Resistance
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
Number Of Terminals
2
Device Short Name
TRV
Cable Cross Section
0.14-6 mm², solid with cable end || 0.2-4 mm², flexible with cable end || 0.2-6 mm², solid without cable end || 0.2-6 mm², flexible without cable end
Tool Type
connection screwdriver || disconnection screwdriver
Product Name
Linergy TR
Number Of Measurement Input
2
Terminal Block Level
1
[Ue] Rated Operational Voltage
1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus
Creep Resistance
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Tightening Torque
0.6-0.8 N.m
Nominal Cross Section
4 mm²
Ambient Air Temperature For Operation
-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
Dielectric Constant
3.7 at 1 MHz
Range Compatibility
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
Connection Position
sideways
Resistivity
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30

Description

Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current 30 A, For Minimum Wire Size 26 AWG, For Maximum Wire Size 10 AWG, Housing Color Green, Maximum Voltage 600 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Not Applicable, For Conductor Type Not Applicable, For Fuse Diameter Not Applicable, For Fuse Length Not Applicable, Overall Depth 1.87 in, Overall Length 1.88 in, Overall Width 0.24 in
