  11. TeSys Deca thermal overload relays, 23.32A, class 20

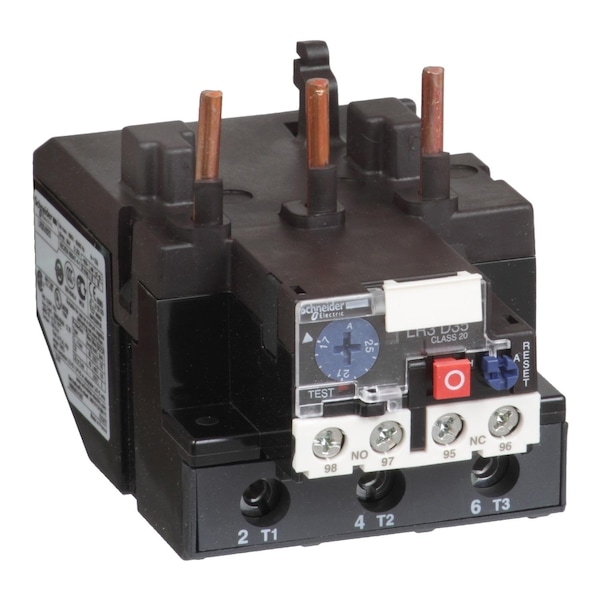

Schneider Electric TeSys Deca thermal overload relays, 23.32A, class 20 LR3D3553 - main

TeSys Deca thermal overload relays, 23.32A, class 20

  • Mfr # LR3D3553

  • Zoro # G1965877

product price: $149.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Maximum Overload Relay Current Setting
32 A
Trip Class
20
Overload Protection Type
Thermal
Standards
EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LR3D3553
Zoro #
G1965877
UPC #
-
Country of Origin
France

Dimensions

Width
75 mm
Depth
121 mm

Details

Item
Overload Relay
Auxiliary Contact Form
1NC/1NO
Maximum Overload Relay Current Setting
32 A
Trip Class
20
Overload Protection Type
Thermal
Standards
EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5
Product Name
TeSys LRD, TeSys Deca
Network Frequency
0...400 Hz
Thermal Protection Adjustment Range
23-32 A
Dielectric Strength
1.89 kV 50 Hz IEC 60947-1
Climatic Withstand
IACS E10
Associated Fuse Rating
4 A gG for signalling circuit, 4 A BS for signalling circuit
Flame Retardance
V1 conforming to UL 94
Thermal Overload Class
class 20 IEC 60947-4-1
Mechanical Robustness
vibrations6 Gn IEC 60068-2-6, shocks15 Gn for 11 ms IEC 60068-2-7
Product Compatibility
LC1D80, LC1D95
Control Type
Red push-button stop, Blue push-button reset
Ambient Air Temperature For Storage
-60-70°C
Tightening Torque
control circuit 1.7 N.m screw clamp terminals, power circuit 9 N.m screw clamp terminals
Network Type
DC, AC
Device Short Name
LR3D
Range
TeSys
Connections - Terminals
power circuit screw clamp terminals 1 4-35 mm² flexible without cable end, power circuit screw clamp terminals 1 4-35 mm² flexible with cable end, power circuit screw clamp terminals 1 4-35 mm² solid without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end
Relay Application
motor protection
Tripping Threshold
1.14 +/- 0.06 Ir IEC 60947-4-1
Ambient Air Temperature For Operation
-20-60°C without derating IEC 60947-4-1
Phase Failure Sensitivity
tripping current 130 % of Ir on two phase, the last one at 0
Product Or Component Type
non differential thermal overload relay
Product Certifications
IEC || UL || CSA || CCC || EAC || BV || DNV-GL || LROS (Lloyds register of shipping) || UKCA
Mounting Style
plate, with specific accessories, rail, with specific accessories, under contactor
Maximum Operating Temperature
140 Degrees F
Conventional Free Air Thermal Current
5 A signalling circuit
Rated Operational Voltage
690 V AC 0...400 Hz power circuit IEC 60947-4-1
IP Rating
IP20
Minimum Operating Temperature
-4 Degrees F
Rated Insulation Voltage
power circuit 1000 V IEC 60947-4-1, power circuit 600 V CSA, power circuit 600 V UL
Trip Clss
20

Description

2332A Class 20 Iec Overload Relay
