This item is Discontinued.

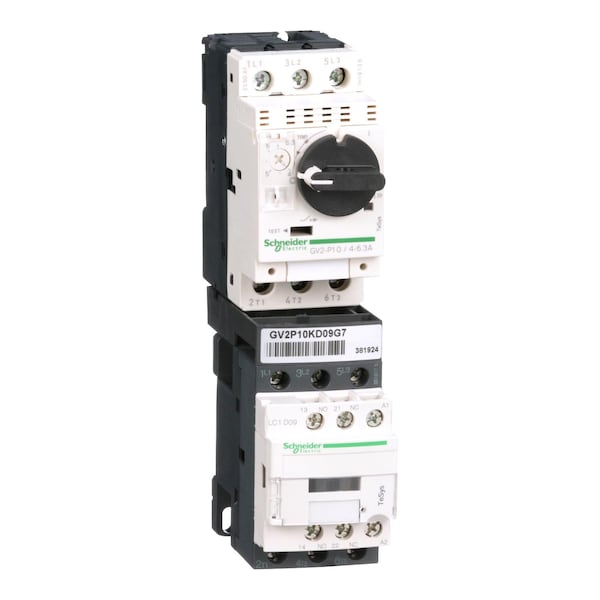

Schneider Electric TESYS motor starter kit, LC1D09G7 contac GV2P10KD09G7

TESYS motor starter kit, LC1D09G7 contac (Discontinued)

  • Mfr # GV2P10KD09G7
  • Zoro # G4591550
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
GV2P10KD09G7
Zoro #
G4591550
UPC #
-
Country of Origin
Thailand

Dimensions

Depth
97 mm, 86 mm
Height
77 mm, 89 mm
Width
45 mm

Details

Item
TESYS motor starter kit,LC1D09G7 contac
Standards
IEC 60947-4-1 || CSA C22.2 || VDE 0113 || VDE 0660 || UL 508 || IEC 60947-1 || NF C 79-130 || NF C 63-120 || EN 60204 || IEC 60947-2 || NF C 63-650, CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2, 6 kV IEC 60947
Operating Time
12...22 ms closing || 4...19 ms opening
Motor Power Kw
2.2-2.2 kW 400/415 V AC 50/60 Hz || 3-3 kW 500 V AC 50/60 Hz || 4-4 kW 690 V AC 50/60 Hz, 2.2 kW 220...230 V AC 50/60 Hz AC-3) || 4 kW 380...400 V AC 50/60 Hz AC-3) || 4 kW 415...440 V AC 50/60 Hz AC-3) || 5.5 kW 500 V AC 50/60 Hz AC-3) || 5.5 kW 660...690 V AC 50/60 Hz AC-3) || 2.2 kW 400 V AC 50/60 Hz AC-4)
Signalling Circuit Frequency
25...400 Hz
Inrush Power In Va
70-70 VA 60 Hz 0.75 20°C) || 70-70 VA 50 Hz 0.75 20°C)
Ik Degree Of Protection
IK04
Electrical Durability
100000 cycles AC-3 440 V, 0.6 Mcycles 25 A AC-1 <= 440 V || 2 Mcycles 9 A AC-3 <= 440 V
Coil Technology
without built-in suppressor module
Mounting Support
rail || plate
Ip Degree Of Protection
IP20 IEC 60529, IP20 front face IEC 60529
Climatic Withstand
IACS E10
Magnetic Tripping Current
78-78 A
Power Dissipation Per Pole
2.5 W, 1.56 W AC-1 || 0.2 W AC-3
Network Frequency
50/60 Hz IEC 60947-4-1
Utilisation Category
AC-3 || AC-1 || AC-4, AC-3 IEC 60947-4-1 || category A IEC 60947-2
Irms Rated Making Capacity
250 A 440 V power circuit IEC 60947 || 140 A AC signalling circuit IEC 60947-5-1 || 250 A DC signalling circuit IEC 60947-5-1
Motor Starter Type
direct on-line contactor
Phase Failure Sensitivity
yes IEC 60947-4-1
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Operating Position
any position
Ambient Air Temperature For Operation
-5-60°C, -20-60°C
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with 2 x M4 screws)
Range
TeSys
Maximum Horse Power Rating
1 hp 230/240 V at AC 50/60 Hz for 1 phase || 2 hp 200/208 V at AC 50/60 Hz for 3 phase || 2 hp 230/240 V at AC 50/60 Hz for 3 phase || 5 hp 460/480 V at AC 50/60 Hz for 3 phase || 7.5 hp 575/600 V at AC 50/60 Hz for 3 phase || 0.33 hp 115 V at AC 50/60 Hz for 1 phase
Connections - Terminals
power circuit screw clamp terminals 1 1-4 mm²flexible without cable end || power circuit screw clamp terminals 2 1-4 mm²flexible without cable end || power circuit screw clamp terminals 1 1-4 mm²flexible with cable end || power circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || power circuit screw clamp terminals 1 1-4 mm²solid without cable end || power circuit screw clamp terminals 2 1-4 mm²solid without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²solid without cable end || control circuit screw clamp terminals 2 1-4 mm²solid without cable end, screw clamp terminals 2 1-6 mm² solid || screw clamp terminals 2 1.5-6 mm² flexible without cable end || screw clamp terminals 2 1-4 mm² flexible with cable end
Protective Cover
with
Maximum Operating Rate
25 cyc/h, 3600 cyc/h 60°C
Tightening Torque
1.7 N.m screw clamp terminals, power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2
[Ics] Rated Service Short-Circuit Breaking Capacity
100 % 690 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2
Control Circuit Voltage Limits
drop-out 0.3...0.6 Uc AC 50/60 Hz 60°C) || operational 0.8...1.1 Uc AC 50 Hz 60°C) || operational 0.85...1.1 Uc AC 60 Hz 60°C)
Minimum Switching Voltage
17 V signalling circuit
Breaking Capacity
100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 6 kA Icu 690 V AC 50/60 Hz IEC 60947-2
[Ui] Rated Insulation Voltage
power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL, 690 V AC 50/60 Hz IEC 60947-2
Line Rated Current
6.3 A
Hold-In Power Consumption In Va
7.5-7.5 VA 60 Hz 0.3 20°C) || 7-7 VA 50 Hz 0.3 20°C)
Contact Compatibility
M2
Protective Treatment
TH
Heat Dissipation
2-3 W 50/60 Hz
Product Certifications
DNV || UL 508 type E || LROS (Lloyds register of shipping) || EZU || CCC || UL || TSE || RINA || CSA || EAC || ATEX || BV || GL, RINA || DNV || GOST || LROS (Lloyds register of shipping) || UL || GL || BV || CCC || CSA
Pollution Degree
3
[Ie] Rated Operational Current
9 A 60°C) <= 440 V AC AC-3 power circuit || 25 A 60°C) <= 440 V AC AC-1 power circuit
Control Type
rotary knob
Rated Duty
continuous IEC 60947-4-1
Minimum Switching Current
5 mA signalling circuit
Trip Unit Technology
thermal-magnetic
Associated Fuse Rating
10 A gG signalling circuit IEC 60947-5-1 || 25 A gG <= 690 V type 1 power circuit || 20 A gG <= 690 V type 2 power circuit
Pole Contact Composition
3 NO
Average Impedance
2.5 mOhm - Ith 25 A 50 Hz power circuit
Rated Breaking Capacity
250 A 440 V power circuit IEC 60947
[Ith] Conventional Free Air Thermal Current
25 A 60°C power circuit || 10 A 60°C signalling circuit, 6.3 A IEC 60947-4-1
Trip Unit Rating
4-6.3 A
Contactor Application
resistive load || motor control
Mechanical Robustness
vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor open10 Gn for 11 ms || shocks contactor closed15 Gn for 11 ms
Operating Altitude
6561.68 ft (2000 m), 9842.52 ft (3000 m) without derating
Fire Resistance
850°C IEC 60695-2-1
[Uc] Control Circuit Voltage
120 V AC 50/60 Hz
Overvoltage Category
III
Control Circuit Type
AC 50/60 Hz
Power Range
0-0.5 kW 100-120 V 3 phase || 0.55-1 kW 100-120 V 3 phase || 0-0.5 kW 200-240 V 3 phase || 0.55-1 kW 200-240 V 3 phase || 1.1-2 kW 200-240 V 3 phase || 0-0.5 kW 380-440 V 3 phase || 0.55-1 kW 380-440 V 3 phase || 1.1-2 kW 380-440 V 3 phase || 2.2-3 kW 380-440 V 3 phase || 4-6 kW 380-440 V 3 phase || 0-0.5 kW 480-500 V 3 phase || 0.55-1 kW 480-500 V 3 phase || 1.1-2 kW 480-500 V 3 phase || 2.2-3 kW 480-500 V 3 phase || 4-6 kW 480-500 V 3 phase || 0-0.5 kW 525-690 V 3 phase || 0.55-1 kW 525-690 V 3 phase || 1.1-2 kW 525-690 V 3 phase || 2.2-3 kW 525-690 V 3 phase || 4-6 kW 525-690 V 3 phase
[Icw] Rated Short-Time Withstand Current
105 A 40°C - 10 s power circuit || 210 A 40°C - 1 s power circuit || 30 A 40°C - 10 min power circuit || 61 A 40°C - 1 min power circuit || 100 A - 1 s signalling circuit || 120 A - 500 ms signalling circuit || 140 A - 100 ms signalling circuit
[Ue] Rated Operational Voltage
power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC, 690 V AC 50/60 Hz IEC 60947-2
Ambient Air Temperature For Storage
-40-80°C, -60-80°C
Mechanical Durability
100000 cycles, 15 Mcycles
Flame Retardance
V1 conforming to UL 94
Permissible Ambient Air Temperature Around The Device
-40-70°C at Uc
Product Or Component Type
motor starter
Auxiliary Contact Composition
1 NO + 1 NC
Suitability For Isolation
yes IEC 60947-1
Insulation Resistance
> 10 MOhm signalling circuit
Auxiliary Contacts Type
mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
Poles Description
3P
Non-Overlap Time
1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact

Description

TESYS motor starter kit,LC1D09G7 contac
