Shop SCHNEIDER ELECTRIC

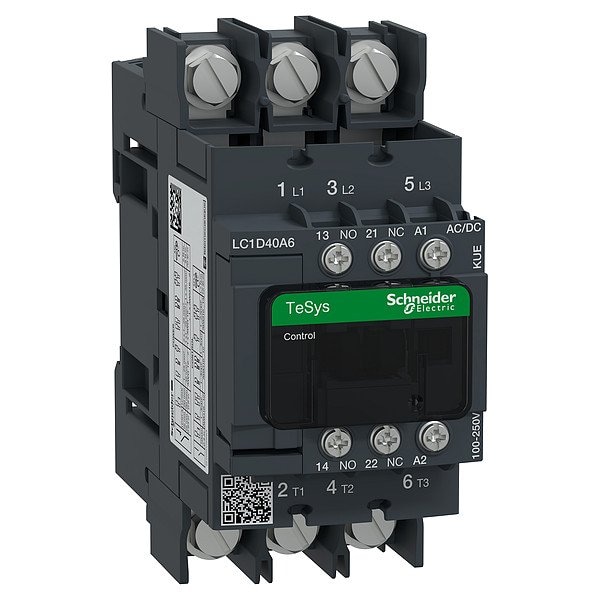

TeSysCTR3P40A AC3NO+NC100-250V ACDC LUGS

  • Mfr # LC1D40A6KUE

  • Zoro # G022823660

product price:
$
499.99
/ea
Free Shipping & Returns

Key Features

Terminal Connection Type
Box Lugs
Maximum Voltage Rating
480V AC
Embedded Surge Suppressor
Yes
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Includes Auxiliary Contacts
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LC1D40A6KUE
Zoro #
G022823660
UPC #
-
Country of Origin
Multiple
Terminal Connection Type
Box Lugs
Maximum Voltage Rating
480V AC
Embedded Surge Suppressor
Yes
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Includes Auxiliary Contacts
Yes
Maximum Operating Temperature
140 Degrees F
Coil Voltage
100-250V AC/DC
Frequency
50/60 Hz
NEMA Enclosure Rating
No Enclosure
Contactor Style
IEC
Auxiliary Contact Form
1NO/1NC
Horsepower @ Three Phase - 480V AC
30 hp
Full Load Current - Inductive
40 A
Phase
Three
Full Load Current - Resistive
Not Rated
Electrical Operating Durability
500,000, 850,000
Minimum Operating Temperature
-40 Degrees F
Item
IEC Contactor
Number of Auxillary Contacts
2
Reversing Capability
Non-Reversing
Number of Poles
3
Mechanical Operating Durability
6,000,000
Number of Normally Open Main Contacts
3
Series
Tesys Deca
Mounting Style
DIN Rail, Plate
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS (Lloyds Register of Shipping), UKCA, UL 60947-4-1, UL Listed

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 100-250V AC/DC, Number of Poles 3, Full Load Current - Inductive 40 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 4.8 in, Overall Width 2.17 in, Terminal Connection Type Box Lugs, Frame Size Not Applicable, Mounting Style DIN Rail, Plate, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC
