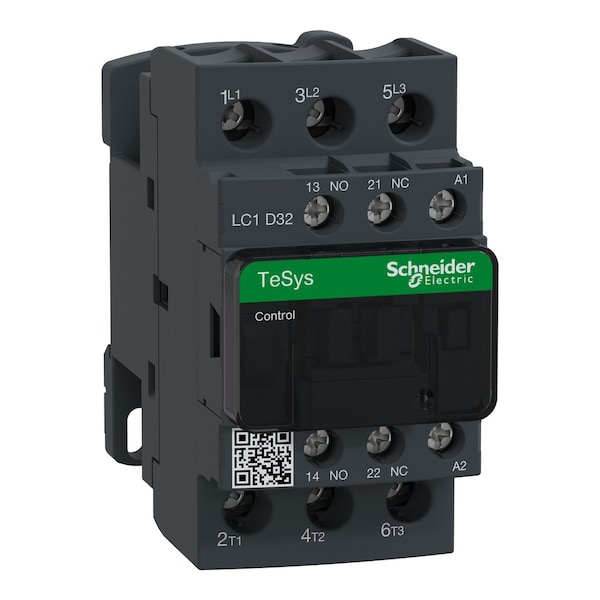

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 600V AC, 3 P, Non-Reversing, Screw Clamp LC1D32X7 - main

IEC Magnetic Contactor, 1NC/1NO, 600V AC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D32X7

  • Zoro # G110070273

product price:  $203.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
600V AC
Number of Poles
3
Full Load Amps-Inductive
150 A
Full Load Amps-Resistive
200 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1D32X7
Zoro #
G110070273
UPC #
3389110352009
Country of Origin
France

Dimensions

Overall Width
1.77 in
Overall Depth
3.62 in
Overall Height
3.35 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
600V AC
Number of Poles
3
Full Load Amps-Inductive
150 A
Full Load Amps-Resistive
200 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
Series
TeSys Deca
IP Rating
IP20
Resistance Properties
Fire Resistant, Insulation Resistant
Horsepower @ Three Phase - 600V AC
30 hp
Electrical Operating Durability
1,400,000 (AC-1), 1,650,000 (AC-3), 1,650,000 (AC-3e)
Mounting Style
DIN Rail, Plate
Embedded Surge Suppressor
No
Frequency
50/60 Hz
Mechanical Operating Durability
15,000,000
Horsepower @ Single Phase - 120V AC
2 hp
Contactor Style
IEC
Includes Auxiliary Contacts
Yes
Phase
Three
Maximum Voltage Rating
690V AC
Horsepower @ Single Phase - 240V AC
5 hp
Horsepower @ Three Phase - 480V AC
20 hp
Horsepower @ Three Phase - 208V AC
7 1/2 hp
Full Load Current - Resistive
200 A
Horsepower @ Three Phase - 240V AC
10 hp
Full Load Current - Inductive
32 A

Description

Schneider Electric’s IEC Magnetic Contactor is a 3-pole, non-reversing, coil-driven switch rated for use in control panel applications within specified parameters. It has a 600V AC coil rating; includes auxiliary contacts (1NC/1NO); utilizes screw clamp terminals. The unit mounts on DIN rail or plate and is part of the TeSys Deca series, rated for operation up to 690V AC within specified conditions and 50/60 Hz operation. It carries IP20 protection.

Key features

  • Poles: 3 (three-pole configuration)
  • Coil Voltage: 600V AC
  • Auxiliary Contacts: 2 total (1NC/1NO)
  • Reversing Capability: non-reversing configuration as specified
  • Mounting Style: DIN Rail, Plate
  • Terminal Connection Type: Screw Clamp
  • Maximum Voltage Rating: rated for operation up to 690V AC within specified conditions
  • Frequency: 50/60 Hz
  • IP Rating: IP20
  • Series: TeSys Deca
  • Mechanical Operating Durability: mechanical durability tested to approximately 15 million cycles under standard conditions
  • Electrical Operating Durability: electrical durability ratings are based on standardized testing conditions for respective load types
  • Phase: Three
  • Standards: CSA C22.2 No 14; EN 60947-4-1; EN 60947-5-1; IEC 60335-1; IEC 60947-4-1; IEC 60947-5-1; UL 508
  • Resistance Properties: Fire Resistant, Insulation Resistant
  • Overall Dimensions: 3.62 in (depth) × 3.35 in (height) × 1.77 in (width)

    • Restrictions
