This item is Discontinued.

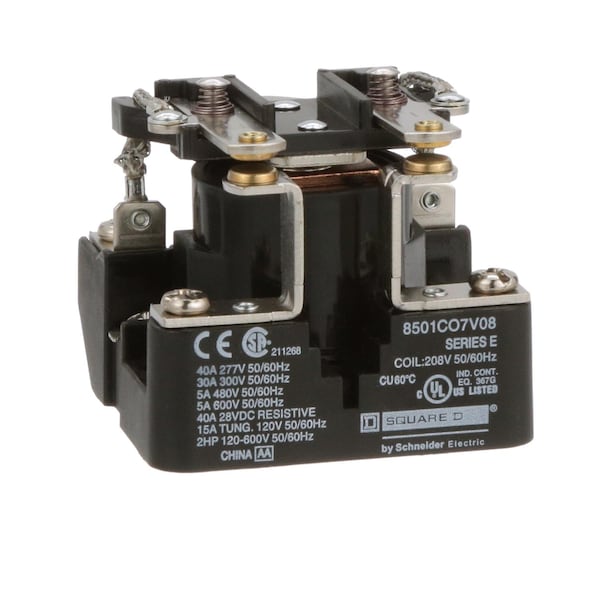

Schneider Electric Through Panel, Open Power Relay, Square, 30 A, 6, Screw 8501CO7V08

Through Panel, Open Power Relay, Square, 30 A, 6, Screw (Discontinued)

  • Mfr # 8501CO7V08
  • Zoro # G3465656
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8501CO7V08
Zoro #
G3465656
UPC #
785901059578
Country of Origin
China

Dimensions

Overall Height - Relay
2.43 in
Body Height
2.49 in
Body Depth
1.07 in
Body Width
2.5 in
Overall Depth
1.95 in

Details

Item
Open Power Relay
Mounting Style
Through Panel
Electrical Connection
Screw
Base Shape
Square
Number of Pins
6
Coil Voltage
208V AC
Current Rating
30 A
Contact Form
DPST-NO
Contact Rating (AC)
30 A @ 300V
Features
Durable Open-Frame Construction, Green Premium Product
Standards
CE Certified, CSA Certified, UL File No. E78351 CCN NLDX
Contact Material
Copper
HP @ 240V
1 1/2
Power Consumption - Relay
10.0 VA
Hz - Electrical
60 Hz
HP @ 120V
1 1/2
For Use With
Conveyor and Material Handling Applications, Electric Heater, Pumping
Series
8501C Series
Status Indicator
No Indicator
Input Voltage
208V AC
Minimum Operating Temperature
-22 Degrees F
Motor Rated
Yes
Maximum Switching Voltage
600V AC
Horsepower @ 120V AC
1 1/2 hp
Power Consumption
10 VA
Frequency
60 Hz
Maximum Operating Temperature
122 Degrees F
Horsepower @ 240V AC
1 1/2 hp
Sealing
Open
Switching Voltage
600 V AC
Contact Rating
30 A

Description

Open Power Relay, Base Shape Square, Coil Voltage 208V AC, Contact Form DPST-NO, Current Rating 30 A, Electrical Connection Screw Clamp, Flat Pin Width Not Applicable, Number of Pins 6, Sealing Open, Status Indicator No Indicator, Contact Rating (AC) 30 A @ 300V, Horsepower @ 120V AC 1 1/2 hp, Horsepower @ 240V AC 1 1/2 hp, Mounting Style Through Panel, Body Depth 1.07 in, Body Height 2.49 in, Body Width 2.5 in, Contact Material Copper
