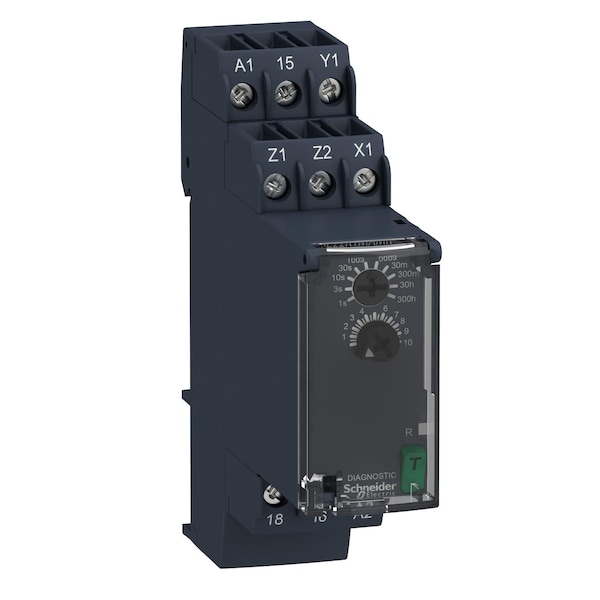

Number of Delay Functions
3
Minimum Time Setting
0.05 sec
Maximum Time Setting
300 hr
Coil Voltage
24 to 240V AC/DC
Contact Rating (AC)
8 A @ 250V AC-1
Contact Rating (DC)
2 A @ 24V DC-1
Min. On/Off Pulse
100 ms with load in parallel || 30 ms
Adjustment Method - Timer
rotary knob || diagnostic button || potentiometer external
Electrical Connection
35 mm DIN rail conforming to EN/IEC 60715
Standards
UL Listed || CSA|| CE
Power Consumption - Relay
3-3 VA 240 V AC; 1.5 W 240 V DC
Input or Control Voltage Range
0.85...1.1 Us
Setting Accuracy of Time Delay
+/- 10 % of full scale 25°C IEC 61812-1
Electromagnetic Compatibility
fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11
Minimum Switching Current
10 mA 5 V DC
Shock Resistance
15 gn not operating 11 ms IEC 60068-2-27, 5 gn in operation 11 ms IEC 60068-2-27
Temperature Drift
+/- 0.05 %/°C
Repeat Accuracy
+/- 0.5 % IEC 61812-1
Status Led
Green LED backlight steady)dial pointer indication, Yellow LED steady)output relay energised, Yellow LED fast flashing)timing in progress and output relay de-energised, Yellow LED slow flashing)timing in progress and output relay energised
Supply Frequency
50...60 Hz +/- 5 %
[Uimp] Rated Impulse Withstand Voltage
5 kV 1.2-50µs IEC 60664-1
Electrical Durability
100000 cycles, 8 A at 250 V, AC-1, 100000 cycles, 2 A at 24 V, DC-1
Dielectric Strength
2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
Mounting Support
35 mm DIN rail conforming to IEC 60715
Ambient Air Temperature For Storage
-40-70°C
Immunity To Microbreaks
10 ms
Overvoltage Category
III IEC 60664-1
Ip Degree of Protection
IP40 housing: conforming to IEC 60529, IP50 front face: conforming to IEC 60529, IP20 terminals: conforming to IEC 60529
Power Consumption In W
1.5 W 240 V DC
Ambient Air Temperature For Operation
-20-60°C
Tightening Torque
0.6-1 N.m IEC 60947-1
Creepage Distance
4 kV/3 IEC 60664-1
Maximum Delay Response
100 ms
Switching Capacity In Va
2000 VA
Mounting Position
any position
Voltage Drift
+/- 0.2 %/V
Nominal Output Current
8A
Power Consumption In Va
3-3 VA 240 V AC
Pollution Degree
3 IEC 60664-1
Insulation Resistance
100 MOhm 500 V DC IEC 60664-1
[Us] Rated Supply Voltage
24...240 V AC/DC 50/60 Hz
Vibration Resistance
20 m/s² 10-150 Hz)IEC 60068-2-6
Connections - Terminals
screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Relative Humidity
95-95 % 25-55°C
Maximum Switching Current
8A
Range of Product
Harmony Timer Relays
Reset Time
120 ms on de-energisation
Housing Material
self-extinguishing
Mechanical Durability
10000000 cycles
