Shop SCHNEIDER ELECTRIC

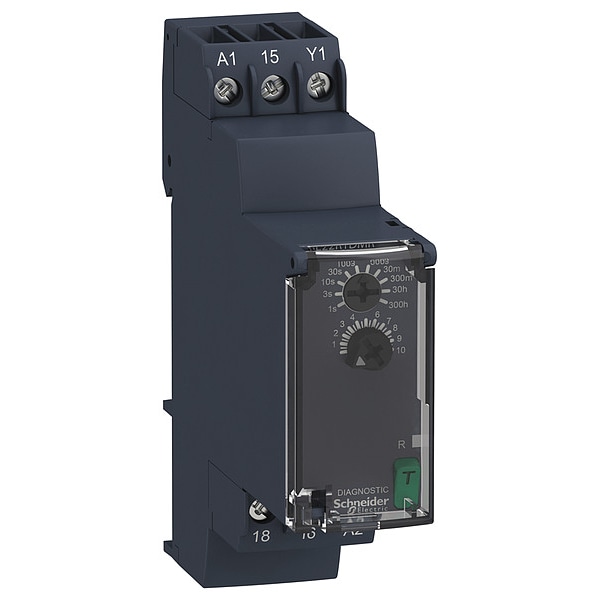

Time Delay Relay, Square, Symmetrical Flashing, 1 Functions 240V AC, SPDT

  • Mfr # RE22R1DMR

  • Zoro # G3460686

product price:
$
73.25
/ea

Key Features

Delay Function
Symmetrical Flashing
Number of Delay Functions
1
Minimum Time Setting
0.05 sec
Maximum Time Setting
300 hr
Base Shape
Square
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
RE22R1DMR
Zoro #
G3460686
UPC #
785901500995
Country of Origin
Indonesia
Item
Time Delay Relay
Delay Function
Symmetrical Flashing
Number of Delay Functions
1
Minimum Time Setting
0.05 sec
Maximum Time Setting
300 hr
Base Shape
Square
Number of Pins
6
Coil Voltage
240V AC
Current Rating
8 A
Contact Form
SPDT
Contact Rating (AC)
8 A @ 250V
Contact Rating (DC)
8 A @ 24V
Standards
IEC 61812-1, UL 508
Type of Output
relay
Min. On/Off Pulse
100 ms with load in parallel || 30 ms
Input Voltage
24 to 240V AC/DC
Contact Material
Cadmium Free
Status Indicator
LED
Input or Control Voltage Range
0.85...1.1 Us
Adjustment Method
Diagnostic Button, Rotary Dip Switch
Electrical Connection
Screw Terminal
Weight
3.52 oz
Maximum Operating Temperature
140 Degrees F
Mechanical Operating Durability
10,000,000
Electrical Operating Durability
100,000
Sealing
Sealed
IP Rating
IP20; IP40; IP50
Maximum Switching Voltage
250V AC
Operating Time Accuracy
+/-0.5%
Frequency
50/60 Hz
Mounting Style
DIN Rail
Power Consumption
3 VA
Minimum Operating Temperature
-4 Degrees F

Description

Time Delay Relay, Adjustment Method Diagnostic Button, Rotary Dip Switch, Base Shape Square, Coil Voltage 240V AC, Contact Form SPDT, Contact Rating (AC) 8 A @ 250V, Contact Rating (DC) 8 A @ 24V, Current Rating 8 A, Number of Delay Functions 1, Delay Function Symmetrical Flashing, Electrical Connection Screw Terminal, IP Rating IP20; IP40; IP50, Input Voltage 24 to 240V AC/DC, Minimum Time Setting 0.05 sec, Maximum Time Setting 300 hr, Number of Pins 6, Sealing Sealed, Mounting Style DIN Rail
