Shop SCHNEIDER ELECTRIC

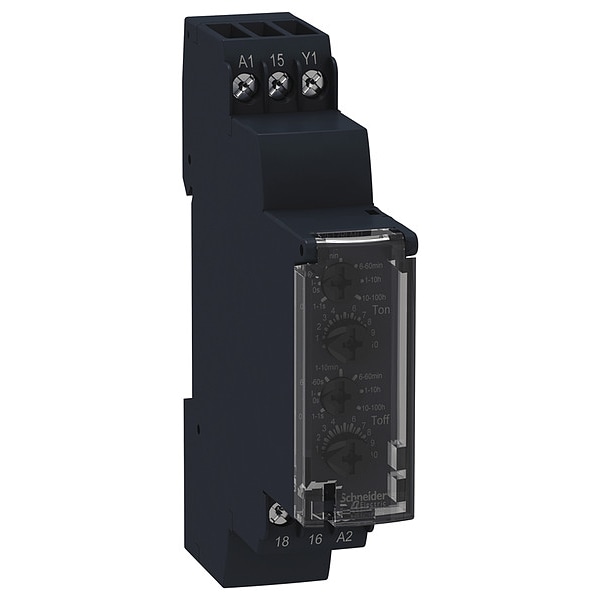

Time Delay Relay, Square, Asymmetrical Flashing, 1 Functions 240V AC

  • Mfr # RE17LLBM

  • Zoro # G3460896

product price:  $88.99
/ea

Key Features

Delay Function
Asymmetrical Flashing
Number of Delay Functions
1
Minimum Time Setting
1 sec
Maximum Time Setting
100 hr
Base Shape
Square
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
RE17LLBM
Zoro #
G3460896
UPC #
785901990598
Country of Origin
Indonesia

Dimensions

Overall Depth
3.54 in
Body Depth
2.84 in
Body Height
3.54 in
Body Width
0.69 in

Details

Item
Time Delay Relay
Delay Function
Asymmetrical Flashing
Number of Delay Functions
1
Minimum Time Setting
1 sec
Maximum Time Setting
100 hr
Base Shape
Square
Number of Pins
6
Coil Voltage
240V AC
Current Rating
0.7 A
Contact Rating (AC)
0.7 A @ 250V
Type of Output
Solid State
Input or Control Voltage Range
0.85...1.1 Us
Adjustment Method
Rotary Dip Switch
Status Indicator
LED
Input Voltage
24 to 240V AC
Standards
2004/108/EC, 2006/95/EC, CSA Certified, CULus Listed, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, GL, IEC 61812-1
Electrical Connection
Screw Terminal
Frequency
50/60 Hz
IP Rating
IP20; IP40; IP50
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-4 Degrees F
Mounting Style
DIN Rail
Power Consumption
3 VA
Electrical Operating Durability
100,000,000
Reset Method
Time-Limit Reset
Weight
2.4 oz
Sealing
Sealed
Maximum Switching Voltage
250V AC
Operating Time Accuracy
+/-0.5%
Contact Form
Solid State

Description

Time Delay Relay, Adjustment Method Rotary Dip Switch, Base Shape Square, Coil Voltage 240V AC, Contact Form Solid State, Contact Rating (AC) 0.7 A @ 250V, Contact Rating (DC) Not Applicable, Current Rating 0.7 A, Number of Delay Functions 1, Delay Function Asymmetrical Flashing, Electrical Connection Screw Terminal, IP Rating IP20; IP40; IP50, Input Voltage 24 to 240V AC, Minimum Time Setting 1 sec, Maximum Time Setting 100 hr, Number of Pins 6, Sealing Sealed, Mounting Style DIN Rail
