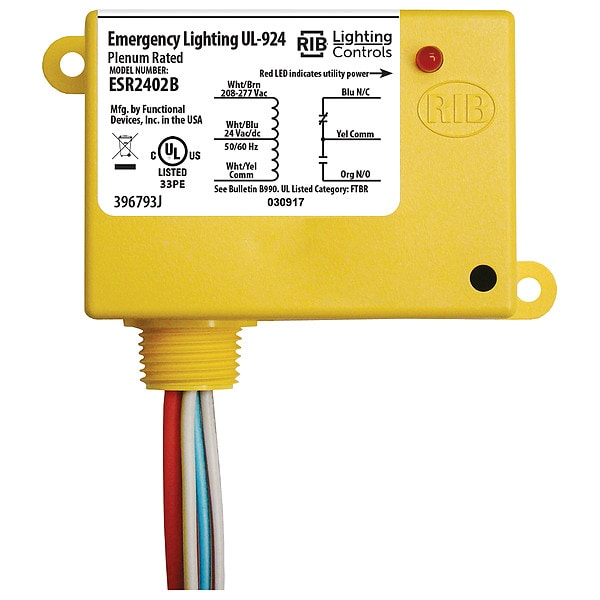

Enclosed Pre-Wired Relay, 20A at 277VAC, SPDT

  • Mfr # ESR2402B

  • Zoro # G5168231

product price:
$
117.99
/ea
Free Shipping & Returns

Key Features

Item - Relay
Prewired Relay
Application - Prewired Relay
Emergency Bypass or Shunt
AC Contact Rating - Relay
20A @ 277V
Contact Form - Relay
SPDT
Mounting - Relay
1/2 in Nipple, Surface
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ESR2402B
Zoro #
G5168231
UPC #
-
Country of Origin
United States

Dimensions

Dimensions
2.3"H x 3.2"W x 1.8"D
Overall Height - Relay
2.3 in
Nipple Size
0.50 in NPT
Body Depth - Relay
1.8 in
Body Width - Relay
3.2 in
Lead Length
16 in
Body Height - Relay
2.3 in
Overall Depth
1.8 in
Body Height
3.2 in
Body Width
2.3 in
Body Depth
1.8 in

Details

Item - Relay
Prewired Relay
Application - Prewired Relay
Emergency Bypass or Shunt
Coil Volts
208 to 277V AC, 24V AC/DC
AC Contact Rating - Relay
20A @ 277V
Contact Form - Relay
SPDT
Mounting - Relay
1/2 in Nipple, Surface
Power Consumption - Relay
0.84W, 14.4 to 19.1VA
Contact Amp Rating (Resistive)
20A @ 277VAC
Indicator Type
LED
Item
Enclosed Pre-Wired Relay
Hz
50/60
HP @ 120V
1 hp
Hz - Electrical
50 Hz, 60 Hz
Features
Enclosed Coil, Screw Terminals and Silver Alloy Contacts
HP @ 240V
2 hp
Contact Material
Silver Alloy
NEMA Enclosure Type
1
Response Time
18 msec
Application
Emergency Bypass/Shunt
Standards
CE Certified, RoHS Compliant, UL 924, UL Listed
Contact Form
SPDT
Coil Voltage
24V AC/DC/208-277V AC
Operating Current
20 A at 208 to 277V AC, 20 A at 24V AC/DC
Input Voltage
208 to 277V AC/DC, 24V AC
NEMA Enclosure Rating
1
Mechanical Operating Durability
10,000,000
Horsepower @ 120V AC
1 hp
Maximum Operating Temperature
140 Degrees F
Frequency
50/60 Hz
Status Indicator
LED Indicator
For Use With
Exhaust Fans, Motors, Vacuums
Sealing
Enclosed
Mounting Style
Surface
Current Rating
20 A
Minimum Operating Temperature
-30 Degrees F
Contact Rating (AC)
10 A @ 120/277V, 20 A @ 277V
Gold Flash
No
Approvals
UL Listed, UL924, C-UL, CE
Coil Current
50 mA @ 18 Vac 83 mA @ 24 Vac 69 mA @ 208-277 Vac 33 mA @ 22 Vdc 35 mA @ 24 Vdc 47 mA @ 30 Vdc
Expected Relay Life
10 million cycles minimum mechanical
Wires
16", 600V Rated
Housing Rating
UL Accepted for Use in Plenum, NEMA 1
No. of Relays & Contact Type
One (1) SPDT Continuous Duty Coil
Relay Status
LED On - Normal power present
Operating Temperature
-30 to 140° F
Coil Voltage Input
24 Vac/dc ; 208-277 Vac ; 50-60 Hz Drop Out - 2.1 Vac / 3.8 Vdc Pull In - 18 Vac / 22 Vdc
Operate Time
18ms
Contact Ratings
20 Amp Resistive @ 277 Vac 20 Amp Ballast @ 277 Vac 16 Amp Electronic Ballast @ 277 Vac (N/O) 10 Amp Tungsten @ 120 Vac (N/O) 770 VA Pilot Duty @ 120 Vac 1,110 VA Pilot Duty @ 277 Vac 2 HP @ 277 Vac 1 HP @ 120 Vac
Override (Test Switch)
No

Description

Enclosed Pre-Wired Relay, Coil Voltage 24V AC/DC/208-277V AC, Contact Form SPDT, Current Rating 20 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 10 A @ 120/277V, 20 A @ 277V, Input Voltage 208 to 277V AC/DC, 24V AC, NEMA Enclosure Rating 1, Body Depth 1.8 in, Body Height 3.2 in, Body Width 2.3 in, Contact Material Silver Alloy, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1 hp, Lead Length 16 in
