  13. Time Delay Relay, Square, Interval, 1 Functions 240V AC, DPDT

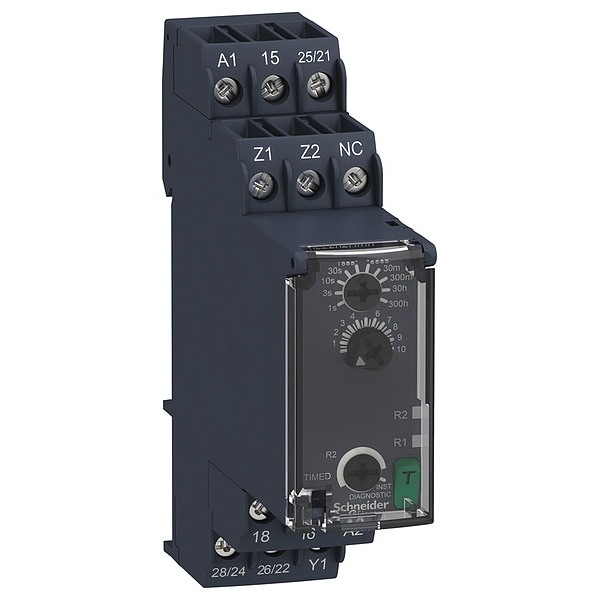

Schneider Electric Time Delay Relay, Square, Interval, 1 Functions 240V AC, DPDT RE22R2HMR - main

Time Delay Relay, Square, Interval, 1 Functions 240V AC, DPDT

  • Mfr # RE22R2HMR

  • Zoro # G3460923

product price: $95.65
/ea
Free Shipping & Returns

Key Features

Delay Function
Interval
Number of Delay Functions
1
Minimum Time Setting
0.05 sec
Maximum Time Setting
300 hr
Base Shape
Square
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RE22R2HMR
Zoro #
G3460923
UPC #
785901502647
Country of Origin
Indonesia

Dimensions

Overall Height - Relay
3.54 in
Overall Depth
3.54 in
Body Depth
2.87 in
Body Height
3.54 in
Body Width
0.89 in

Details

Item
Time Delay Relay
Delay Function
Interval
Number of Delay Functions
1
Minimum Time Setting
0.05 sec
Maximum Time Setting
300 hr
Base Shape
Square
Number of Pins
6
Coil Voltage
240V AC
Current Rating
8 A
Contact Form
DPDT
Contact Rating (AC)
8 A @ 250V
Contact Rating (DC)
8 A @ 24V
Type of Output
relay
Adjustment Method
Diagnostic Button, Rotary Dip Switch
Contact Material
Cadmium Free
Input or Control Voltage Range
0.85...1.1 Us
Standards
IEC 61812-1, UL 508
Input Voltage
24 to 240V AC/DC
Electrical Connection
Screw Terminal
Status Indicator
LED
Min. On/Off Pulse
100 ms with load in parallel || 30 ms
Minimum Operating Temperature
-4 Degrees F
Power Consumption
3 VA
Maximum Operating Temperature
140 Degrees F
Operating Time Accuracy
+/-0.5%
Sealing
Sealed
Frequency
50/60 Hz
IP Rating
IP20; IP40; IP50
Weight
3.68 oz
Maximum Switching Voltage
250V AC
Mechanical Operating Durability
10,000,000
Mounting Style
DIN Rail
Electrical Operating Durability
100,000

Description

Time Delay Relay, Adjustment Method Diagnostic Button, Rotary Dip Switch, Base Shape Square, Coil Voltage 240V AC, Contact Form DPDT, Contact Rating (AC) 8 A @ 250V, Contact Rating (DC) 8 A @ 24V, Current Rating 8 A, Number of Delay Functions 1, Delay Function Interval, Electrical Connection Screw Terminal, IP Rating IP20; IP40; IP50, Input Voltage 24 to 240V AC/DC, Minimum Time Setting 0.05 sec, Maximum Time Setting 300 hr, Number of Pins 6, Sealing Sealed, Mounting Style DIN Rail
