- Item

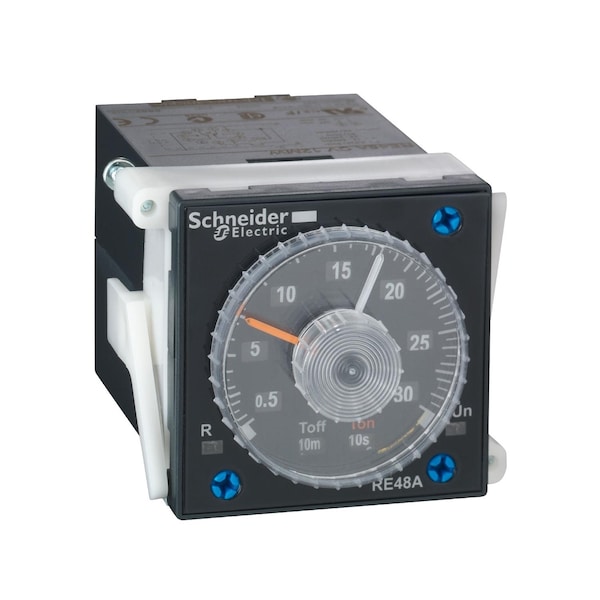

- Time Delay Relay
- Delay Function
- Multi Function
- Number of Delay Functions
- 4
- Minimum Time Setting
- 0.02 sec
- Maximum Time Setting
- 300 hr
- Number of Pins
- 8
- Current Rating
- 5A
- Contact Rating (DC)
- 2 A @ 24V DC-1
- Type of Output
- relay
- Min. On/Off Pulse
- 20 ms
- Electrical Connection
- plug-in sub-base 8
- Input Voltage
- 250 V AC/DC
- Adjustment Method - Timer
- selector switch front panel
- Power Consumption - Relay
- 1.1 VA 24 V || 4.8 VA 240 V; 0.5 W 24 V || 1.7 W 240 V
- Input or Control Voltage Range
- 0.85...1.1 Us AC || 0.9...1.1 Us DC
- Standards
- UL Listed || CSA|| CE
- Number of Functions
- 4
- Hz
- 50/60Hz
- Range of Product
- Harmony Timer Relays
- Power Consumption In W
- 0.5 W 24 V, 1.7 W 240 V
- [Us] Rated Supply Voltage
- 24...240 V AC/DC 50/60 Hz
- Maximum Switching Current
- 5A
- Local Signalling
- for output relay state 1 LED (yellow), for flashing: relay energised timing in progress LED indicator (green), for on steady: relay energised, no timing in progress LED indicator (green)
- Immunity To Radioelectric Fields
- 10 V 0.15...80 MHz)IEC 61000-4-6 level 3
- Protection Against Electric Shocks
- 4 kV class III IEC 60664-1, 4 kV class III IEC 61812-1
- Immunity To Voltage Dips
- 30 % / 10 ms IEC 61000-4-11, 60 % / 100 ms IEC 61000-4-11, 95 % / 5 s IEC 61000-4-11
- Resistance To Electrostatic Discharge
- 6 kV in contact IEC 61000-4-2 level 3, 8 kV in air IEC 61000-4-2 level 3
- Surge Withstand
- 1 kV differential mode IEC 61000-4-5 level 3, 2 kV common mode IEC 61000-4-5 level 3
- Immunity To Microbreaks
- 10 ms
- Ambient Air Temperature For Storage
- -40-70°C
- Ambient Air Temperature For Operation
- -20-50°C
- Temperature Drift
- +/- 0.02 %/°C of the maximum setting value IEC 61812-1
- Ip Degree of Protection
- IP40 IEC 60529 housing), IP50 IEC 60529 front face)
- Minimum Switching Current
- 100 mA
- Dielectric Strength
- 1 kV 1 mA/1 minute IEC 61812-1
- Component Name
- RE48
- Output Voltage
- 240 V 5 A AC-12, 30 V 2 A DC-13, 240 V 1.5 A AC-15
- Housing Material
- self-extinguishing
- Pick Up Duration
- 55 ms
- Mounting Support
- base mounted: socket, panel mounted: system supplied with the product
- Vibration Resistance
- 0.35 mm 10-55 Hz)IEC 60068-2-6
- On-Load Factor
- 1
- Voltage Drift
- +/- 0.2 %/V of the maximum setting value 48...240 V, +/- 1 %/V of the maximum setting value 24...48 V
- Humidity Drift
- +/- 0.05 %/%RH of the maximum setting value IEC 61812-1
- Relative Humidity
- 93-93 % without condensation IEC 60068-2-3
- Reset Time
- 25 ms on de-energisation
- Line Rated Current
- 5A
- Mechanical Durability
- 30000000 cycles
- Resistance To Electromagnetic Fields
- 10 V/m 26 MHz to 1 GHz IEC 61000-4-3 level 3
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4 level 4 capacitive connecting clip), 4 kV IEC 61000-4-4 level 4 direct)
- Breaking Capacity
- 1250 VA
- Setting Accuracy of Time Delay
- +/- 5 % of full scale 25°C IEC 61812-1
- Marking
- CE
- Electrical Durability
- 100000 cycles
- Disturbance Radiated/Conducted
- class B 0.15...30 MHz EN 55022 (EN 55011 group 1)
- Repeat Accuracy
- +/- 0.2 % of the maximum setting value IEC 61812-1
