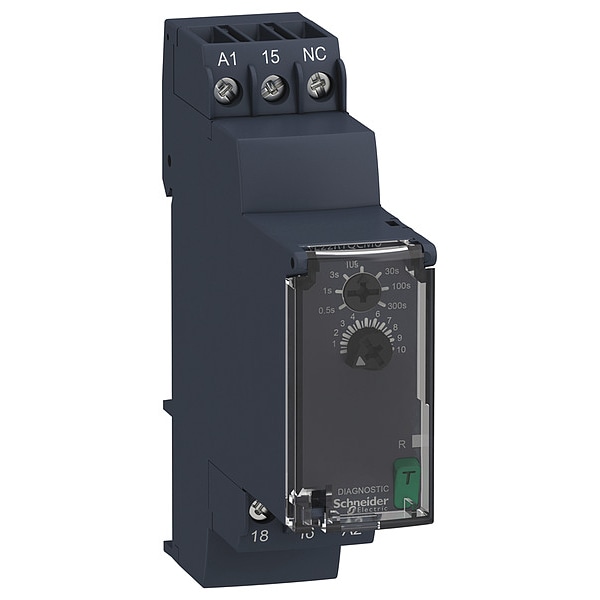

Time Delay Relay, Square, Star-Delta, 2 Functions 240V AC, SPDT

Mfr # RE22R1QCMU
Zoro # G3460914

83.49

Key Features

Delay Function

Star-Delta

Number of Delay Functions

Minimum Time Setting

0.05 sec

Maximum Time Setting

5 min

Base Shape

Square

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: RE22R1QCMU
Zoro #: G3460914
UPC #: 785901478997
Country of Origin: Indonesia

Dimensions

Overall Height - Relay: 3.54 in
Body Height: 3.54 in
Body Width: 0.89 in
Body Depth: 2.87 in
Overall Depth: 3.54 in

Details

Item: Time Delay Relay
Delay Function: Star-Delta
Number of Delay Functions: 2
Minimum Time Setting: 0.05 sec
Maximum Time Setting: 5 min
Base Shape: Square
Number of Pins: 6
Coil Voltage: 240V AC
Current Rating: 8 A
Contact Form: SPDT
Contact Rating (AC): 8 A @ 250V
Contact Rating (DC): 8 A @ 24V
Electrical Connection: Screw Terminal
Type of Output: relay
Contact Material: Cadmium Free
Input or Control Voltage Range: 0.85...1.1 Us
Status Indicator: LED
Standards: IEC 61812-1, UL 508
Input Voltage: 24 to 240V DC, 24V AC
Adjustment Method: Diagnostic Button, Rotary Dip Switch
Power Consumption: 35 VA
Maximum Switching Voltage: 250V AC
IP Rating: IP20; IP40; IP50
Minimum Operating Temperature: -4 Degrees F
Mechanical Operating Durability: 10,000,000
Operating Time Accuracy: +/-0.5%
Maximum Operating Temperature: 140 Degrees F
Electrical Operating Durability: 100,000
Mounting Style: DIN Rail
Sealing: Sealed
Frequency: 50/60 Hz
Weight: 2.88 oz

Description

Time Delay Relay, Adjustment Method Diagnostic Button, Rotary Dip Switch, Base Shape Square, Coil Voltage 240V AC, Contact Form SPDT, Contact Rating (AC) 8 A @ 250V, Contact Rating (DC) 8 A @ 24V, Current Rating 8 A, Number of Delay Functions 2, Delay Function Star-Delta, Electrical Connection Screw Terminal, IP Rating IP20; IP40; IP50, Input Voltage 24 to 240V DC, 24V AC, Minimum Time Setting 0.05 sec, Maximum Time Setting 5 min, Number of Pins 6, Sealing Sealed, Mounting Style DIN Rail
