  11. Touch Panel, 10 in. TFT Color, 24VDC

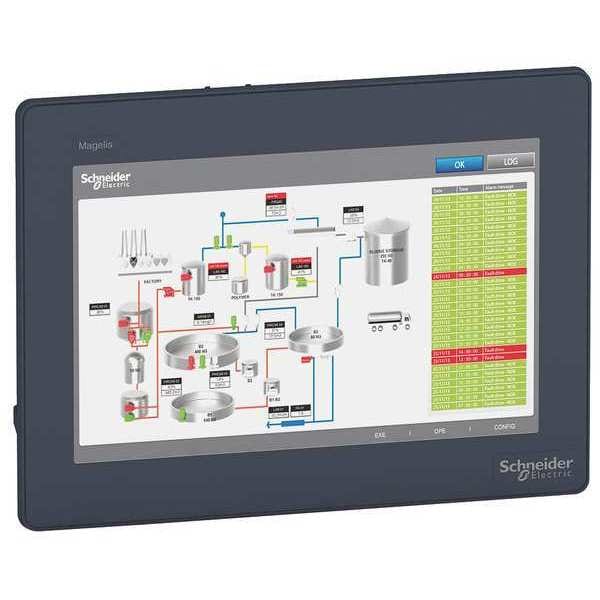

Schneider Electric Touch Panel, 10 in. TFT Color, 24VDC HMIDT551 - main

Touch Panel, 10 in. TFT Color, 24VDC

  • Mfr # HMIDT551

  • Zoro # G1807307

product price: $3,139.99
/ea
Free Shipping & Returns

Key Features

Display Type
TFT Color LCD
Display
1280 x 800 Pixels
Height
7.83 in
Width
8.54 in
Depth
2.64 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HMIDT551
Zoro #
G1807307
UPC #
785901981022
Country of Origin
China

Dimensions

Height
7.83 in
Width
8.54 in
Depth
2.64 in
Cut-Out Dimensions
255 (+ 1/- 0) x 185 (+ 1/- 0) mm
Display Size
10.1 inch
Overall Depth
2.64 in
Overall Width
10.57 in
Display Screen Size
10.1 in
Overall Height
7.82 in

Details

Item
Touch Panel
Display Type
TFT Color LCD
Display
1280 x 800 Pixels
Voltage
24V DC
For Use With
Magelis GTU W-LAN Wireless Display
Product Type
Touch Panel
Power Consumption In W
6.5 W
Touchscreen Resolution
1024 x 1024
Backlight Lifespan
50000 hours
Standards
UL 508 || ANSI/ISA 12-12-01 || class I division 2 CSA C22.2 No 213 || CSA C22.2 No 142 || IEC 61132-2
Supply Voltage Limits
10.8-28.8 V
Type Of Installation
indoor installation
Product Or Component Type
advanced touchscreen panel
Display Colour
262144 colors
Ambient Air Temperature For Operation
0-60°C EN 61131-2
Touch Panel
single touch analogue resistive
Nema Degree Of Protection
NEMA 4X front panel
Display Resolution
1280 x 800 pixels WVGA
Electromagnetic Compatibility
electrostatic discharge immunity testlevel 3 EN/IEC 61000-4-2
Relative Humidity
10-90 % non-condensing
Inrush Current
30 A
[Us] Rated Supply Voltage
12...24 V DC power supply
Shock Resistance
147 m/s²EN/IEC 61131-2
Terminal Type
touchscreen display
Ambient Air Temperature For Storage
-20-60°C
Aspect Ratio
0.16875
Vibration Resistance
3.5 mm constant amplitude 5-9 Hz) EN/IEC 61131-2 || 9.8 m/s² 9-150 Hz) EN/IEC 61131-2
Type Of Cooling
natural convection
Ip Degree Of Protection
front panel IP66 || front panel IP67
Pixel Resolution
1280 x 800 Pixels
Operating Altitude
6561.68 ft (2000 m)
Product Certifications
RCM || cULus || KC || CE || UKCA || UKEX
Touchscreen Technology
Resistive
Compatible with Series
Magelis GTU
Features
Modular Design, Wireless Security Protocols (WEB/WPA/WPA2)
Touchscreen Touch Type
Single Touch
Compatible Product Type
W-LAN Wireless Display

Description

Touch Panel, TFT Color LCD, Voltage 24V DC, Display 1280 x 800 Pixels, Width 8.54 in, Height 7.83 in, Depth 2.64 in, For Use With Magelis GTU W-LAN Wireless Display
