  11. Touch panel screen, Harmony STO & STU, 4.3inch wide, RS 232/485 RJ45

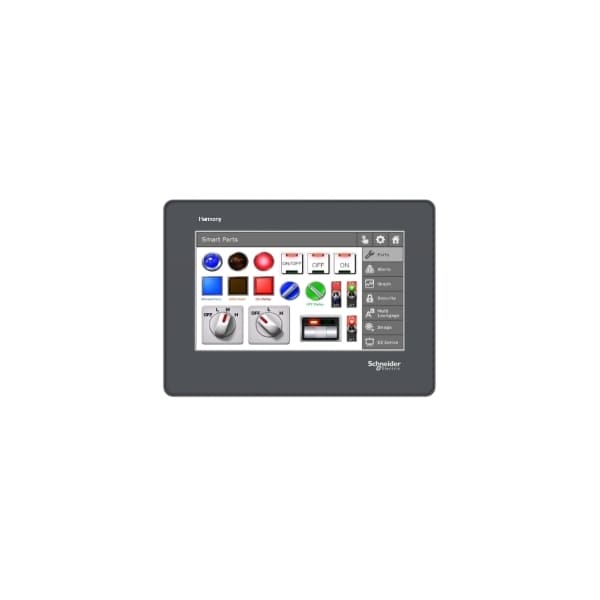

Schneider Electric Touch panel screen, Harmony STO & STU, 4.3inch wide, RS 232/485 RJ45 HMISTO715 - main

Touch panel screen, Harmony STO & STU, 4.3inch wide, RS 232/485 RJ45

  • Mfr # HMISTO715

  • Zoro # G7656259

product price: $585.99
/ea
Free Shipping & Returns

Key Features

Standards
ANSI/ISA 12.12.01 || CSA C22.2 No 142 || UL 61010-2-201 || EN 61000-6-2 || CSA C22.2 No 213 || EN 61000-6-4 || UL 61010-1 || EN 61131-2
Ip Degree Of Protection
IP65f front panel) || IP20 rear panel)
Fixing Mode
by 2 installation fasteners 1.5 to 6 mm thick panel
Vibration Resistance
1 gn 5-150 Hz) IEC 61131-2 || 3.5 mm constant amplitude 5-150 Hz) IEC 61131-2
Display Colour
65536 colours
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HMISTO715
Zoro #
G7656259
UPC #
-
Country of Origin
China

Dimensions

Cut-Out Dimensions
77.5 x 112.5 mm || 66 x 105 mm with mounting adaptor
Display Size
4.3 inch

Details

Item
Color Touch Panel Rs232/485 Rj45 4.3"
Standards
ANSI/ISA 12.12.01 || CSA C22.2 No 142 || UL 61010-2-201 || EN 61000-6-2 || CSA C22.2 No 213 || EN 61000-6-4 || UL 61010-1 || EN 61131-2
Ip Degree Of Protection
IP65f front panel) || IP20 rear panel)
Fixing Mode
by 2 installation fasteners 1.5 to 6 mm thick panel
Vibration Resistance
1 gn 5-150 Hz) IEC 61131-2 || 3.5 mm constant amplitude 5-150 Hz) IEC 61131-2
Display Colour
65536 colours
Touch Panel
analogue
Operating Altitude
6561.68 ft (2000 m)
Shock Resistance
15 gn 11 msIEC 61131-2
Enclosure Material
PPT
Brightness
16 levels via touch panel
Number Of Pages
8999
Integrated Connection Type
1 USB 2.0 type mini B || 1 USB 2.0 type A || 1 serial link - RJ45 - RS232C/RS485 2400...115200 bps)
Display type
colour TFT LCD
Memory Description
back up of data 512 kB || application memory 26 MB
Display Resolution
480 x 272 pixels
Realtime Clock
with RTC-battery set optional
Nema Degree Of Protection
NEMA 4X/13 front panel indoor use)
Front Material
plastic
[Us] Rated Supply Voltage
12...24 V DC - 10...20 %
Downloadable Protocols
third party protocols || Modbus
Operating System
Harmony
Power Consumption In W
7.5 W
Ambient Air Temperature For Operation
0-50°C
Character Font
Chinese (simplified Chinese) || Japanese (ANK, Kanji) || ASCII (European characters) || Taiwanese (traditional Chinese) || Korean || Cyrillic
Ambient Air Temperature For Storage
-20-60°C
Software Designation
EcoStruxure Operator Terminal Expert
Range Compatibility
MitsubishI || Omron || Siemens || Allen-Bradley
Product Or Component Type
touch panel screen
Supply
external source
Backlight Lifespan
50000 hours white
Relative Humidity
10-90 % without condensation
Electromagnetic Compatibility
resistance to radiated electromagnetic fields 10 V/m 80 MHz...2.7 GHz) || resistance to electrostatic discharge 8 kV air discharge)level 3 EN 61000-4-2 || resistance to electrostatic discharge 6 kV direct contact)level 3 EN 61000-4-2
Product Certifications
UL || C-tick || KCC || CE || cUL || ATEX zone 2/22 || UKCA
Range of Product
Harmony STO & STU

Description

Color Touch Panel Rs232/485 Rj45 4.3 In.
