  11. Touch Panel, 10.4 in. TFT Color, 24VDC

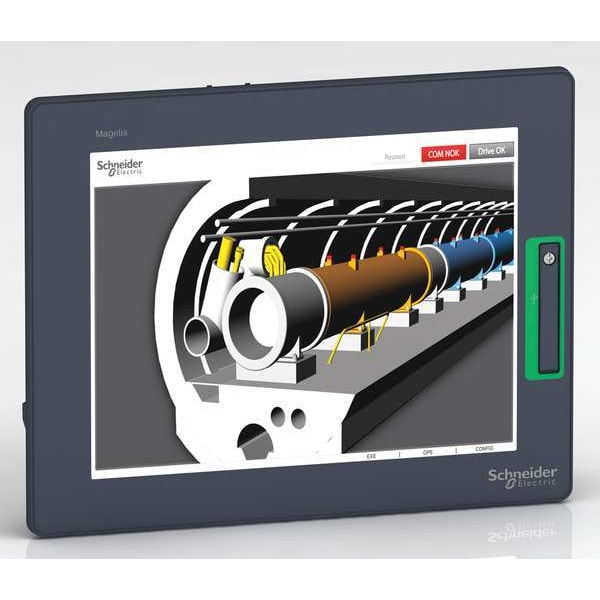

Schneider Electric Touch Panel, 10.4 in. TFT Color, 24VDC HMIDT542 - main

Touch Panel, 10.4 in. TFT Color, 24VDC

  • Mfr # HMIDT542

  • Zoro # G1807316

product price: $3,447.99
/ea
Free Shipping & Returns

Key Features

Display Type
TFT Color LCD
Port Type
USB Type A, USB Type Mini-B
Display
800 x 600 Pixels
Height
8.46 in
Width
8.31 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HMIDT542
Zoro #
G1807316
UPC #
785901980612
Country of Origin
China

Dimensions

Height
8.46 in
Width
8.31 in
Depth
2.64 in
Display Size
10.4 inch
Cut-Out Dimensions
259 (+ 1/- 0) x 201 (+ 1/- 0) mm
Display Screen Size
10.4 in
Overall Depth
2.64 in
Overall Height
8.44 in
Overall Width
10.73 in

Details

Item
Touch Panel
Display Type
TFT Color LCD
Port Type
USB Type A, USB Type Mini-B
Display
800 x 600 Pixels
Voltage
24V DC
For Use With
Magelis GTU W-LAN Wireless Display
Product Type
Touch Panel
Display Resolution
800 x 600 pixels SVGA
[Us] Rated Supply Voltage
12...24 V DC power supply
Product Certifications
cULus || CE || KC || RCM || UKCA || UKEX
Touchscreen Resolution
1024 x 1024
Relative Humidity
10-90 % non-condensing
Display Colour
16 million colours
Power Consumption In W
15 W
Electromagnetic Compatibility
electrostatic discharge immunity testlevel 3 EN/IEC 61000-4-2
Supply Voltage Limits
10.8-28.8 V
Ambient Air Temperature For Operation
0-60°C EN 61131-2
Backlight Lifespan
50000 hours
Nema Degree Of Protection
NEMA 4X front panel
Pixel Resolution
800 x 600 Pixels
Shock Resistance
147 m/s²EN/IEC 61131-2
Ip Degree Of Protection
front panel IP66 || front panel IP67
Terminal Type
touchscreen display
Operating Altitude
6561.68 ft (2000 m)
Aspect Ratio
0.16875
Inrush Current
30 A
Ambient Air Temperature For Storage
-20-60°C
Integrated Connection Type
USB 2.0 type A || USB 2.0 type mini B
Vibration Resistance
3.5 mm constant amplitude 5-9 Hz) EN/IEC 61131-2 || 9.8 m/s² 9-150 Hz) EN/IEC 61131-2
Type Of Installation
indoor installation
Type Of Cooling
natural convection
Function Available
brightness sensor
Touch Panel
multi touch analogue resistive
Standards
UL 508 || ANSI/ISA 12-12-01 || class I division 2 CSA C22.2 No 213 || CSA C22.2 No 142 || IEC 61132-2
Product Or Component Type
flat screen
Rated Supply Voltage
12 to 24 V DC power supply
Compatible with Series
Magelis GTU
Features
Modular Design, Wireless Security Protocols (WEB/WPA/WPA2)
Touchscreen Technology
Resistive
Touchscreen Touch Type
Multi-Touch
Compatible Product Type
W-LAN Wireless Display

Description

Touch Panel, TFT Color LCD, Voltage 24V DC, Display 800 x 600 Pixels, Port Type USB Type A, USB Type Mini-B, Width 8.31 in, Height 8.46 in, Depth 2.64 in, For Use With Magelis GTU W-LAN Wireless Display
