  11. Touch Panel, 10.4in TFT Color, 96 MB Flash

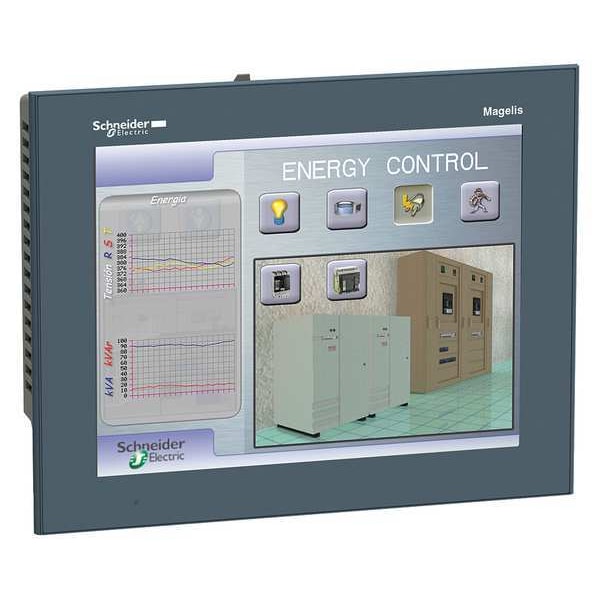

Schneider Electric Touch Panel, 10.4in TFT Color, 96 MB Flash HMIGTO5310 - main

Touch Panel, 10.4in TFT Color, 96 MB Flash

  • Mfr # HMIGTO5310

  • Zoro # G7137873

product price: $4,646.99
/ea
Free Shipping & Returns

Key Features

Display Type
TFT Color LCD
Port Type
USB 2.0, USB-Mini B
Memory
96Mb Flash
Display
640 x 480 Pixels
Height
5.6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HMIGTO5310
Zoro #
G7137873
UPC #
785901395164
Country of Origin
China

Dimensions

Height
5.6 in
Width
10.4 in
Depth
11.8 in
Display Size
10.4 inch
Overall Depth
2.24 in
Overall Width
10.73 in
Display Screen Size
10.4 in
Overall Height
8.44 in

Details

Item
Touch Panel
Display Type
TFT Color LCD
Port Type
USB 2.0, USB-Mini B
Memory
96Mb Flash
Display
640 x 480 Pixels
Special Features
Display of Text Messages, Graphic Objects and Synoptic Views, Control and Con¿guration of Data
For Use With
Allen-Bradley, Omron and Other Automation, PLC and Drives, Schneider Electric Modicon, Siemens
Voltage
24V DC
Product Type
Touch Panel
Product Mounting
flush mounting
Supply
external source
Touch Sensitive Zone
1024 x 1024
[Us] Rated Supply Voltage
24 V DC
Ambient Air Temperature For Operation
0-55°C
Resistance To Electrostatic Discharge
6 kV contact discharge IEC 61000-4-2 level 3
Data Backed Up
512 kB internal RAM SRAM)
Brightness
16 levels by touch panel || 16 levels by software
Nema Degree Of Protection
NEMA 4X front panel (indoor use)
Display Resolution
640 x 480 pixels VGA
Shock Resistance
147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2
Inrush Current
30 A
Terminal Type
touchscreen display
Relative Humidity
10-90 % without condensation
Operating System
Harmony
Product Or Component Type
advanced touchscreen panel
Product Certifications
cULus || CE || C-tick || KCC || UKCA || UKEX
Local Signalling
status LED green, steady offline || status LED green, steady operating || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED clear, faded power supply (OFF) || COM2 LED yellow, steady data is being transmitted || COM2 LED yellow, faded no data transmission || SD card LED green, steady card is inserted || SD card LED green, faded card is not inserted or is not being accessed
Memory Description
flash EPROM, 96 MB
Data Storage Equipment
SD card, <= 32 GB || SDHC card, <= 32 GB
Supply Voltage Limits
19.2-28.8 V
Integrated Connection Type
COM1 serial link SUB-D 9 RS232C 2400...115200 bps || COM2 serial link RJ45 RS485 2400...115200 bps || COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI || Ethernet RJ45 10BASE-T/100BASE-TX || Ethernet RJ45 IEEE 802.3 || USB 2.0 type A || USB 2.0 type mini B
Ambient Air Temperature For Storage
-20-60°C
Software Designation
Vijeo Designer configuration software >= V6.1
Fixing Mode
by 4 screw clamps
Enclosure Material
PPT
Operating Altitude
< 6561.68 ft (2000 m)
Maximum Power Consumption In W
12 W when power is not supplied to external devices || 7 W when backlight is OFF || 8 W when backlight is dimmed || 17 W
Downloadable Protocols
Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automation Allen-Bradley third party protocols || Siemens Simatic third party protocols || Schneider Electric Modicon Modbus TCP
Front Material
PPT
Character Font
Chinese (simplified Chinese) || Japanese (ANK, Kanji) || Korean || ASCII || Taiwanese (traditional Chinese)
Display Colour
65536 colours
Battery Type
lithium internal RAM 100 days 5 day(s) 10 year(s)
Touch Panel
resistive film, 1000000 cycles
Vibration Resistance
3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 || 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2
Type Of Cooling
natural convection
Ip Degree Of Protection
IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
Standards
UL 508 || EN 61131-2 || IEC 61000-6-2
Backlight Lifespan
50000 hours white 25°C
Features
Multicolor Status LED
Communication Protocol
Modbus TCP
Compatible Product Type
Programable Logic Computer Drives, Programable Logic Computers
Compatible with Brand
Allen-Bradley, Mitsubishi, Omron, Rockwell Automation, Schneider, Siemens
Pixel Resolution
640 x 480 Pixels
Compatible with Series
Magelis GTO
Memory Type
96 Mb Flash
Touchscreen Technology
Resistive

Description

Touch Panel, TFT Color LCD, Voltage 24V DC, Display 640 x 480 Pixels, 96Mb Flash Memory, Port Type USB 2.0, USB-Mini B, Width 10.4 in, Height 5.6 in, Depth 11.8 in, For Use With Allen-Bradley, Omron and Other Automation, PLC and Drives, Schneider Electric Modicon, Siemens, Display of Text Messages, Graphic Objects and Synoptic Views, Control and Con�guration of Data
