Display of Text Messages, Graphic Objects and Synoptic Views, Control and Con¿guration of Data
For Use With
Allen-Bradley, Omron and Other Automation, PLC and Drives, Schneider Electric Modicon, Siemens
Voltage
24V DC
Product Type
Touch Panel
Display Colour
65536 colours
Product Mounting
flush mounting
Character Font
Taiwanese (traditional Chinese) || ASCII (European characters) || Chinese (simplified Chinese) || Japanese (ANK, Kanji) || Korean
Standards
UL 508 || EN 61131-2 || IEC 61000-6-2
Downloadable Protocols
Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automation Allen-Bradley third party protocols || Siemens Simatic third party protocols || Schneider Electric Modicon Modbus TCP
Shock Resistance
147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2
Software Designation
Vijeo Designer configuration software >= V6.1
Enclosure Material
PPT
Data Backed Up
512 kB internal RAM SRAM)
Data Storage Equipment
SD card, <= 32 GB || SDHC card, <= 32 GB
Fixing Mode
by 4 screw clamps
Front Material
PPT
Touch Sensitive Zone
1024 x 1024
Memory Description
flash EPROM, 96 MB
Local Signalling
status LED green, steady offline || status LED green, steady operating || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED clear, faded power supply (OFF) || COM2 LED yellow, steady data is being transmitted || COM2 LED yellow, faded no data transmission || SD card LED green, steady card is inserted || SD card LED green, faded card is not inserted or is not being accessed
Battery Type
lithium internal RAM 100 days 5 day(s) 10 year(s)
Ambient Air Temperature For Operation
0-55°C
Nema Degree Of Protection
NEMA 4X front panel (indoor use)
Operating System
Harmony
Display Resolution
800 x 600 pixels SVGA
Vibration Resistance
3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 || 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2
12 W when power is not supplied to external devices || 7 W when backlight is OFF || 8 W when backlight is dimmed || 17 W
Backlight Lifespan
50000 hours white 25°C
Brightness
16 levels by touch panel || 16 levels by software
Touch Panel
resistive film, 1000000 cycles
Resistance To Electrostatic Discharge
6 kV contact discharge IEC 61000-4-2 level 3
Ambient Air Temperature For Storage
-20-60°C
Integrated Connection Type
COM1 serial link SUB-D 9 RS232C 2400...115200 bps || COM2 serial link RJ45 RS485 2400...115200 bps || COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI || Ethernet RJ45 10BASE-T/100BASE-TX || Ethernet RJ45 IEEE 802.3 || USB 2.0 type A || USB 2.0 type mini B

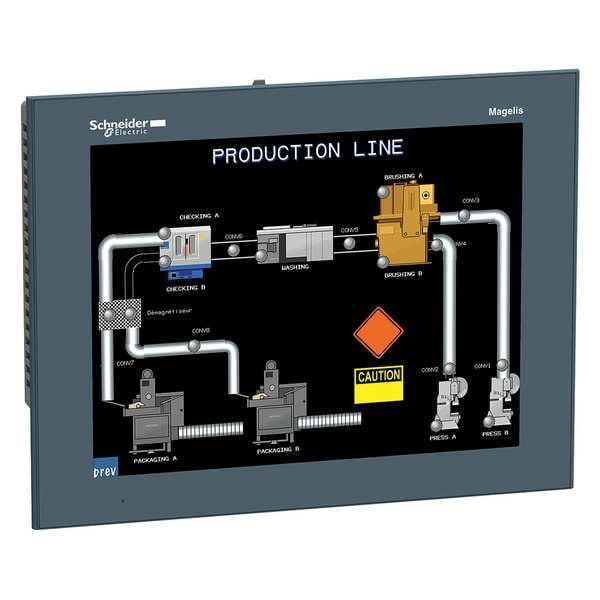

Touch Panel, TFT Color LCD, Voltage 24V DC, Display 800 x 600 Pixels, 96Mb Flash Memory, Port Type USB 2.0, USB-Mini B, Width 14.1 in, Height 7.1 in, Depth 12.1 in, For Use With Allen-Bradley, Omron and Other Automation, PLC and Drives, Schneider Electric Modicon, Siemens, Display of Text Messages, Graphic Objects and Synoptic Views, Control and Con�guration of Data
