Specifications
Product Information
MFR #
HMIGTO2310
Zoro #
G6682067
UPC #
785901415435
Country of Origin
China
Dimensions
Height
5.9 in
Width
10.2 in
Depth
12.1 in
Display Size
5.7 inch
Overall Width
6.67 in
Overall Depth
2.34 in
Display Screen Size
5.7 in
Overall Height
5.39 in
Details
Item

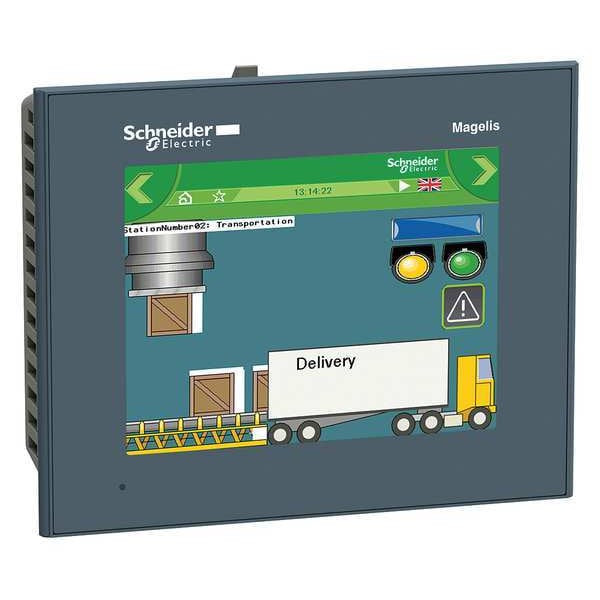

Touch Panel
Display Type
TFT Color LCD
Port Type
USB 2.0, USB-Mini B
Memory
96Mb Flash
Display
320 x 240 Pixels
Special Features
Display of Text Messages, Graphic Objects and Synoptic Views, Control and Con¿guration of Data
For Use With
Allen-Bradley, Omron and Other Automation, PLC and Drives, Schneider Electric Modicon, Siemens
Voltage
24V DC
Product Type
Touch Panel
Shock Resistance
147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2
Downloadable Protocols
Schneider Electric Modicon Modbus,,Schneider Electric Modicon Uni-TE,,Schneider Electric Modicon Modbus Plus,,Schneider Electric Modicon FIPWAY,,Mitsubishi Melsec third party protocols,,Omron Sysmac third party protocols,,Rockwell Automation Allen-Bradley third party protocols,,Siemens Simatic third party protocols,,Schneider Electric Modicon Modbus TCP
Nema Degree Of Protection
NEMA 4X front panel (indoor use)
Local Signalling
status LED green, steady offline || status LED green, steady operating || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED clear, faded power supply (OFF) || COM2 LED yellow, steady data is being transmitted || COM2 LED yellow, faded no data transmission || SD card LED green, steady card is inserted || SD card LED green, faded card is not inserted or is not being accessed
Product Mounting
flush mounting
Ambient Air Temperature For Operation
0-55°C
Product Or Component Type
advanced touchscreen panel
Front Material
PPT
Battery Type
lithium internal RAM 100 days 5 day(s) 10 year(s)
Fixing Mode
by 4 screw clamps
Data Backed Up
512 kB internal RAM SRAM)
Enclosure Material
PPT
Terminal Type
touchscreen display
Maximum Power Consumption In W
6.5 W when power is not supplied to external devices || 4.5 W when backlight is OFF || 5 W when backlight is dimmed || 10.5 W
Display Resolution
320 x 240 pixels QVGA
Supply Voltage Limits
19.2-28.8 V
Backlight Lifespan
50000 hours white 25°C
Display Colour
65536 colours
Character Font
Korean || Taiwanese (traditional Chinese) || ASCII (European characters) || Chinese (simplified Chinese) || Japanese (ANK, Kanji)
Brightness
16 levels by touch panel || 16 levels by software
Operating Altitude
< 6561.68 ft (2000 m)
Memory Description
flash EPROM, 96 MB
Vibration Resistance
3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 || 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2
COM1 serial link SUB-D 9 RS232C 2400...115200 bps || COM2 serial link RJ45 RS485 2400...115200 bps || COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI || Ethernet RJ45 10BASE-T/100BASE-TX || Ethernet RJ45 IEEE 802.3 || USB 2.0 type A || USB 2.0 type mini B
Touch Panel, TFT Color LCD, Voltage 24V DC, Display 320 x 240 Pixels, 96Mb Flash Memory, Port Type USB 2.0, USB-Mini B, Width 10.2 in, Height 5.9 in, Depth 12.1 in, For Use With Allen-Bradley, Omron and Other Automation, PLC and Drives, Schneider Electric Modicon, Siemens, Display of Text Messages, Graphic Objects and Synoptic Views, Control and Con¿guration of Data
