This item is Discontinued.

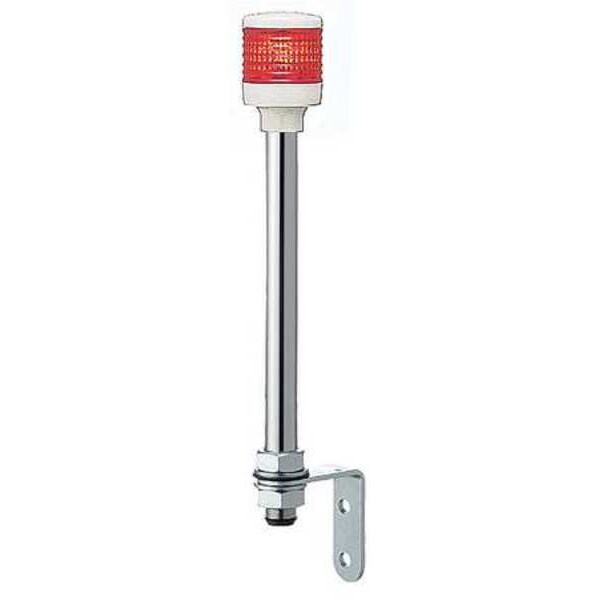

Schneider Electric Tower Light, 60mm, Red, Support Tube Mount XVC6M1

Tower Light, 60mm, Red, Support Tube Mount (Discontinued)

  • Mfr # XVC6M1
  • Zoro # G4523461
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
XVC6M1
Zoro #
G4523461
UPC #
785901119920
Country of Origin
Indonesia

Dimensions

Diameter
60 mm
Height
16-7/8"
Overall Height
599 13/16 mm
Cord Length
17 3/4 in
Lead Length
450 mm
Overall Diameter
60 mm

Details

Item
Tower Light Assembly
Standards
RoHS, UL Listed
Voltage
100 to 240V AC
Housing Material
ABS, PBT
Lighting Technology
LED
Current Drawn
35mA
Includes
L-Shaped Bracket, Steel Pole
Color
Red
Lens Material
Polycarbonate
Mode
Steady
Rating
IP54
Number of Lights
1
Operating Temp.
-10 Degrees to +50 Degrees C
Light Modes
Steady
Mounting
Support Tube
Sound Level
70 to 85dB
NEMA Rating
NEMA 3R
Tower Light Color
Red
Tower Light Mounting Style
Support Tube
Sounder Included
No
Lens Design
Cylinder
Lamp Life
100,000 hr
Operating Temperature - Minimum
-10 Degrees C
Includes Mounting Hardware
Mounting Hardware Included
Sound Volume - Minimum
70 dB
Lifespan
100,000 hr
Control Protocol
Direct Wire
Operating Temperature - Maximum
50 Degrees C
IP Rating
IP23
Mounting Mechanism
Bracket
Number of Light Tiers
1
Operating Current
0.035 A
Includes Sounder Tier
No Sounder Tier
Connection Type
Wire Leads
Light Operating Mode
Steady
Sound Volume - Maximum
85 dB
Light Source
LED
Light Tier Color
Red
Lens Shape
Cylinder

Description

Tower Light Mounting Style Support Tube, Number of Lights 1, Tower Light Color Red, Light Modes Steady, Lighting Technology LED, Sounder Included No, Diameter 60 mm, Overall Height 599 13/16 mm, Voltage 100 to 240V AC, NEMA Rating NEMA 3R, Lamp Life 100,000 hr, Housing Material ABS, PBT, Lens Design Cylinder, Lens Material Polycarbonate, Sound Level 70 to 85dB, Cord Length 17 3/4 in, Operating Temp. -10 Degrees to +50 Degrees C, Standards RoHS, UL Listed, Current Drawn 35mA
