TRANSMITTER TEMP -25 TO

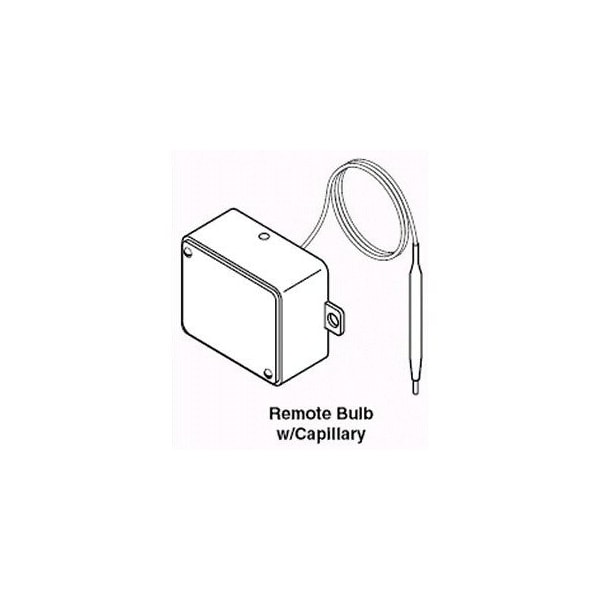

Pneunatic Temperature Transmitters - Duct/Outdoor Air, Range: -25 to 125 F, Remote Bulb, 1/4 x 10-1/2 in. long (6 x 267 mm) with 9 ft. (2.7 m) capillary * Action: Direct, proportional.* Adjustments: None required, factory calibrated. (Field accessible zero adjustment.)* Supply air pressure: 20 psig +/-0.5 psi (138 kPa +/-3.4 kPa), clean, dry air, supplied through 1.0 scfh (0.0063" dia.) restrictor or restrictor-tee.* Maximum air pressure: 30 psig (207 kPa).* Output pressure: 3 to 15 psig (21 to 103 kPa).* Air connection: 1/8 in. FNPT.* Maximum case ambient temperature: 140DegF (60DegC).* Minimum case operating ambient temperature: 40 DegF (4.4 DegC).* Construction: Liquid-Filled copper sensing element, cast aluminum base, beryllium copper feedback bellows, zinc-plated steel cover.
