  13. Timer, 24-240VAC/VDC, In 8A, Dpdt Out Mu

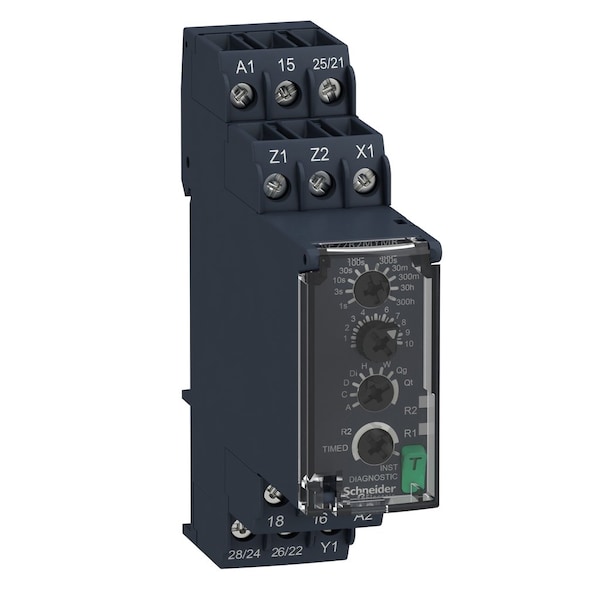

Schneider Electric Timer, 24-240VAC/VDC, In 8A, Dpdt Out Mu RE22R2MYMR - main

Timer, 24-240VAC/VDC, In 8A, Dpdt Out Mu

  • Mfr # RE22R2MYMR

  • Zoro # G7123783

product price: $85.45
/ea
Free Shipping & Returns

Key Features

Standards
UL 508 || IEC 61812-1
Width
22.5 mm
Tightening Torque
0.6-1 N.m IEC 60947-1
Minimum Pulse Duration
100 ms with load in parallel || 30 ms
Reset Time
120 ms on de-energisation
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RE22R2MYMR
Zoro #
G7123783
UPC #
-
Country of Origin
Indonesia

Dimensions

Width
22.5 mm

Details

Item
Timer,24-240VAC/VDC,In 8A,Dpdt Out Mu
Standards
UL 508 || IEC 61812-1
Tightening Torque
0.6-1 N.m IEC 60947-1
Minimum Pulse Duration
100 ms with load in parallel || 30 ms
Reset Time
120 ms on de-energisation
Discrete Output Type
relay
Relative Humidity
95-95 % 25-55°C
Ip Degree Of Protection
housing IP40 IEC 60529 || terminals IP20 IEC 60529 || front panel IP50 IEC 60529
Function Available
A- Power on-delay relay-2 C/O || At- Power on-delay relay w/ pause/summation (X1)-2 C/O || Aw- Power on-delay relay w/ retrigger/restart-2 C/O || C- Off-delay relay w/ control signal-2 C/O || Ct- Off-delay relay w/ control signal and pause/summation-2 C/O || D- Symmetrical flashing relay (starting pulse-off)-2 C/O || Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (X1)-2 C/O || Dw- Symmetrical flashing relay (starting pulse-off) w/ retrigger/restart-2 C/O || Di- Symmetrical flashing relay (starting pulse-on)-2 C/O || Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (X1)-2 C/O || Diw- Symmetrical flashing relay (starting pulse-on) w/ retrigger/restart-2 C/O || H- Interval relay-2 C/O || Ht- Interval relay w/ pause/summation (X1)-2 C/O || Hw- Interval relay w/ retrigger/restart-2 C/O || Qg- Star-delta relay (2 CO outputs w/ same common)-2 C/O || Qgt- Star-delta relay (2 CO outputs w/ same common) w/ pause/summation-2 C/O || Qt- Star-delta relay (2 CO outputs w/ split common)-2 C/O || Qtt- Star-delta relay (2 CO outputs w/ split common) w/ pause/summation (X1)-2 C/O || W- Interval relay w/ control signal off-2 C/O || Wt- Interval relay w/ control signal off and pause/summation-2 C/O
Maximum Delay Response
100 ms
Supply Frequency
50...60 Hz +/- 5 %
Setting Accuracy Of Time Delay
+/- 10 % of full scale 25°C IEC 61812-1
Switching Capacity In Va
2000 VA
Time Delay Range
3...30 min || 30...300 min || 0.3...3 s || 3...30 h || 10...100 s || 1...10 s || 0.05...1 s || 30...300 s || 30...300 h || 3...30 s
Time Delay Type
power on-delay || off-delay || symmetrical flashing || interval || star-delta
Product Certifications
RCM || CE || EAC || CSA || CCC || UL || GL
Housing Material
self-extinguishing
Shock Resistance
15 gn not operating 11 ms IEC 60068-2-27 || 5 gn in operation 11 ms IEC 60068-2-27
Pollution Degree
3 IEC 60664-1
Maximum Switching Voltage
250 V AC
Repeat Accuracy
+/- 0.5 % IEC 61812-1
Insulation Resistance
100 MOhm 500 V DC IEC 60664-1
Maximum Switching Current
8A
[Uimp] Rated Impulse Withstand Voltage
5 kV 1.2-50µs IEC 60664-1
[Us] Rated Supply Voltage
24...240 V AC/DC 50/60 Hz
Control Type
rotary knob || diagnostic button || potentiometer external
Temperature Drift
+/- 0.05 %/°C
Voltage Range
0.85...1.1 Us
Nominal Output Current
8A
Electrical Durability
100000 cycles, 8 A at 250 V, AC-1 || 100000 cycles, 2 A at 24 V, DC-1
Product Or Component Type
multifunction relay
Ambient Air Temperature For Storage
-40-70°C
Power Consumption In W
1.5 W 240 V DC
Vibration Resistance
20 m/s² 10-150 Hz)IEC 60068-2-6
Ambient Air Temperature For Operation
-20-60°C
Dielectric Strength
2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
Overvoltage Category
III IEC 60664-1
Minimum Switching Current
10 mA 5 V DC
Input Voltage
<= 2.4 V
Status Led
Green LED backlight steady)dial pointer indication || Yellow LED steady)output relay energised || Yellow LED fast flashing)timing in progress and output relay de-energised || Yellow LED slow flashing)timing in progress and output relay energised
Connections - Terminals
screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Immunity To Microbreaks
10 ms
Electromagnetic Compatibility
fast transients immunity test 1 kV capacitive connecting clip)level 3 IEC 61000-4-4 || surge immunity test 1 kV differential mode)level 3 IEC 61000-4-5 || surge immunity test 2 kV common mode)level 3 IEC 61000-4-5 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/m 80 MHz...1 GHz)level 3 IEC 61000-4-3 || conducted RF disturbances 10 V 0.15...80 MHz)level 3 IEC 61000-4-6 || fast transient bursts 2 kV direct contact)level 3 IEC 61000-4-4 || immunity to microbreaks and voltage drops 30 % 500 ms) IEC 61000-4-11 || immunity to microbreaks and voltage drops 100 % 20 ms) IEC 61000-4-11
Mounting Support
35 mm DIN rail conforming to EN/IEC 60715
Mounting Position
any position
Mechanical Durability
10000000 cycles
Device Short Name
RE22
Power Consumption In Va
3-3 VA 240 V AC
Voltage Drift
+/- 0.2 %/V
Contacts Type And Composition
1 C/O timed or instantaneous contact, cadmium free || 2 C/O timed contact, cadmium free
Creepage Distance
4 kV/3 IEC 60664-1

Description

Timer,24-240VAC/VDC,In 8A,Dpdt Out Mu
