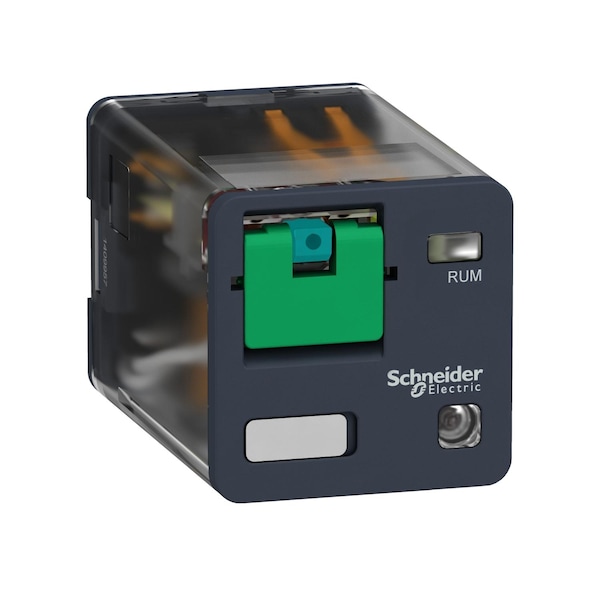

Universal plug-in relay - Zelio RUM - 3, 24V DC Coil Volts, 3 C/O

Mfr # RUMC32BD
Zoro # G900905921

$21.55

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Standards IEC 61810-1, CSA C22.2 No 14, UL 508
Average Coil Consumption 1.4 W
Maximum Switching Capacity 2500 VA/280 W
Pollution Degree 2
Device Short Name RUM

See all product information

Brand Schneider Electric
MFR # RUMC32BD
Zoro # G900905921
Country of Origin China
Category Plug-In Relays

Details

Item	Universal plug-in relay - Zelio RUM - 3
Standards	IEC 61810-1, CSA C22.2 No 14, UL 508
Average Coil Consumption	1.4 W
Maximum Switching Capacity	2500 VA/280 W
Pollution Degree	2
Device Short Name	RUM
Test Levels	level A group mounting
Minimum Switching Capacity	170 mW 10 mA, 17 V
Ip Degree of Protection	IP40
Product or Component Type	plug-in relay
Contacts Type And Composition	3 C/O
Control Type	lockable test button
[Uimp] Rated Impulse Withstand Voltage	4 kV 1.2/50µs)
[Ithe] Conventional Enclosed Thermal Current	10 A -40-55°C
Maximum Switching Voltage	250 V IEC
[Uc] Control Circuit Voltage	24 V DC
Protection Category	RT I
Ambient Air Temperature For Operation	-40-55°C
Range of Product	Harmony Electromechanical Relays
Shape of Pin	cylindrical
Contacts Material	AgNi
Electrical Durability	100000 cycles resistive
Operating Rate	<= 18000 cycles/hour no-load, <= 1200 cycles/hour under load
Reset Time	20 ms at nominal voltage
Status Led	with
Operating Position	any position
Dielectric Strength	1500 V AC between contacts with micro disconnection, 2500 V AC between coil and contact with reinforced, 2000 V AC between poles with basic
Device Presentation	complete product
Average Resistance	470 Ohm 20°C +/- 15 %
Operating Time	20 ms at nominal voltage
[Ui] Rated Insulation Voltage	250 V IEC, 300 V CSA, 300 V UL
Rated Operational Voltage Limits	19.2...26.4 V DC
Series Name	Universal
Shock Resistance	10 gn 11 ms) in operation IEC 60068-2-27, 10 gn 11 ms) not operating IEC 60068-2-27
Vibration Resistance	3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Load Current	10 A 250 V AC, 10 A 28 V DC
Mechanical Durability	5000000 cycles
Drop-Out Voltage Threshold	>= 0.1 Uc DC
Ambient Air Temperature For Storage	-40-85°C
Utilisation Coefficient	0.2
[Ie] Rated Operational Current	10 A at 277 V AC conforming to UL, 10 A at 30 V DC conforming to UL, 10 A at 277 V AC (same polarity) conforming to CSA, 10 A at 30 V DC conforming to CSA, 5 A at 250 V AC (NC) conforming to IEC, 5 A at 28 V DC (NC) conforming to IEC, 10 A at 250 V AC (NO) conforming to IEC, 10 A at 28 V DC (NO) conforming to IEC

Description

This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 24V DC and has 3 changeover contacts triple pole double throw with a rating of 10A. It provides a complete system solution for the most demanding applications. It also offers one-step lockable test button and Power On LED for readiness. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night.
