Shop HONEYWELL

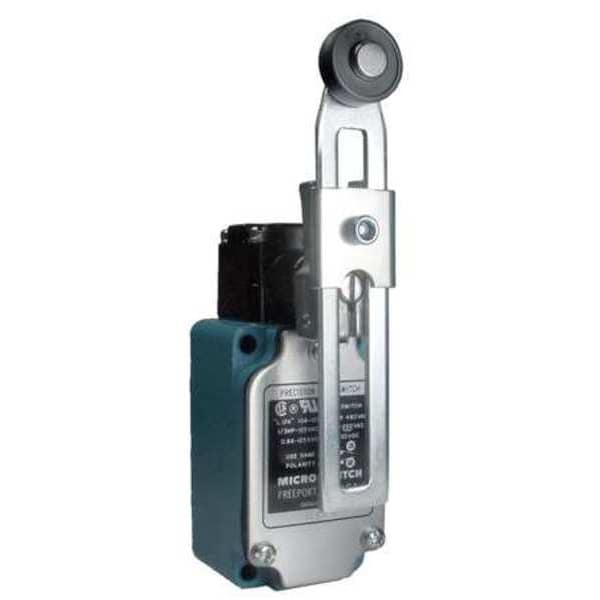

Limit Switch, Roller Lever, Rotary, 1NC/1NO, 10A at 480V AC, Actuator Location: Side

  • Mfr # 1LS3

  • Zoro # G4124696

product price:
$
355.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 480V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1LS3
Zoro #
G4124696
UPC #
-
Country of Origin
United States
Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 480V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Body Material
Metal
Amps
10
NEMA Rating
1, 13, 3, 4, 6
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Contact Form - Limit Switch
1NC/1NO
Arm Material
Steel
DC Contact Rating
0.1 A @ 550 V, 0.4 A @ 230 V, 0.8 A @ 115 V
Actuator Style
Roller Lever Plunger
Actuator Style (Limit Switch)
Rotary, Roller Lever
Wiring Entry
1/2 in NPT
Standards
CE
Basic Actuator Style (Limit Switch)
Rotary
Limit Switch Style
General Purpose Limit Switch
Series
LS
Operating Force
3 lb
Voltage Rating
480VAC
Actuator Location
Side
Body Style (Limit Switch)
Miniature
Mounting Hole Spacing - Limit Switch
2.31 in x 1.19 in
Stem Thread - Limit Switch
No Stem
Electrical Connection
Screw Terminals
Travel
Differential Travel 12 Degrees , Maximum Pretravel 20 Degrees , Minimum Over Travel 30 Degrees
AC Contact Rating
10 A @ 120 V, 10 A @ 240 V, 10 A @ 480 V
Movement
Rotary
Boot Sealed Actuator - Limit Switch
No
Actuator Location (Limit Switch)
Side
Operating Temp. Range
-20 Degrees to 160 Degrees F
Contact Form
1NO/1NC
Number of Poles
1
Boot Sealed Actuator (Limit Switch)
No
Mounting Hole - Limit Switch
(4) 0.19 in dia
IP Rating
IP67
Roller Material
Nylon
Differential Travel
12 Degrees
Mounting Hole Horizontal Center to Center Distance
60 mm
Operating Temperature - Minimum
-20 Degrees F
Number of Mounting Holes
4
Body Configuration
Non Plug-In
NEMA Enclosure Rating
1, 13, 3, 4, 6
Mounting Style
Surface
Mounting Hole Vertical Center to Center Distance
30 mm
Operating Temperature - Maximum
160 Degrees F
Operating Torque - Maximum
4.5 in-lb
Boot Sealed Actuator
No Boot Included
Pretravel
20 Degrees
Overtravel
30 Degrees

Description

Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 480V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.20 in to 3.50 in, Body Height - Limit Switch 2.7 in, Body Width - Limit Switch 1.19 in, Body Depth - Limit Switch 1.13 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 13, 3, 4, 6
