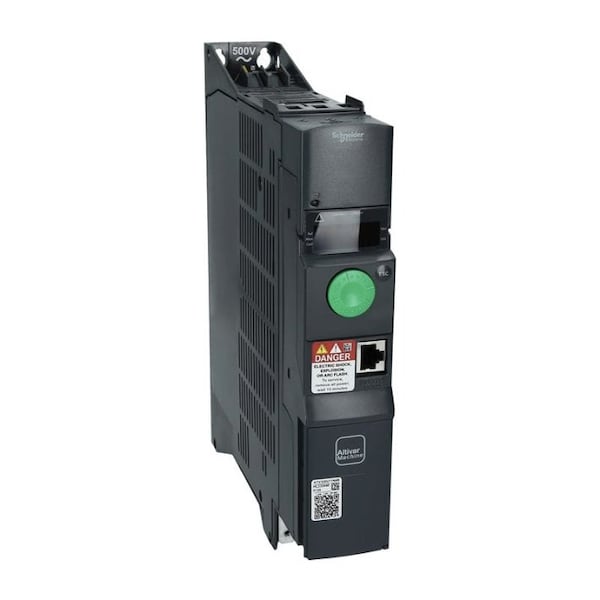

Schneider Electric Variable Frequency Drive, 1-1/2 HP, 3A ATV320U11N4B - main

Variable Frequency Drive, 1-1/2 HP, 3A

  • Mfr # ATV320U11N4B

  • Zoro # G7659211

product price: $614.99
/ea
Free Shipping & Returns

Key Features

Key Pad Lockout
Yes
Protection
Input phase breaks: drive, Overcurrent between output phases and earth: drive, Overheating protection: drive, Short-circuit between motor phases: drive, Thermal protection: drive
Input Frequency
50/60 Hz
Display Type
LED
Width
5.9 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV320U11N4B
Zoro #
G7659211
UPC #
785901773924
Country of Origin
Indonesia

Dimensions

Width
5.9 in
Depth
9.65 in
Height
12.8 in
Overall Depth
9 5/8 in
Overall Width
1 3/4 in
Overall Height
12 3/4 in

Details

Key Pad Lockout
Yes
Protection
Input phase breaks: drive, Overcurrent between output phases and earth: drive, Overheating protection: drive, Short-circuit between motor phases: drive, Thermal protection: drive
Input Frequency
50/60 Hz
Display Type
LED
Digital Readout
Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable
Adjustable Deceleration Time
0 to 6,000 sec
Max. HP
1.5 hp
Control Type
Keypad, Remote, Terminal, Network
Output Phase AC
Three
Control Method
Keypad, Remote, Terminal, Network
Displays
Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable
Torque @ 1 Hz
1.5
Adjustable Acceleration Time
0 to 6,000 sec
Item
Variable Speed Drive
With Line Contactor / No Line Contactor
No Line Contactor
Dynamic Braking
No
Enclosure
Open
Standards
EN/IEC 61800-3, Environment 1 category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 508C, UL 61800-5-1, CSA C22.2 No 274
Max. Output Amps
3 A
With Bypass / No Bypass
No Bypass
Input Phase AC
Three
Input Voltage
500V AC
Starting Torque
1.5
Start/Stop Control
Programmable
Output Frequency Range
0.1 to 599 Hz
For Use With
three-phase Asynchronous, Synchronous Motors
Accepts Input Control Signal
0 to 10V DC, 0 to 20mA Adjustable, Bipolar -10 to 10V DC
Output Voltage
500V AC
Ethernet Port Included
No
Output Type
Analog, Discrete
Brake Chopper Included
Yes
Application
Complex machines
Input Voltage Range
323 to 550V AC
Series
Altivar 320
Color
Black
Enclosure Rating
NEMA 1
Maximum Output Current
3 A
Number of Inputs
(3) Analog; (7) Discrete
Output Voltage Range
380V AC to 500V AC
Style
Book
Number of Outputs
(1) Analog; (3) Discrete
Torque Application
Constant Torque, Variable Torque
Input Type
Analog, Discrete
Maximum Output Power
1 1/2 hp

Description

Variable Speed Drive, Input Voltage 500V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 1 1/2 hp, Maximum Output Current 3 A, Output Voltage 500V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
