Shop CENTURY

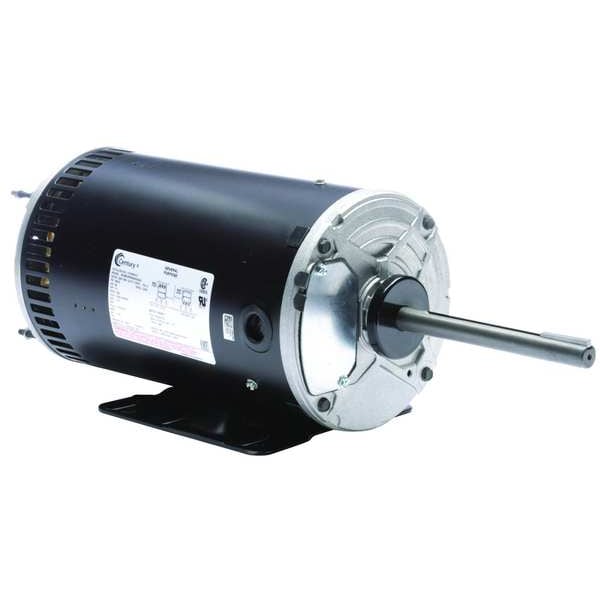

Condenser Fan Motor, 1 1/2 hp

  • Mfr # H1054AV1
  • Zoro # G3701490
product price:
$
528.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1 1/2
RPM Range
0-1,000
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H1054AV1
Zoro #
G3701490
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
6 in
Body Dia.
6 5/8 in
Manufacturers Warranty Length
1 yr
Stud Size
#10-32
Lead Length
6 in
Overall Length
18 7/8 in
Bolt Circle Dia.
5 15/16 in
Length Less Shaft
12 7/8 in
Mounting Stud Length
1 in
Bolt Circle Diameter
5 15/16 in
Shaft Diameter
5/8 in
Mounting Stud Thread Size
#10-32
Frame Size
56HZ
Body Diameter
6.6 in
Wire Rope Length
18 7/8 in
Length
18 7/8 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1 1/2
RPM Range
0-1,000
No. of Speeds
1
Voltage
208V AC to 230V AC, 460V AC, 190V AC, 380V AC
Motor Shaft Rotation
CW/CCW
Frame
56HZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Rigid Base
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
850
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Standards
CSA Certified, UL Recognized
Motor Service Factor
1
Hz
60 Hz
Nominal Efficiency
74.8 %
Ins. Class
F
Motor Shaft Design
Keyed
Mounting Stud Pattern
4 3/16 in x 4 3/16 in
Application
Condenser Fan
Features
Inverter Duty
Motor Bearings
Ball
Full Load Amps
6.6-6.6/3.3 & 6.0/3.0 A
Duty
Continuous
Capacitor Required
Capacitor Not Required
Stud Quantity
4
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
RPM @ 50Hz
705 RPM
Output Watts
1100 W
Service Factor @ 50Hz
1
Full Load Amps @ 50Hz
5.7-5.9/3.3 A
Voltage @ 50Hz
190/380V AC, 208-230/460V AC
Weight
50 lb
Inverter Rated
Yes
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
HP @ 50Hz
1-1/2
Bearing Type
Ball
Shaft Design
Keyed
Number of Speeds
1
Full Load Current @ 50 Hz
5.7-5.9/3.3 A
Wattage
1100 W
Full Load Current @ 60 Hz
6.6/3.3 A
Mounting Position
Horizontal/Vertical Shaft Up
Nameplate Horsepower @ 50 Hz
1 1/2 hp
Frequency
60 Hz
Frame Material
Steel
Insulation Class
F
Inverter Rating
Inverter Rated
Ambient Temperature - Maximum
70 Degrees C
Product Type
Condenser Fan Motor
Drive Type
Direct Drive
Nameplate Service Factor @ 60 Hz
1
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 50 Hz
1
Sub Application
Condenser Fan
Nameplate RPM @ 50 Hz
705 RPM
Motor Enclosure Type
Open Air Over

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 230/460V AC, 6.6/3.3 A Full Load Amps, 56HZ Frame, Output Watts 1100 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base
