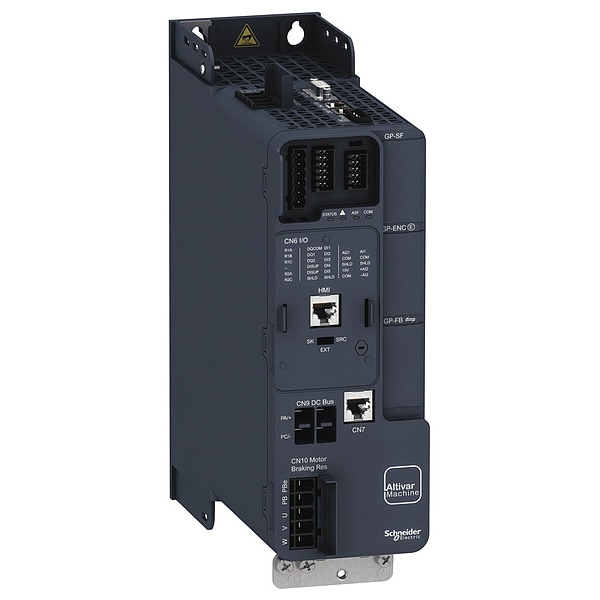

Schneider Electric Variable Frequency Drive, 1 1/2hp, 480V ATV340U07N4 - main

Variable Frequency Drive, 1 1/2hp, 480V

  • Mfr # ATV340U07N4

  • Zoro # G0196770

product price: $808.99
/ea
Free Shipping & Returns

Key Features

Depth
9.15 in
Digital Readout
No
Output Voltage
480V AC
Control Method
Constant Torque Standard, Optimized Torque Mode, Variable Torque Standard
With Line Contactor / No Line Contactor
With Line Contactor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV340U07N4
Zoro #
G0196770
UPC #
785901629351
Country of Origin
Indonesia

Dimensions

Depth
9.15 in
Height
10.63 in
Width
3.35 in
Overall Height
10 5/8 in
Overall Width
3 3/8 in
Overall Depth
9 1/8 in

Details

Digital Readout
No
Output Voltage
480V AC
Control Method
Constant Torque Standard, Optimized Torque Mode, Variable Torque Standard
With Line Contactor / No Line Contactor
With Line Contactor
For Use With
Three-phase supply voltage: 380...480 V 50/60 Hz
Standards
EN/IEC 61800-3, Environment 1 Category C2 EN/IEC 61800-3, Environment 2 Category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 618000-5-1
Item
Variable Speed Drive
Dynamic Braking
No
Display Type
None
Input Voltage
480V AC
Input Frequency
50/60 Hz
Input Phase AC
Three
Max. Output Amps
3.1 A, 3.3 A, 3.8 A, 4 A
Max. HP
1 hp, 1.5 hp
Protection
Break on the control circuit, DC Bus overvoltage, Exceeding limit speed, Input supply loss, Line supply overvoltage, Line supply undervoltage, Motor phase loss, Output overcurrent between motor phase and earth, Output overcurrent between motor phases, Overcurrent, Overheating, Safe torque off, Short-circuit between motor phase and earth, Short-circuit between motor phases, Thermal protection
Number of Inputs
(2) Analog; (1) Discrete; (3) Relay
Torque Application
Constant Torque, Variable Torque
Ethernet Port Included
No
Input Voltage Range
380 to 480V AC
Output Type
Analog, Discrete
With Bypass / No Bypass
No Bypass
Input Type
Analog, Discrete
Enclosure Rating
NEMA 1
Color
Black
Enclosure
Open
Output Phase AC
Three
Adjustable Acceleration Time
0.01 to 9,999 sec
Series
Altivar Machine ATV340
Maximum Output Power
1 1/2 hp
Adjustable Deceleration Time
0.01 to 9,999 sec
Output Frequency Range
0.1 to 599 Hz
Displays
None
Start/Stop Control
Programmable
Key Pad Lockout
None
Number of Outputs
(3) Analog; (8) Discrete
Brake Chopper Included
Yes
Style
Modular
Maximum Output Current
2.8 A
Application
Industrial Process and Utilities
Output Voltage Range
323V AC to 528V AC

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 1 1/2 hp, Maximum Output Current 2.8 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
