Shop All DC Permanent Magnet Motors
Leeson

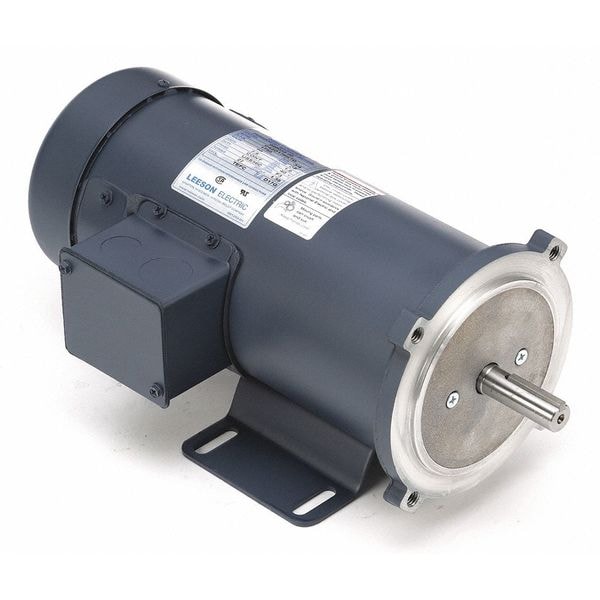

DC Permanent Magnet Motor, 7.6A, 90VDC
Mfr # 098032.00
Zoro # G7789664
product price: $522.99
/ea
Free Shipping & Returns
$522.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- HP 3/4
- Voltage 90V DC
- Nameplate RPM 1,750
- Shaft Dia. 5/8 in
- Frame 56C
Product Information
- Brand Leeson
- MFR # 098032.00
- Zoro # G7789664
- UPC # 691720001066
- Country of Origin United States
- Category DC Permanent Magnet Motors
Dimensions
Shaft Dia. | 5/8 in |
Body Dia. | 4 7/8 in |
Overall Length | 13 13/16 in |
Shaft Length | 1 7/8 in |
Length Less Shaft | 11 7/8 in |
Stud Size | 3/8"-16 |
Details
Description
DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 3/4 HP, Nameplate RPM 1,750, Voltage 90V DC, 7.6 A Full Load Amps, 56C Frame, Full Load Torque 27 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Bearings Ball, Shaft Length 1 7/8 in
Restrictions
- Hazardous material
