Shop SCHNEIDER ELECTRIC

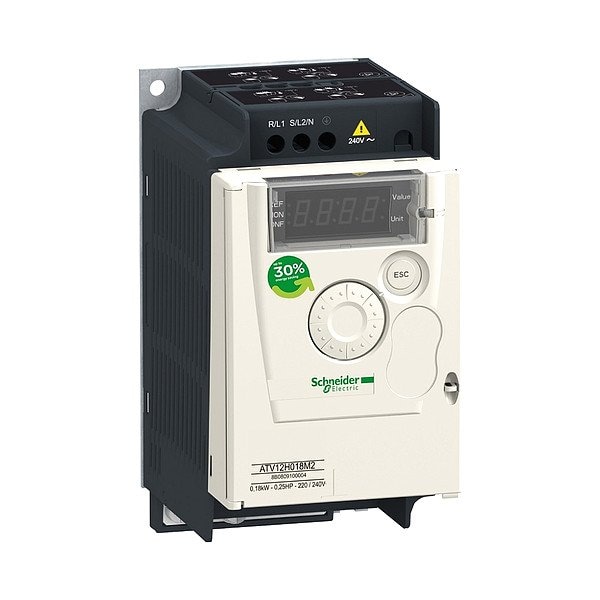

Variable Frequency Drive, 1/4 HP, 230VAC, Altivar

  • Mfr # ATV12H018M2
  • Zoro # G0719293
product price:
$
252.99
/ea
Free Shipping & Returns

Key Features

Max. HP
0.25 hp
Input Voltage
200V AC to 240V AC
Output Voltage
200V AC to 240V AC
Input Phase AC
Single
Enclosure
Open
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ATV12H018M2
Zoro #
G0719293
UPC #
785901692324
Country of Origin
Indonesia

Dimensions

Width
2.83 in
Height
5.63 in
Depth
4.02 in
Overall Depth
4 1/8 in
Overall Width
2 7/8 in
Overall Height
5 5/8 in

Details

Item
Variable Frequency Drive
Max. HP
0.25 hp
Input Voltage
200V AC to 240V AC
Output Voltage
200V AC to 240V AC
Input Phase AC
Single
Enclosure
Open
Max. Output Amps
1.4 A
Output Phase AC
Three
With Bypass / No Bypass
No Bypass
With Line Contactor / No Line Contactor
No Line Contactor
Input Frequency
60/50 Hz
Dynamic Braking
No
Output Frequency Range
0.5 to 400 Hz
Key Pad Lockout
Yes
Standards
UL, C-tick, NOM, GOST, CSA
Control Method
Keypad or Remote Keypad or Modbus
Display Type
LED
Adjustable Acceleration Time
0 to 999.9 sec
Starting Torque
170 %
Accepts Input Control Signal
Yes
For Use With
3-Phase Inverter Duty Motor
Digital Readout
Yes
Control Type
Keypad, Modbus, Remote Keypad
Adjustable Deceleration Time
0 to 999.9 sec
Displays
LED
Start/Stop Control
Programmable
Protection
Against Input Phase Loss in Three-Phase, Line Supply Overvoltage, Line Supply Undervoltage, Overcurrent Between Output Phases and Earth, Overheating Protection, Short-Circuit Between Motor phases, Thermal Motor Protection via the Drive by Continuous Calculation of I²t
Torque @ 1 Hz
120%
Brake Chopper Included
No
Input Voltage Range
200 to 240V AC
Series
Altivar 12
Number of Outputs
(1) Analog; (2) Discrete
Torque Application
Constant Torque, Variable Torque
Input Type
Analog, Digital
Enclosure Rating
NEMA 1
Number of Inputs
(2) Analog; (4) Discrete
Output Voltage Range
170V AC to 264V AC
Style
Base Plate
Output Type
Analog
Maximum Output Current
1.4 A
Maximum Output Power
1/4 hp
Color
Black
Application
Commercial Equipment Mixer, Commercial Equipment Other Application, Textile Ironing
Ethernet Port Included
No
Line Contactor Design
No Line Contactor
Keypad Lockout
Yes
NEMA Rating
NEMA 1
Output Frequency - Minimum
400 Hz
Output Horsepower
1/4 hp
Output Frequency - Maximum
0.5 Hz
Product Type
Variable Frequency Drive
IP Rating
IP20
Includes Ethernet Port
No
Number of Inputs - Analog
2
Input Phase
Single
Includes Brake Chopper
No
Bypass Design
No Bypass
Output Current - Maximum
1.4 A
Output Phase
Three
Number of Outputs - Analog
1

Description

Variable Frequency Drive, Input Voltage 200-240V AC, Input Phase AC Single, Input Frequency 60/50 Hz, Maximum Output Power 1/4 hp, Maximum Output Current 1.4 A, Output Voltage 200-240V AC, Output Phase AC Three, Output Frequency Range 0.5 to 400 Hz, Enclosure Rating NEMA 1
