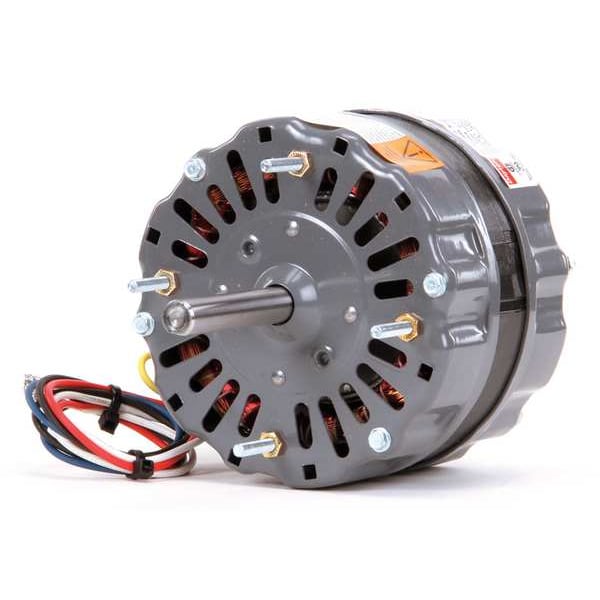

Motor, PSC, 1/8 HP, 1550 RPM, 115V, 42Y, OAO

  • Mfr # 4YU34

  • Zoro # G2421797

product price:  $200.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps
2.6 A
Motor Mounting Type
Ring/Stud
HP
1/8
Motor Application
HVAC/R
Mounting Stud Location
4/Shaft End
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4YU34
Zoro #
G2421797
UPC #
190735339206
Country of Origin
United States

Dimensions

Shaft Dia.
1/2 in
Shaft Length
2 3/4 in
Body Dia.
5 1/8 in
Stud Size
#10-32
Length Less Shaft
3 5/8 in
Bolt Circle Dia.
3 7/8 in
Bolt Circle Diameter
3 7/8 in
Frame Size
42Y
Body Diameter
5.1 in
Overall Length
6 3/8 in
Shaft Diameter
1/2 in
Mounting Stud Thread Size
#10-32
Wire Rope Length
6 3/8 in

Details

Full Load Amps
2.6 A
Motor Mounting Type
Ring/Stud
HP
1/8
Motor Application
HVAC/R
Mounting Stud Location
4/Shaft End
Includes
Mounted 5 MFD 370VAC Capacitor
Phase
Single
Motor Design
Permanent Split Capacitor
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Mounting Stud Pattern
2 3/4 in x 2 3/4 in
Motor Shaft Design
Flat
Ins. Class
A
Application
Fan/Blower
Max. Ambient Temp.
40 Degrees C
Motor Service Factor
1
Motor Bearings
Ball
Voltage
115V AC
Motor Mounting Position
All Angle
Standards
CSA Certified (LR43381), CSA Certified Motor, UL Recognized (E62788/E62862)
Nameplate RPM
1,550; 1,300; 1,050
Motor Shaft Rotation
CCWSE
No. of Speeds
3
Capacitor Required
Capacitor Included
Motor Thermal Protection
Auto
RPM Range
1,050-1,550
Motor Enclosure Design
Open Air-Over
Hz
60 Hz
Motor Sub Application
Direct Drive
Item
Fan and Blower Motor
Duty
Continuous
Replacement For
4YC66, 4YC67, 5DVP6, 5DVP7
Frame
42Y
Usable @ 200V
Not Usable at 200V
Mounting Holes
(4) #10-32
Duty Cycle
Continuous
Stud Quantity
4
Number of Shafts
1
Usable @ 208V
Not Usable at 208V
Number of Speeds
3
Mounting
Stud
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Air Over
Product Type
Fan and Blower Motor
Sub Application
Ventilator
Frequency
60 Hz
Frame Material
Steel
Shaft Design
Flat
Nameplate Service Factor @ 60 Hz
1
Insulation Class
A
Drive Type
Direct Drive
Full Load Current @ 60 Hz
2.6 A
Mounting Position
All Angle
Bearing Type
Ball

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/8 hp HP, Nameplate RPM 1,550/1,300/1,050 RPM, No. of Speeds 3, Voltage 115V AC, 2.6 A Full Load Amps, 42Y Frame, 60 Hz Hz, Replacement For 4YC66, 4YC67, 5DVP6, 5DVP7, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE
