  11. Variable Frequency Drive, 1/4 HP, 230VAC, Altivar

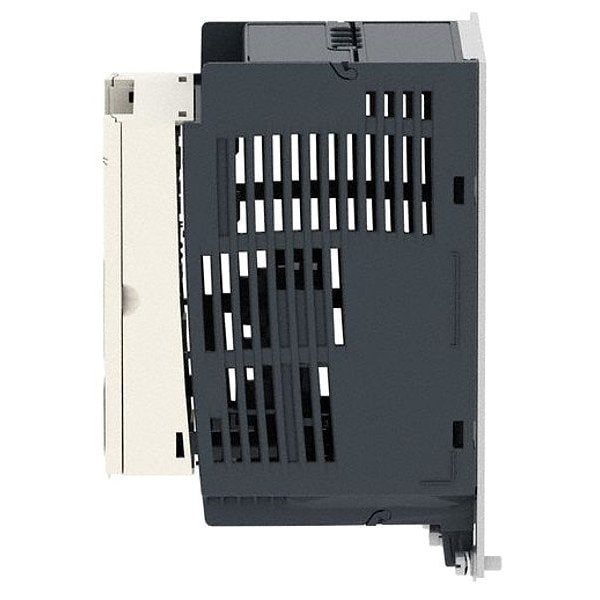

Schneider Electric Variable Frequency Drive, 1/4 HP, 230VAC, Altivar ATV12H018M3 - main

Variable Frequency Drive, 1/4 HP, 230VAC, Altivar

  • Mfr # ATV12H018M3

  • Zoro # G1770404

product price: $238.99
/ea
Free Shipping & Returns

Key Features

Max. HP
0.25 hp
Input Voltage
200 to 240V AC
Output Voltage
200 to 240V AC
Input Phase AC
Three
Enclosure
Open
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV12H018M3
Zoro #
G1770404
UPC #
785901682097
Country of Origin
Indonesia

Dimensions

Depth
4.02 in
Width
2.83 in
Height
5.63 in
Overall Height
5 5/8 in
Overall Depth
4 1/8 in
Overall Width
2 7/8 in

Details

Item
Variable Speed Drive
Max. HP
0.25 hp
Input Voltage
200 to 240V AC
Output Voltage
200 to 240V AC
Input Phase AC
Three
Enclosure
Open
Max. Output Amps
1.4 A
Output Phase AC
Three
With Bypass / No Bypass
No Bypass
With Line Contactor / No Line Contactor
No Line Contactor
For Use With
3-Phase Inverter Duty Motor
Displays
LED
Digital Readout
Yes
Adjustable Acceleration Time
0 to 999.9 sec
Key Pad Lockout
Yes
Input Frequency
50/60 Hz
Display Type
LED
Protection
Against Input Phase Loss in Three-Phase, Line Supply Overvoltage, Line Supply Undervoltage, Overcurrent Between Output Phases and Earth, Overheating Protection, Short-Circuit Between Motor phases, Thermal Motor Protection via the Drive by Continuous Calculation of I²t
Dynamic Braking
No
Starting Torque
150% to 170%
Start/Stop Control
Programmable
Control Method
Keypad or Remote Keypad or Modbus
Torque @ 1 Hz
120%
Standards
UL, C-tick, NOM, GOST, CSA
Output Frequency Range
0.5 to 400 Hz
Accepts Input Control Signal
Yes
Adjustable Deceleration Time
0 to 999.9 sec
Control Type
Keypad, Modbus, Remote Keypad
Maximum Output Power
1/4 hp
Input Voltage Range
200 to 240V AC
Output Type
Analog, Discrete
Application
Commercial Equipment Mixer, Commercial Equipment Other Application, Textile Ironing
Color
Black
Number of Inputs
(2) Analog; (4) Discrete
Number of Outputs
(1) Analog; (2) Discrete
Output Voltage Range
85V AC to 132V AC
Maximum Output Current
1.4 A
Torque Application
Constant Torque, Variable Torque
Series
Altivar 12
Style
Base Plate
Brake Chopper Included
No
Input Type
Analog, Discrete
Ethernet Port Included
No
Enclosure Rating
NEMA 1

Description

Variable Speed Drive, Input Voltage 200 to 240V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 1/4 hp, Maximum Output Current 1.4 A, Output Voltage 200 to 240V AC, Output Phase AC Three, Output Frequency Range 0.5 to 400 Hz, Enclosure Rating NEMA 1
