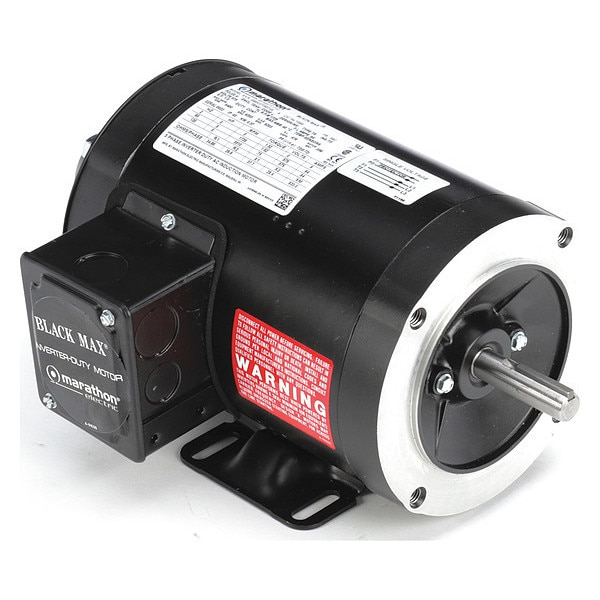

Vector Motor, 1/2 HP, 1.52 lb-ft, 575V
Mfr # 056H17T5311
Zoro # G5499952
product price:Â $536.99
/ea
Free Shipping & Returns
Key Features
Motor Design
3-Phase
HP
1/2
Torque
1.52 ft-lb
Nameplate RPM
1,725
Speed Range
1,000:1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
056H17T5311
Zoro #
G5499952
UPC #
-
Country of Origin
Multiple
Dimensions
Shaft Dia.
5/8 in
Overall Length
13 1/2 in
Shaft Length
2 1/16 in
Encoder Shaft Dimensions
5/8 in x 1 3/4 in
Description
Vector Motor, Three Phase, Motor Design Three-Phase, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 575V AC, Full Load Amps 0.65 A, 56C Frame, Torque 1.52 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
