  11. Variable Frequency Drive, 15 hp, 480V AC

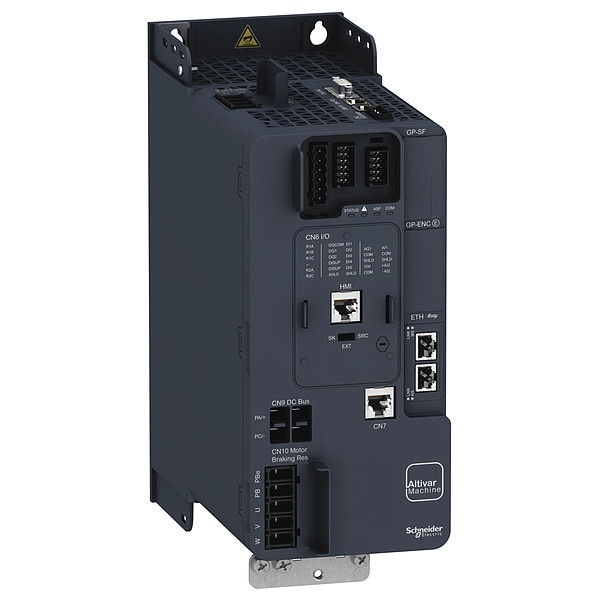

Schneider Electric Variable Frequency Drive, 15 hp, 480V AC ATV340U75N4E - main

Variable Frequency Drive, 15 hp, 480V AC

  • Mfr # ATV340U75N4E

  • Zoro # G3569834

product price: $2,065.99
/ea
Free Shipping & Returns

Key Features

Max. Output Amps
24.8 A, 26.4 A, 29.7 A, 32.4 A
Control Method
Variable Torque Standard, Optimized Torque Mode, Constant Torque Standard
Max. HP
10 hp, 15 hp
Input Frequency
50/60 Hz
Display Type
None
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV340U75N4E
Zoro #
G3569834
UPC #
785901726012
Country of Origin
Indonesia

Dimensions

Height
10.63 in
Depth
9.21 in
Width
4.33 in
Overall Depth
9 1/4 in
Overall Width
4 3/8 in
Overall Height
10 5/8 in

Details

Max. Output Amps
24.8 A, 26.4 A, 29.7 A, 32.4 A
Control Method
Variable Torque Standard, Optimized Torque Mode, Constant Torque Standard
Max. HP
10 hp, 15 hp
Input Frequency
50/60 Hz
Display Type
None
Standards
EN/IEC 61800-3, Environment 1 Category C2 EN/IEC 61800-3, Environment 2 Category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 618000-5-1
Output Voltage
480V AC
Dynamic Braking
No
Protection
Break on the control circuit, DC Bus overvoltage, Exceeding limit speed, Input supply loss, Line supply overvoltage, Line supply undervoltage, Motor phase loss, Output overcurrent between motor phase and earth, Output overcurrent between motor phases, Overcurrent, Overheating, Safe torque off, Short-circuit between motor phase and earth, Short-circuit between motor phases, Thermal protection
Item
Variable Speed Drive
Digital Readout
No
Input Phase AC
Three
With Line Contactor / No Line Contactor
With Line Contactor
Input Voltage
480V AC
For Use With
Three-phase supply voltage: 380...480 V 50/60 Hz
Brake Chopper Included
Yes
Application
Industrial Process and Utilities
With Bypass / No Bypass
No Bypass
Enclosure Rating
NEMA 1
Start/Stop Control
Programmable
Maximum Output Current
24 A
Number of Inputs
(2) Analog; (1) Discrete; (3) Relay
Key Pad Lockout
None
Series
Altivar Machine ATV340
Output Phase AC
Three
Maximum Output Power
15 hp
Adjustable Acceleration Time
0.01 to 9,999 sec
Style
Ethernet
Output Frequency Range
0.1 to 599 Hz
Output Voltage Range
323V AC to 528V AC
Displays
None
Ethernet Port Included
Yes
Color
Black
Input Type
Analog, Discrete
Output Type
Analog, Discrete
Adjustable Deceleration Time
0.01 to 9,999 sec
Number of Outputs
(3) Analog; (8) Discrete
Torque Application
Constant Torque, Variable Torque
Enclosure
Open
Input Voltage Range
380 to 480V AC

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 15 hp, Maximum Output Current 24 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
